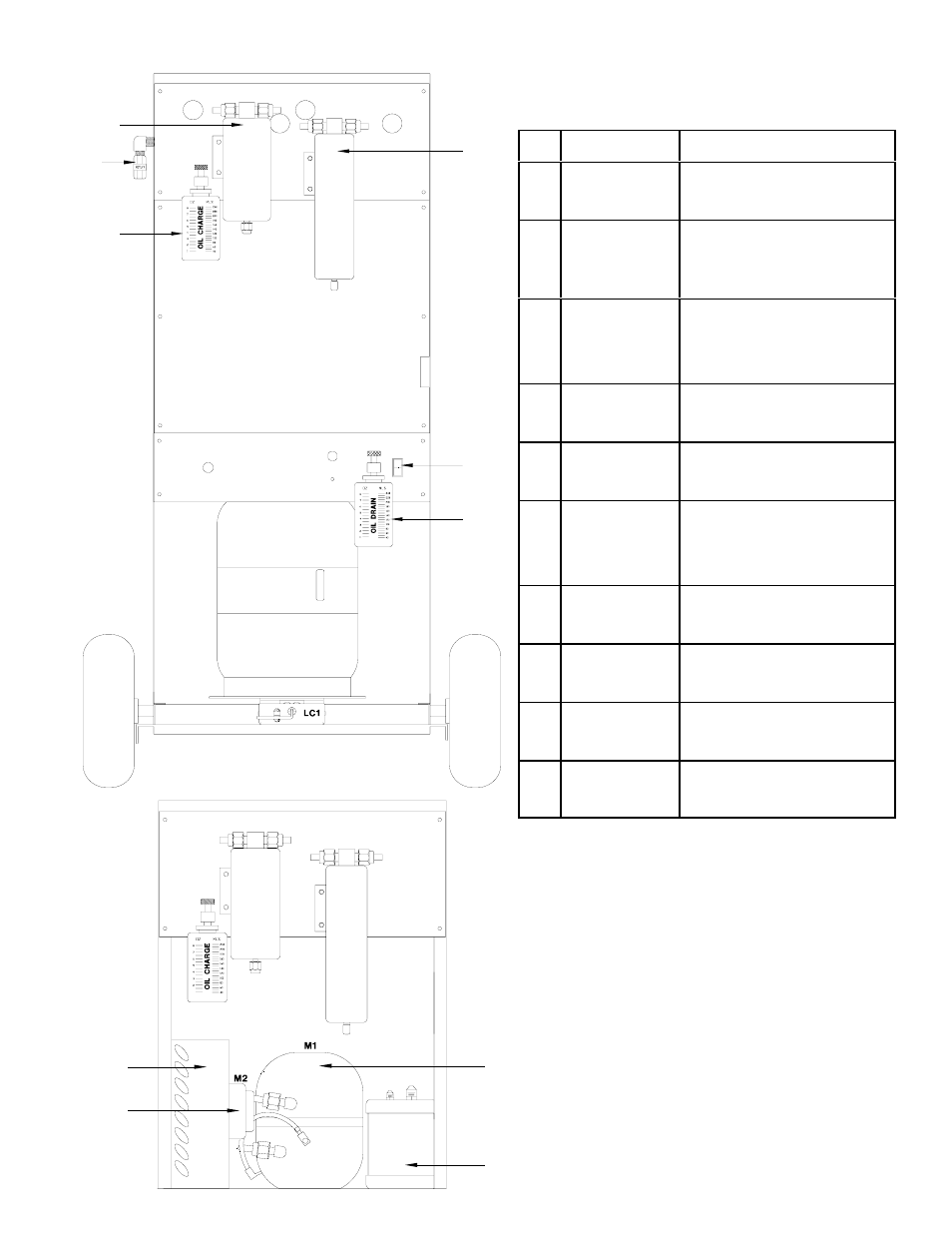

PARTS IDENTIFICATION - Rear View
P/N
DESCRIPTION
1
026-80069-00
Combo Filter 3/8 Flare
(Short)
2
026-80240-00
In-Line Hose Filter (R12)
3
026-80208-00
026-80208-01
Oil Charge Bottle with Valve
Oil Charge Bottle only
4
026-80077-00
Combo Filter 3/8 Flare
(Long)
5
024-80035-00
Rocker Switch SPST
Momentary On - Non-lighted
6
026-80207-00
026-80207-01
Oil Drain Bottle with Valve
Oil Drain Bottle only
7
360-81439-00
Condenser Assembly
8
360-80416-00
Fan Assembly
9
360-81670-01
Compressor Assembly
120V
10
026-80070-00
Accumulator Assembly
Rear View - Cover Off
