MAHLE RTI RHS730E - Manual (Page 18)

Page 17

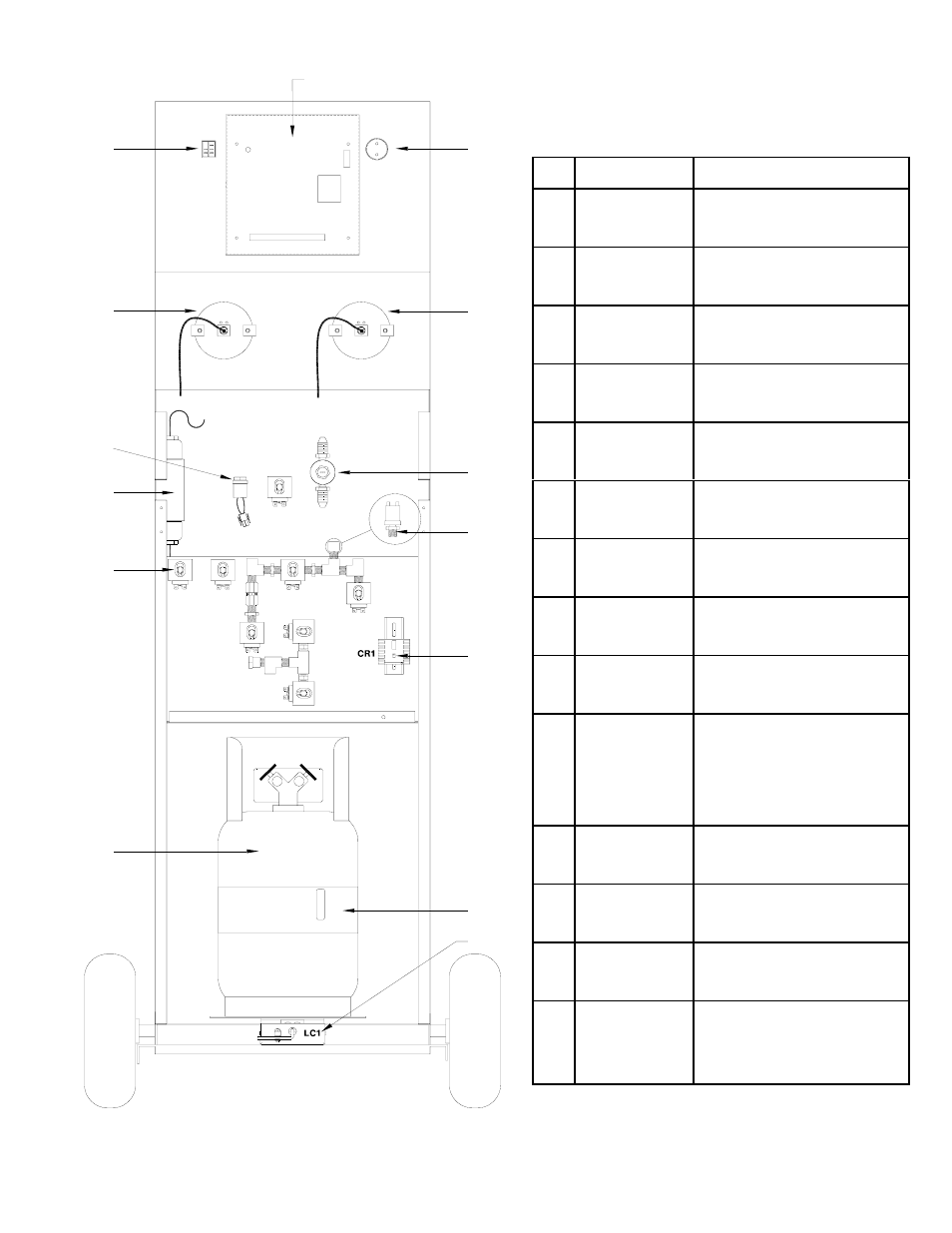

PARTS IDENTIFICATION - Front View
P/N DESCRIPTION
1 024-80104-01 Circuit Board 730E
120V
2 024-80040-00 Rocker Switch SPDT
(on-on) Amber (125V)
3 026-80065-03 Gauge 30 InHg - 120 PSIG
1/4 MFL 3.5 in.
4 360-81307-00 High Pressure Switch
120V
5 360-80369-02 D/P Switch R134A
6 360-81292-00 Solenoid MOV Sub-Assy
120V
7 360-81447-00 DOT Cylinder Assy
30 lbs
8 031-80003-00 Load Cell Assy
9 360-81426-01 Heater Belt Assy
10 024-80037-00
025-80314-03
Contactor ½ HP (120V)
3NC - 1NC
Varistor
11 022-80013-00 Low Pressure Switch
3 PSIG - 8 InHg SPDT
12 022-80110-00 Expansion Valve
3/8 MFL x 3/8 MFL
13 026-80071-03 Gauge 0 - 500 PSIG
1/4 MFL 3.5 In.
14 025-80127-00
025-80191-00
Bulb Bayonet Base (120V)
Yellow Lens Assy
1
2 14
3 13
4
5
6
7
12
11
10
9
8
