MYDATA MY200LX - Manual (Page 3)

3410
2970
864
475
1355
293
1580
935
579
899
1446
1869
2229
POWER CONNECTOR
2690
2250
475
1220
995
579
864
293 935
1446
1869
899
POWER CONNECTOR
2229

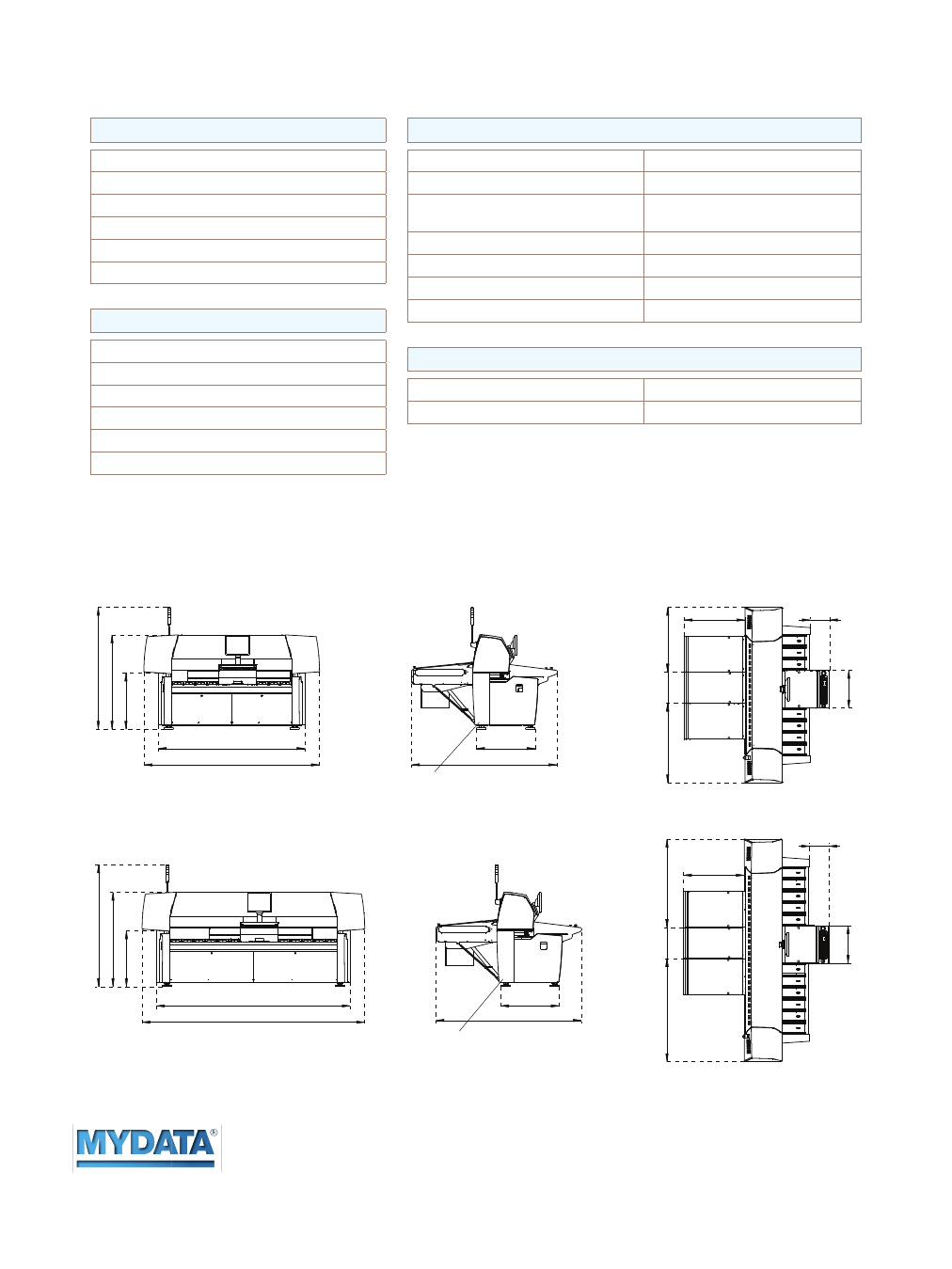

diMeNSioNS
MY200LX-14 t3
MY200LX-10 t3
in mm.
P-001-0264 r
ev 0000 / November 2013
iNStaLLatioN reQuireMeNtS
Power requirements three phase ac 6.6 kVa (3 x 2.2 kVa)
Power consumption 1.5 kW (average)
Voltages 3 x 200, 210, 220, 230, 240, 250
+-10%, Y or delta
air Supply No air required
Noise 65 dBa
air temperature +18 to +35 °c (65 to 95 °f)
air humidity < 95% rh non condensing
MiSceLLaNeouS
MachiNe Weight (1)
MY200LX-10 1 400 kg (3 100 lbs)
MY200LX-14 1 700 kg (3 700 lbs)
1) total machine weight excluding magazines.
SoftWare
SoftWare ModuLeS (oPtioNaL)
Shared databases
Line Mode
PcB id (2d barcode)
electrical Measurement Log
Pre-Pick inspection
Barcode Software
offLiNe SoftWare tooLS (oPtioNaL)
data Preparation – MYcam
Machine Programming – MYcenter
optimization and Scheduling – MYPlan
inventory Management and Kitting – MYcenter
traceability – MYtrace
Line automation – flowLine
