Connecting the Video Cord to View a Video/Picture from iPad/iPhone/iPod
When viewing a video/picture from iPad/iPhone/iPod on your TV, use a component video
cord (not supplied) to connect the COMPONENT VIDEO OUT jack on the unit and the compo-
nent video input on your TV.
• After you have connected the unit, change the video input mode on your TV. For
details, also refer to the instruction manual for your TV.

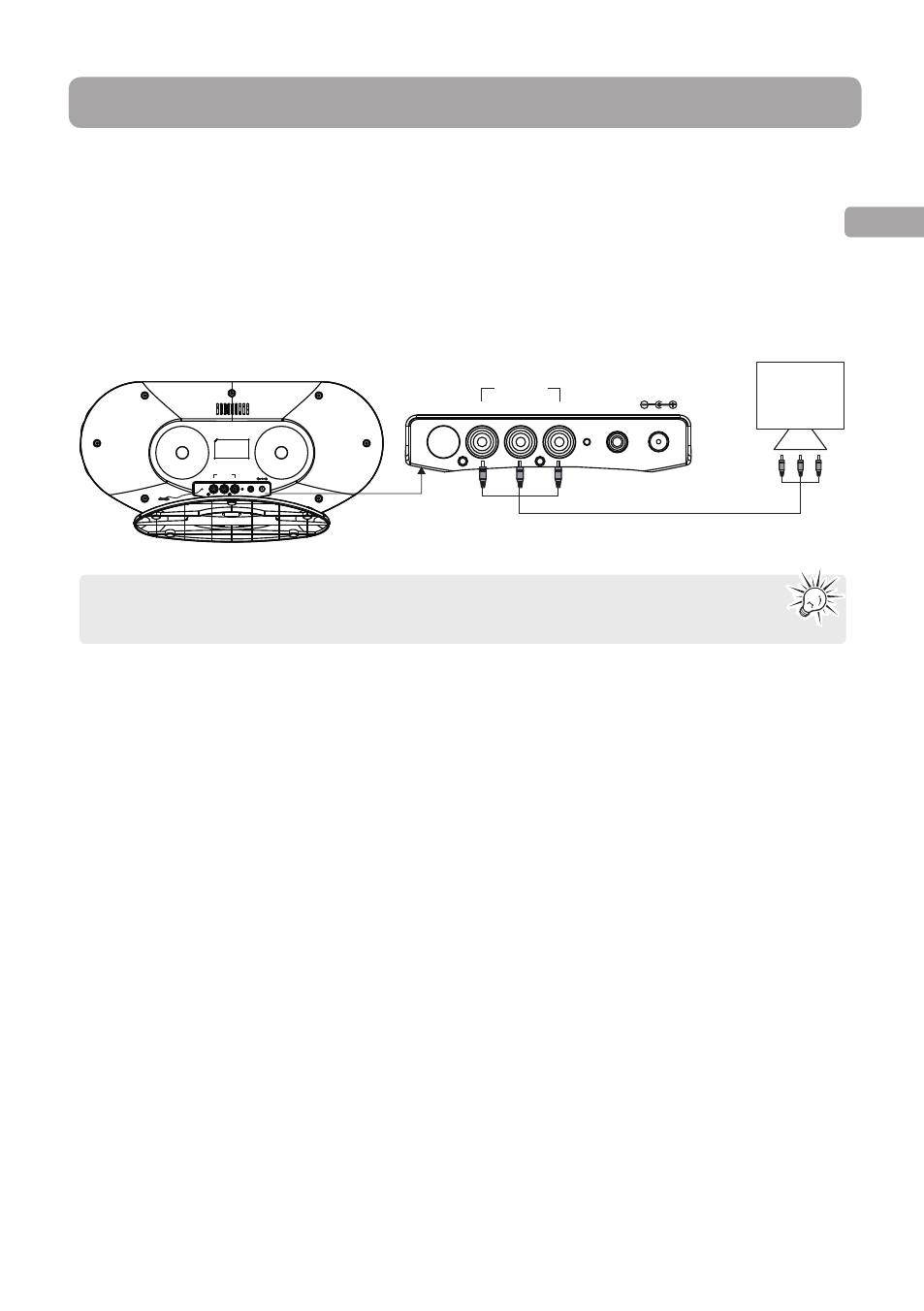

The below diagram shows the connection options available.
TV
To Component input of TV
Cable (not supplied)
Pr Pb Y
COMPONENT VIDEO OUT VIDEO OUT AUX IN
DC IN 10V
Pr Pb Y
COMPONENT
VIDEO OUT
VIDEO OUT AUX IN
DC IN 10V
FM ANT.
Consult your iPod documentation for details on how to enable video output on
your model of iPad/iPhone/iPod.
Play videos on TV
1. Click the Videos icon in the iPod menu.
2. Select a video fi le and start playback.
3. Press VIDEO OUT button on the remote control to switch video output to your TV.
Remarks:
• If you are using iPod classic, iPod nano 3G/4G/5G, press MENU to change the video
setting to TV output on your iPod before you switch the video output to your TV.
• Component video output to television at 480i or 576i resolution is supported by
• iPhone
• iPod touch
• Component video output to television at 480p or 576p resolution is supported by
• iPad, iPad 2
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPod touch 2nd ,3rd and 4th generation
• iPod nano 3rd, 4th ,5th and 6th generation
• iPod classic
Video operation
