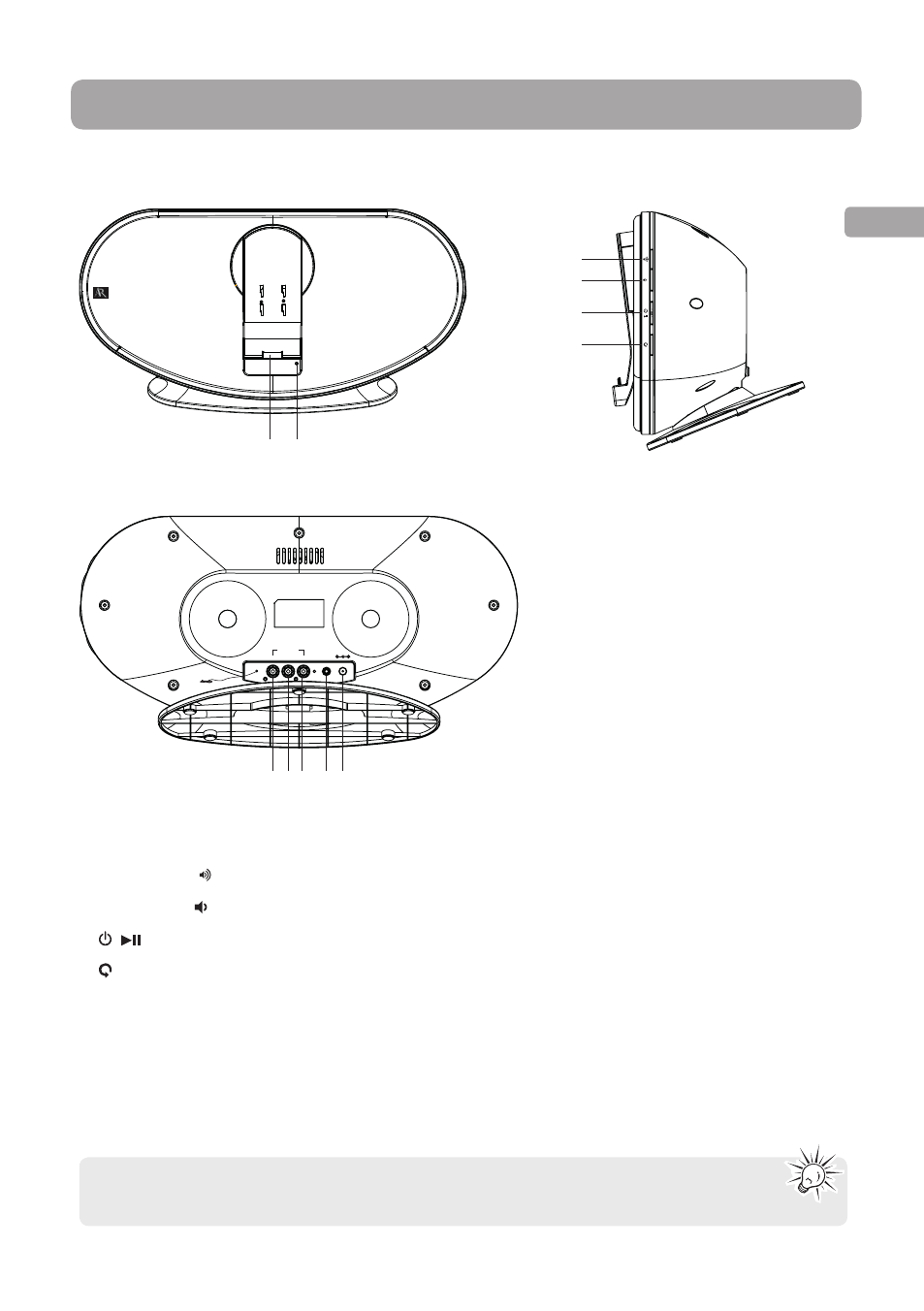

General controls
Front view Side view
MOTORIZED DRIVE
1 2
3
4
5
6
Back view
Pr Y Pb
COMPONENT VIDEO OUT
VIDEO OUT AUX IN
DC IN 10V
7 8 9 10 11
FM ANT.
1. Universal Dock for iPad/iPhone/iPod*
2. Power Indicator
3. VOLUME(+) Button
4. VOLUME(-) Button
5. / POWER ON/OFF/PLAY/PAUSE Button
6. ROTATE Button
7. COMPONENT VIDEO OUT Y Jack
8. COMPONENT VIDEO OUT Pb Jack
9. COMPONENT VIDEO OUT Pr Jack
10. AUX IN Jack
11. DC IN Jack (10 V DC, 3600 mA)
*DO NOT manually force the rotating mechanism for the universal dock. Instead,
ONLY use the ROTATE button on either the main unit or the remote control.
