ENGLISH

ENGLISH

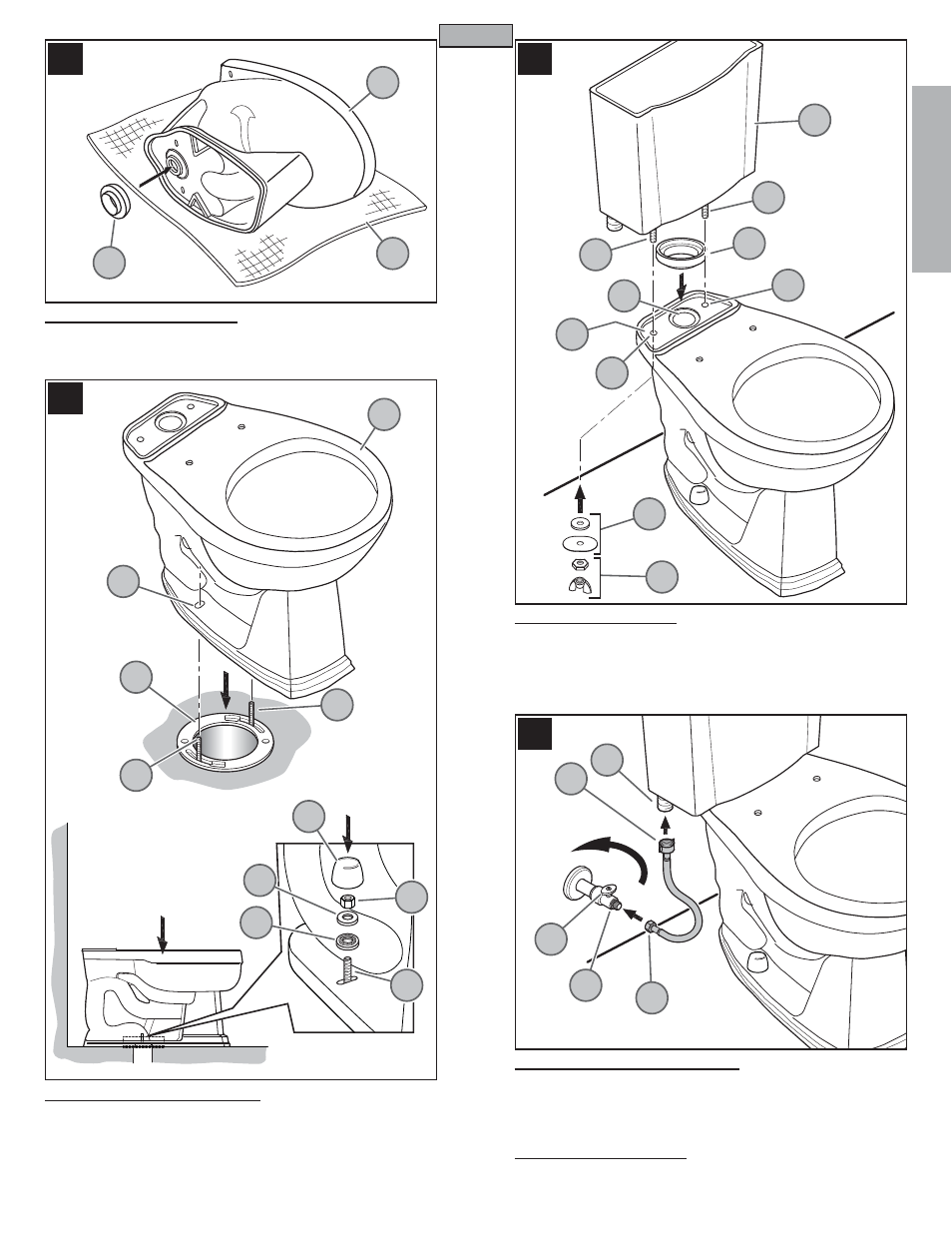

8 WAX SEAL INSTALLATION

Carefully turn

Toilet’s Base (8A)

on it’s side on top of a Secure Padded Surface (8B).

Place Wax Seal (8C) fi rmly into the outlet of the toilet bowl.

9 TOILET BOWL INSTALLATION

A. Place

Toilet’s Base

(9A) onto Waste Outlet Hole (9B) with Tee Bolts (9C) passing

through Fixing Holes (9D).
B.

Place the Plastic Washer (9E) and Metal Washer (9F)

onto Tee Bolts

(9C). Secure

by tightening the Mounting Nuts (9G) on to the

Tee

Bolts.

Do not over tighten!
Snap on Plastic Caps (9H) over bolts and nut as shown.

10 TANK INSTALLATION

The tank comes pre-installed with fl ushing mechanism. Insert Rubber Gasket (10A) into
Water Inlet Hole (10B) on top of Bowl Shelf (10C). Place Tank (10D) on top of Bowl Shelf
(10C) aligning Brass Bolts (10E) with corresponding Shelf Holes (10F). From underneath
bowl, screw Locking Nuts (10G) and Washer (10H) onto Brass Bolts (10E) and tighten.
Do not over tighten!

11 WATER SUPPLY CONNECTION

Use FTFE plumbers tape on threaded fi ttings according to manufacturer’s instructions.
Attach Large Hose Nut (11C) to Fill Valve Shank (11D) located on rear of Toilet Bowl.
Connect Short Hose Nut (11A) onto Water Supply Valve (11B). Turn on Water Supply
Valve (11B) by turning Handle (11E) counterclockwise.

12 INTERNAL PLUMBING

Tank comes pre-installed with fl ushing mechanism. (Some adjustments may be
necessary).

11D

11C

11A

11B

11E

10C

10A

10H

10G

10F

10E

10B

10F

10E

10D

OPEN
