12
13
14
15
16

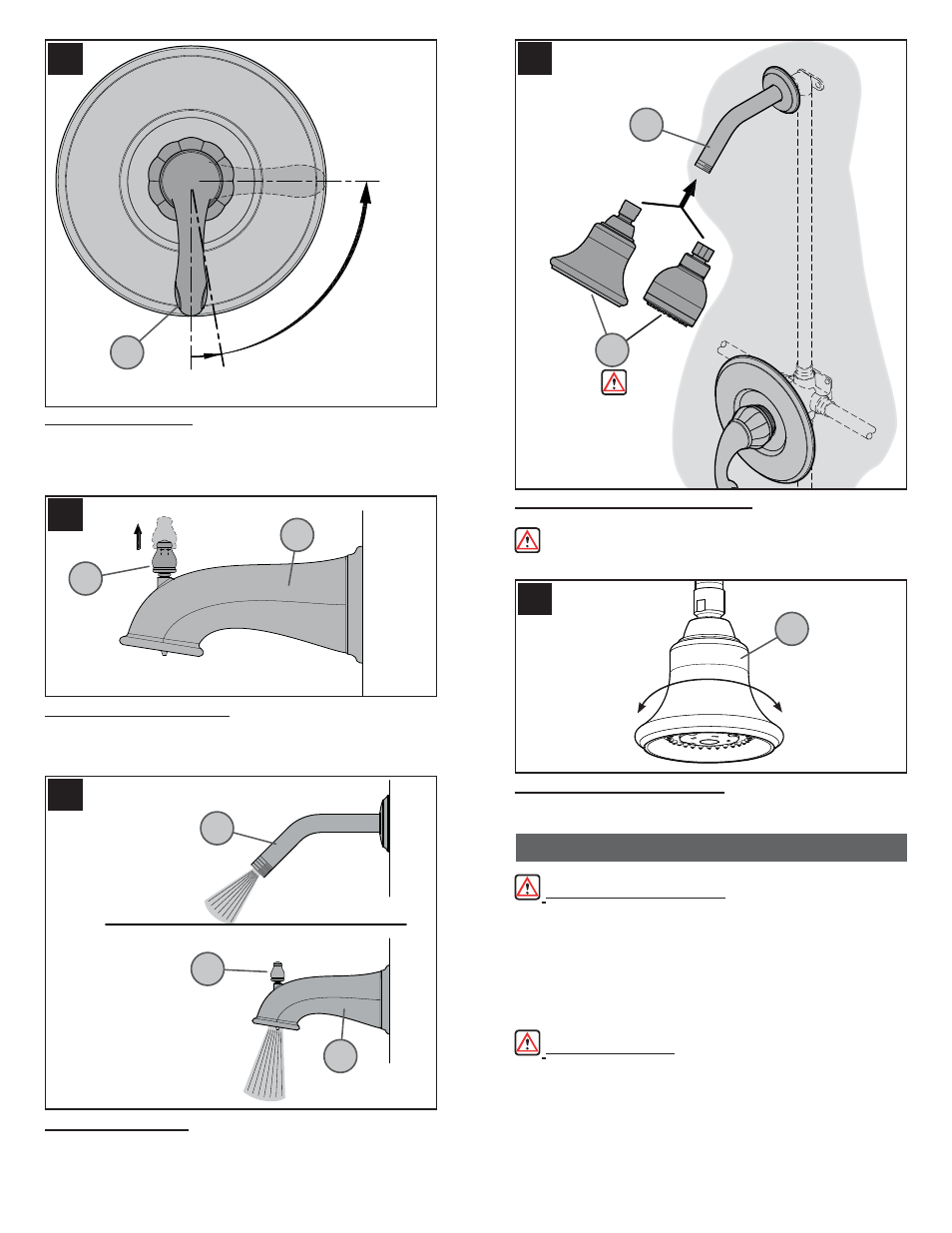

13 TUB SPOUT FUNCTION
When the valve is turned on, water normaly fl ows through the Tub Spout (13A).
To activate the shower, turn valve on and pull the Knob (13B) up. Hold on until
water fl ows continiously from the shower arm.
15 SHOWER HEAD INSTALLATION
Thread Shower Head (15A) onto Shower Arm (15B).
Make sure Shower Head (15A) is securely tightened to Shower Arm
(15B).
CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfi ster Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp cloth to clean
and shine. Use of polish, detergents, abrasive cleaners, organic solvents or
acid may cause damage. Use of other than a soft damp cloth will nullify
our warranty!
Special Trim:
Trim products which contain Porcelain or other similar substance are not
acceptable for public areas or Commercial use. Installation of Said Trim is
at Users Risk!
12 VALVE FUNCTION
By rotating the Lever Handle (12A) slightly counterclockwise, the valve will
be fully activated to the “COLD” position. The water temperature can be
increased by continuing to rotate the Lever Handle (12A) in a counterclockwise
direction.
14 FINAL FLUSHING
For fi nal fl ushing, turn valve on and allow water to run through the Tub Spout
(14A) for several minutes. Pull Spout Knob (14B) up to allow water to run through
Shower Arm (14C). Allow water to run for several minutes untill all foreign mater
clears the line.
UP
For
Shower
MAINTENANCE & CARE
16 SHOWER HEAD FUNCTION
To adjust spray, turn Outer Shell (16A) to a desired spray pattern (for multi-
function shower head only).
4
FULL HOT
FULL COLD
CLOSED
OPEN
12A 15A
15B
14A
14B
14C
13A
13B
16A
OR
