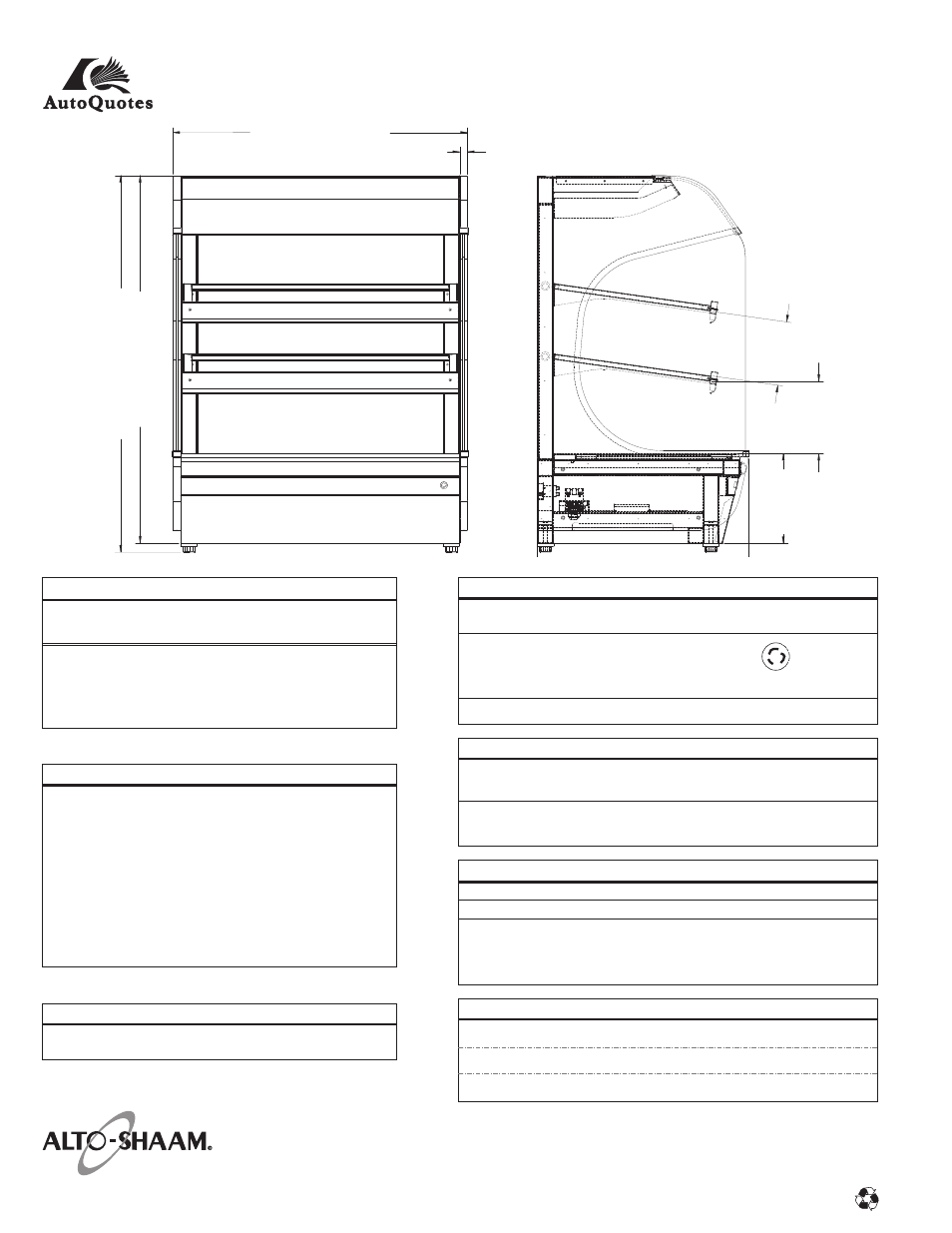

HSM-38/3S
HEATED SHELF MERCHANDISER
38-1/16" (967mm)
1"
(25mm)
27-5/16"
(694mm)
11
-5/8"
(295mm)
9-5
/16"
(23
6mm)
8-1
/4"
(210mm)
48-
11
/16
" (
1236mm)
47-1/2"
(1207mm)
P R O D U C T C A PA C I T Y
108 lb (49 kg)
MAXIMUM
36 lb (16 kg) MAXIMUM PER SHELF
EACH SHELF
Eight (8) chicken boats with dome cover
O P T I O N S & A C C E S S O R I E S
■ ■
Cabinet 5002703
■ ■
Casters, 3" (76mm)
CONTACT FACTORY
■ ■
Legs, 6" (152mm) 5205
W E I G H T
NET 335 lb (152 kg)
SHIP
595 lb (270 kg)
CRATE DIMENSIONS
: (
H X W X D
)
65"
X
46"
X
36"
(1651mm x 1168mm x 914mm)
E L E C T R I C A L
VOLTAGE PHASE CYCLE / HZ AMPS kW CORD SUPPLIED
WITHOUT PLUG
208-240 1 50/60 12.5 3.0
NEMA
6-20P
20A-250V
MUST BE ON ITS OWN
20
AMP CIRCUIT RECOMMENDED
230 1 50/60 11.75 2.7 CORD , NO PLUG
E X T E R I O R D I M E N S I O N S :
H x W x D
48-11/16" x 38-1/16" x 27-5/16"
(1236mm x 967mm x 694mm)
Top two shelves: 32-7/8" x 20" (835mm x 508mm)
– spaced at 7-3/8" (187mm) centers
Bottom shelf: 33-3/8" x 23" (848mm x 584mm)
– spaced at 7-7/8" (200mm) centers
C L E A R A N C E R E Q U I R E M E N T S
4" (102mm) at back of unit
W x D
I N S TA L L AT I O N R E Q U I R E M E N T S
Unit must be installed level. It must not be
installed in any area where it may be affected by
steam, grease, dripping water, high temperatures,
or any other severely adverse conditions. In
order to maintain NSF standards, stationary
models must be sealed at bottom by NSF
approved sealant, or equipped with casters,
or 4" (102mm) legs for counter top applications.
#82 - 07/08
