CAUTION: Maintenance

DISASSEMBLY

1. Replacement parts may be available at the store where you purchased

your faucet.

2. When replacement parts are not available, please write or call Price

Pfi ster Consumer Service.

3. Always turn off water and relieve pressure before working on your

faucet.

NOTE: Trim Care

Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!

1–800–PFAUCET (1–800–732–8238)

For Toll-Free Pfaucet information call
1–800–PFAUCET (1–800–732–8238)
or visit www.pricepfi ster.com

• Installation Support
• Care and Warranty Information

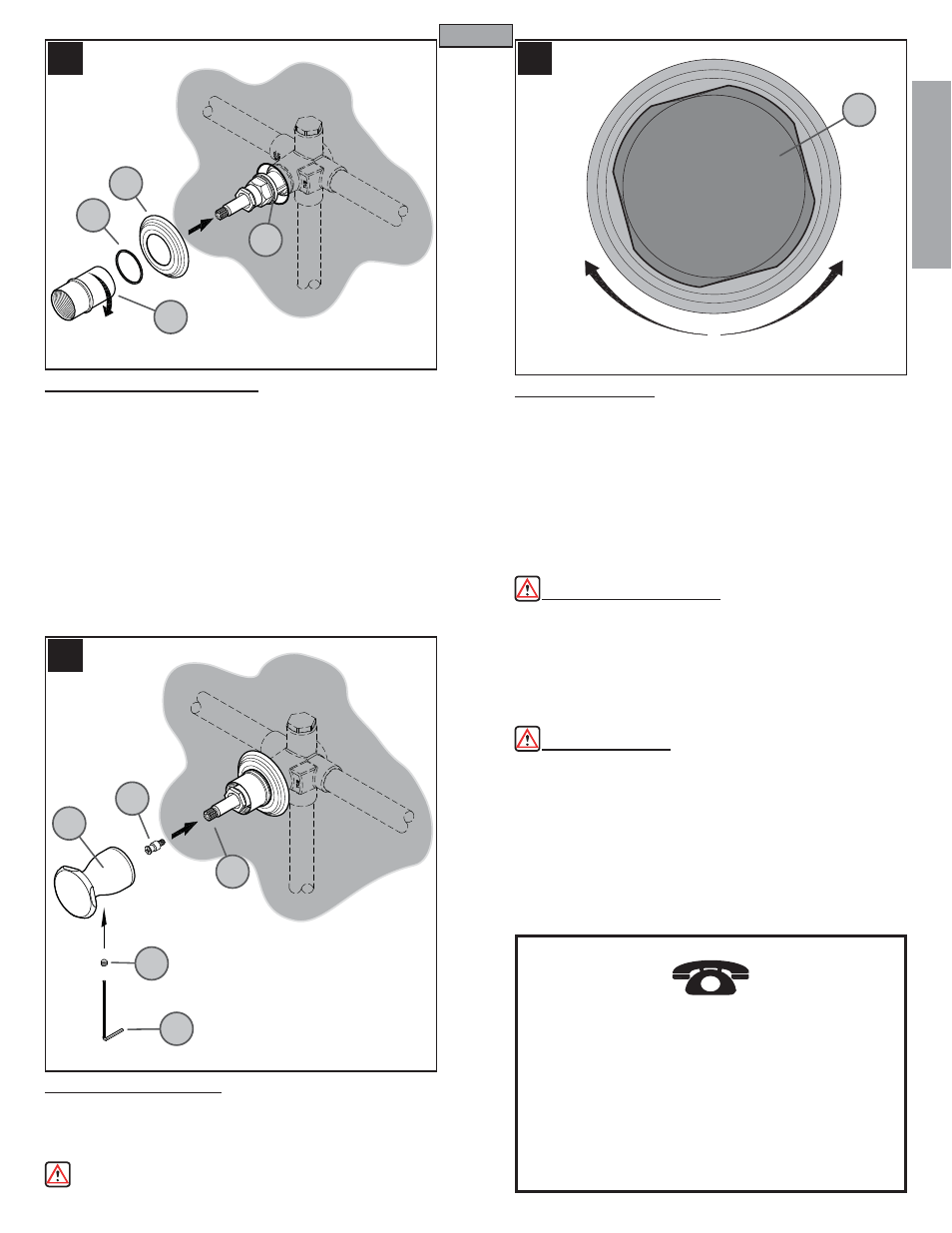

7 TRIM FLANGE ATTACHMENT
Position Flange (7A) onto Valve (7B). Place Protective Washer (7C) on the
short end of the reversible Retainer Sleeve (7D). Screw Retainer Sleeve (7D)
onto threaded section of Valve (7B). Tighten Retainer Sleeve (7D) by hand until
Flange (7A) is snug to fi nished wall surface. If the short end of the Retainer
Sleeve (7D) is too short, reverse it to use the longer end.

8 HANDLE ATTACHMENT
Screw Stem Extender (8A) onto the Valve Stem (8B). Thread Set Screw (8C)
into Handle (8D) and thread it in only three to four turns. Place Handle (8D)
onto the Stem Extender (8A) and tighten Set Screw (8C) by using the Hex
Wrench (8E) that is provided.

Make sure Set Screw (8C) is securely tightened to handle (8D).

9 VALVE FUNCTION
Rotate Handle (9A) counterclockwise to allow water to fl ow from primary outlet.
Rotate Handle (9A) clockwise to allow water to fl ow from secondary outlet.

SECONDARY

OUTLET

PRIMARY

OUTLET
