CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfi ster Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!
1–800–PFAUCET (1–800–732–8238)
For Toll-Free Pfaucet information call
1–800–PFAUCET (1–800–732–8238)
or visit www.pricepfi ster.com
• Installation Support
• Care and Warranty Information

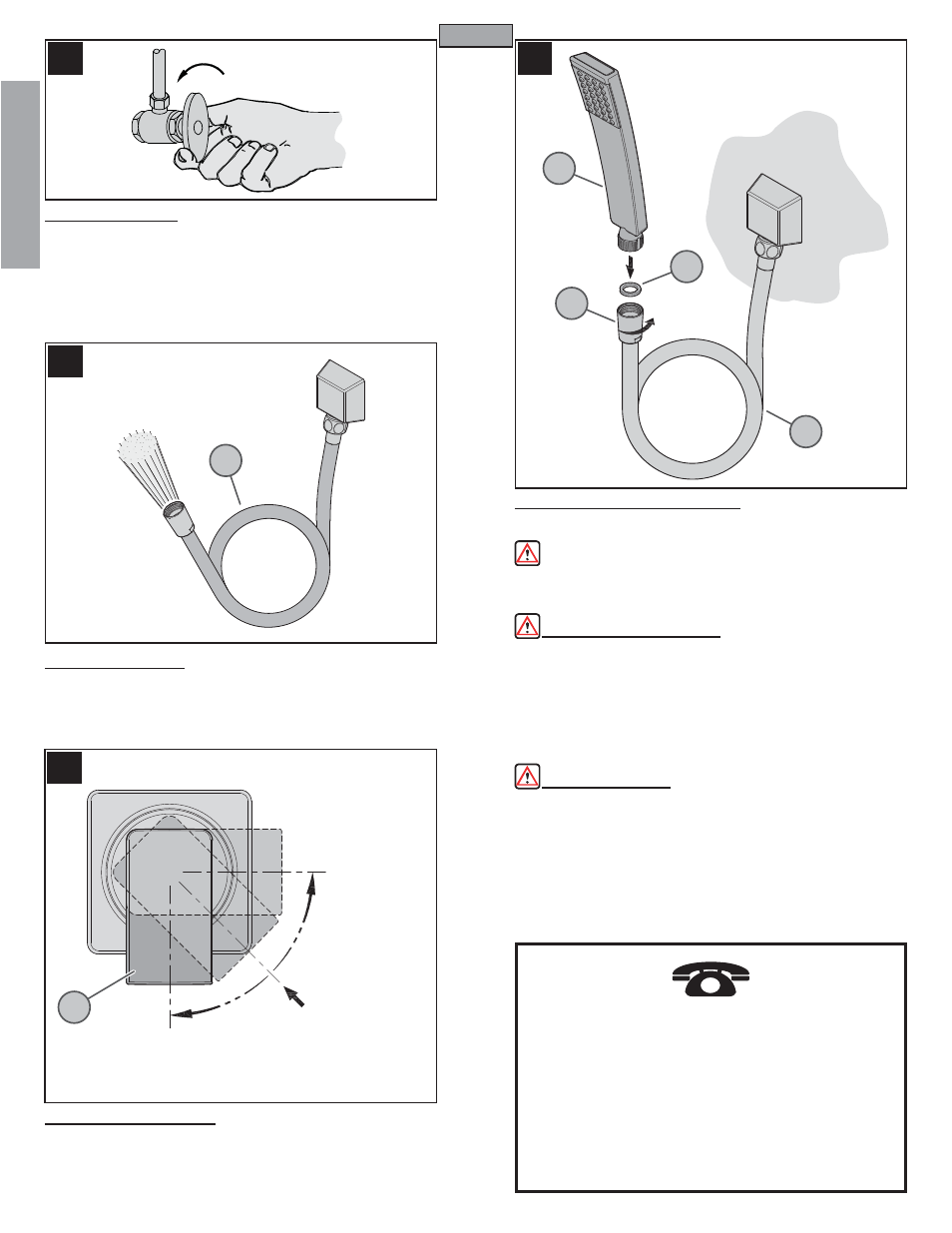

13 UNIT START UP
Turn on hot and cold water supplies, and check all connections for leaks.
14 FINAL FLUSHING
For fi nal fl ushing, turn valve on and allow water to run through the Hose (14A) for several
minutes. Allow water to run for several minutes untill all foreign matter clears the line.
15 DIVERTER FUNCTION
By having the Handle (15A) in the center position, water will fl ow from both primary
and secondary outlets. Rotate Handle (15A) clockwise to allow water to fl ow from
primary outlet. Rotate Handle (15A) counterclockwise to allow water to fl ow from
secondary outlet.
16 SHOWER ARM INSTALLATION
Place Rubber Seal (16A) inside Tapered Hose Fitting (16B). Connect Hand Shower
(16C) to Hose (16D) by turning Tapered Hose Fitting (16B) clockwise.
Make sure Hand Shower (16C) is securely tightened to Hose (16D).
4
14A
15A
16A
16B
16C
16D
