ENGLISH

ENGLISH

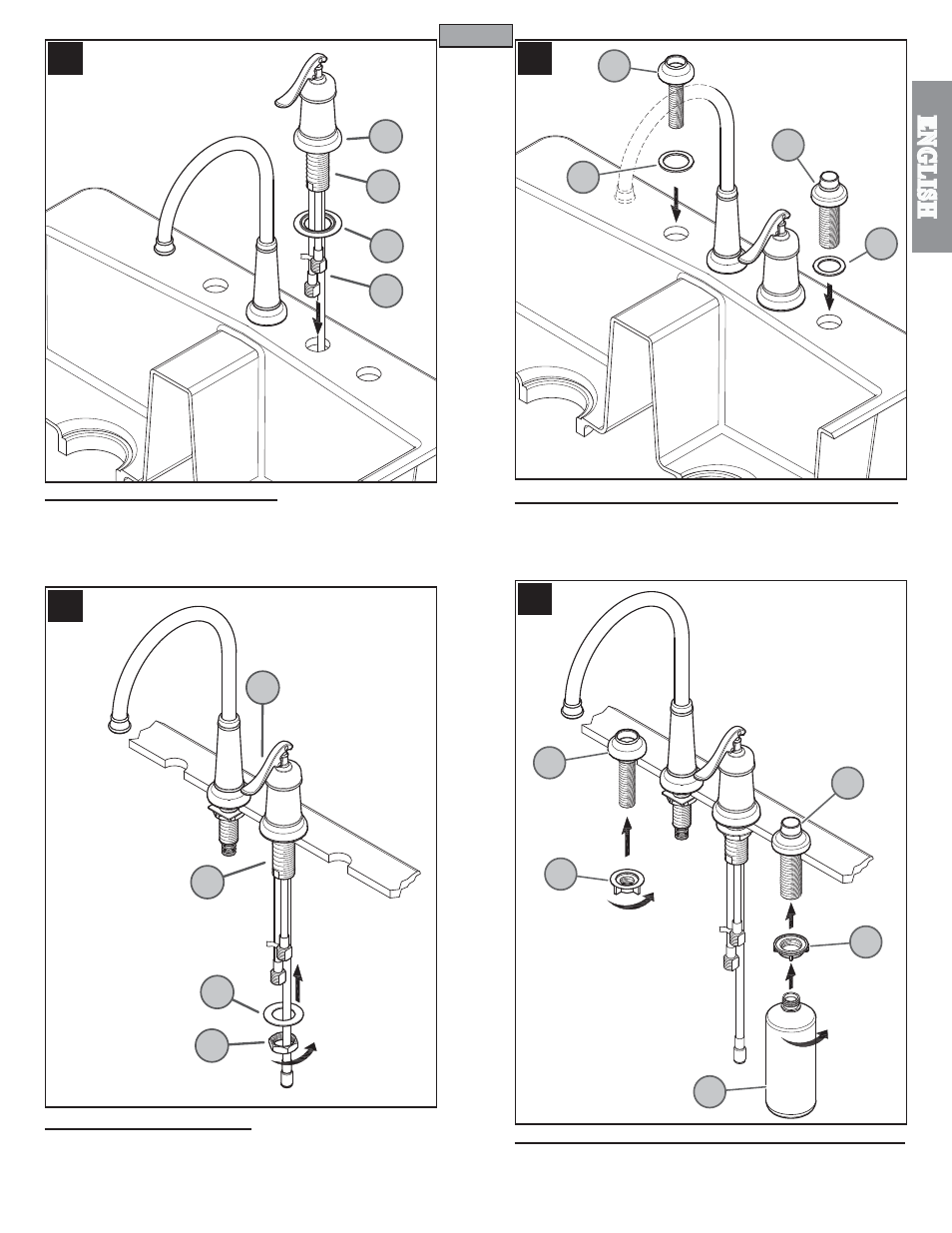

7 CONTROL BODY INSTALLATION
Apply plumber’s putty into groove on bottom of Gasket (7A) per manufacturer’s
recommendations. Place Gasket (7A) under base of Control Body (7B). From
above sink, insert Threaded Shank (7C) and Flexible Tubing (7D) through side
hole of sink.

8 SECURING CONTROL BODY
From underneath sink, place Washer (8A), and Locknut (8B) onto Mounting
Shank (8C). Make sure Handle (8D) is facing forward and it swings equally in
both directions. Tighten Locknut (8B) ﬁrmly to Shank (8C).

Caution: Do not over tighten!

9 GUIDE FLANGE & DISPENSER SHANK INSTALLATION

Insert Hose Guide (9A) through Hose Guide Gasket (9B) and insert Soap
Dispenser Shank (9C) through Foam Gasket (9D) and into the sink holes. If
desired, place a small bead of plumber’s putty to the underside of Flanges (9A &

9C). (Both Guide Flange and Dispenser Shank can be placed in either hole).

10 SECURING HOSE GUIDE & SOAP DISPENSER SHANK

From underneath sink, secure Hose Guide (10A) and Soap Dispenser Shank
(10B) by screwing Plastic Locknuts (10C) and (10D). Thread on Bottle (10E) to
Soap Dispenser Shank (10B). Hand tighten. Caution: do not over tighten!

10A

10C

10B

10D

10E
