FC5100
RF Silicon IC tuner
for all global digital TV standards
Preliminary 1 / 25 June. 2013
Future
Communications
Integrated circuit Inc.
Description
The FCI FC5100 is a highly integrated low-
power silicon tuner IC targeting on terrestrial and
cable broadcasting standard with digital RF
technology. The related applications are shown in
Table 1.
Broadband input filtering and channel filtering
have been completely integrated on-chip. This
integration enables a very compact design
requiring a small footprint, low cost, and low power
consumption.
A signal at the 75ohm RF input is filtered and
converted to a programmable Low-IF output of
4~8MHz and zero-IF output. Automatic gain
control, LO generation, and channel selectivity
functions are completely integrated on the chip,
which simplifies board-level design. All functions of
the IC can be controlled via I2C interface.
FC5100 can be available in a 5 X 5 mm
2
40-pin
QFN package.
Applications
Channel Standard
Terrestrial
ATSC
DVB-T/T2
ISDB-T
DTMB
Cable
DVB-C
OpenCable
Table 1. FC5100 Application
Package Information
Type Size
QFN 5 x 5 x 0.85 mm
Revision history
 Final version release: April, 2013
 Preliminary version release: Feb., 2012
Features
 Highly integrated digital device for
worldwide terrestrial/cable broadcasting
standard
 Tuning range from 45MHz to 1005MHz

Low power consumption: 600mW
typical ( VDD = 3.3V)
 Integrated channel filtering requiring no
external SAW filter
 On-chip 107dB gain control range with
single AGC
 On-chip broadband power detector
 Programmable IF: Able to meet all
common demodulator interface
requirements
 Programmable channel bandwidth of
1.7M to 10MHz
 I2C-compatible digital control interface

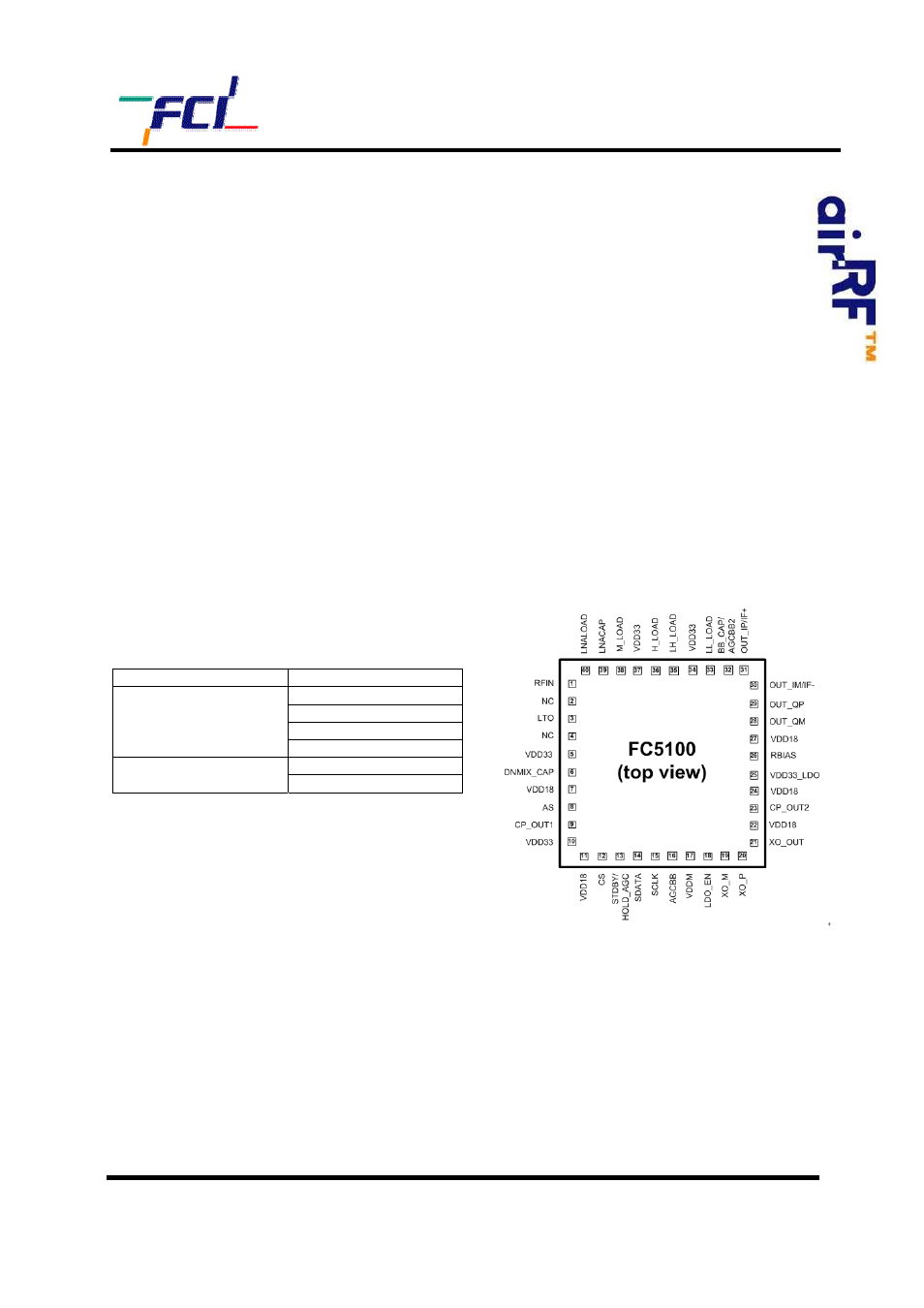

Pin Configuration
Figure 1. FC5100 Pin Configuration
