FC7850

Direct-conversion Wireless Transceiver IC for

Multi-band & Multi-mode LTE and HSPA+ applications

FCI Confidential and Proprietary Information

1 / 23

Last Update July/04/2011

These materials could be changed without prior notice.

Future
Communications
Integrated circuit Inc.

D

ESCRIPTION

FC7850 is a multi-band and multi-mode LTE and

HSPA+ RF-to-baseband transceiver IC with

receiver diversity of FCI’s zipRF™ family. FC7850

covers almost all the frequency bands from 1 to 40.

It is a highly integrated chip working with dual

supply voltage such as 1.2V and 1.8V. Because

zero-IF architecture is used for FC7850, additional

components such as bulky IF SAW filters and other

IF matching components are no longer required.

The 4-wired serial-to-parallel interface (SPI)

enables FC7850 to operate in various modes.

FC7850 contains complete multi-band receiver

diversity path such as LNA, down-conversion mixer,

channel selection filter (CSF), baseband

programmable gain amplifier (PGA), Rx VCO, Rx

PLL, and LO distribution block. FC7850 also

contains complete transmitter path such as

baseband amplifier, up-converter, RF

programmable gain amplifier (PGA), programmable

drive amplifier, Tx VCO, Tx PLL, and LO distribution

block. FC7850 is available in 7mm x 7mm BGA

package.

FC7850 support FDD/TDD duplexing method.

For TDD operation, the TX_ON hardware pin exists.

Also SPI controlled TDD operation is supported.

During TDD operation, the TX PLL and TX VCO is

deactivated and RX PLL and RX VCO is operating

as a common PLL and VCO during TX and RX

operation.

A

PPLICATIONS

-

Multi-band HSPA+ mobile phone

-

Multi-band LTE & HSPA+ mobile phone

R

EVISION

H

ISTORY

-

Preliminary version: Apr, 25, 2011.

-

Preliminary version: May, 11, 2011.

-

Preliminary version: July, 04, 2011.

F

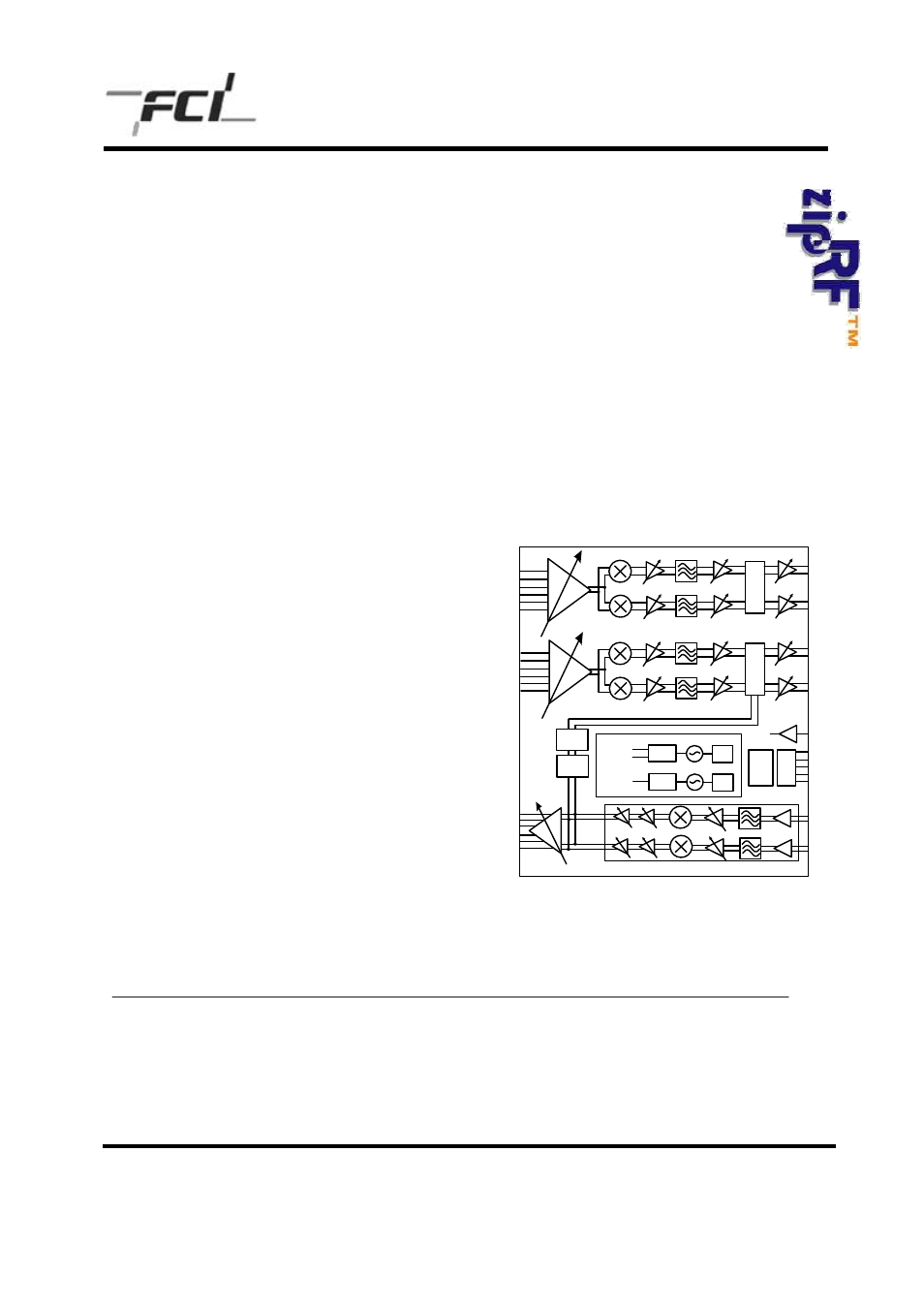

EATURES

 Complete 2x1 MIMO receiver diversity transceiver

covering multi-band (Band1~40) supporting

HSPA+/HSPA/FDD-LTE/TDD-LTE applications

 Modem assisted TX LO leakage, TX I/Q and RX

DC offset calibration

 Self-calibrated VCO and RX and TX filter cut-off

frequency

 Fully integrated low phase noise Rx and Tx

VCO and Fractional-N PLL with fine frequency

resolution

 Greater than 85-dB transmitter output power

control and greater than 95-dB receiver gain

control

 7mm x 7mm small leadless BGA package

B

LOCK

D

IAGRAM

FCI Inc.

11

th

Floor, Kins Tower, 25-1

Website: http://www.fci.co.kr

Jeongja-Dong, Bundang-Gu,

E-mail: [email protected]

Sungnam City, Gyunggi-do,

Phone: 82-31-711-6444

463-811, KOREA

Fax: 82-31-711-0313

BB

MUX

SPI

TCXO

MIX

CSF

PGA1

PGA2

PGA3

MUX

RX2_IP
RX2_IM

RX2_QP
RX2_QM

TX

LO Chain

TX

PLL

TX VCO

RX

LO Chain

RX

PLL

RX VCO

RX1_LO
RX2_LO

TX1_LO

RTX_ON
SPI_CK
SPI_rDT
SPI_wDT
SPI_ST

TCXO

RFPGA

MIX

TX_IP

TX_IM

Buffer

CSF

PGA1

TX_QP

TX_QM

TX1_LB1(d)

LPF

PGA

Envelop

Detector

TDD

Control

RFPDA

MIX

CSF

PGA1

PGA2

PGA3

MUX

RX1_IP
RX1_IM

RX1_QP
RX1_QM

FDD/TDD

TX1_LB2(d)

TX1_MB1(d)
TX1_MB2(d)
TX1_MB3(d)

TX1_HB1(d)

RX2_LB1(d)
RX2_LB2(d)

RX2_MB1(d)
RX2_MB2(d)

RX2_MB3(d)

RX2_HB1(d)

RX1_LB1(d)
RX1_LB2(d)

RX1_MB1(d)
RX1_MB2(d)
RX1_MB3(d)
RX1_HB1(d)
