Accessories
• See pages J1-J22
• Blank adapter plates on pages F61
IMPORTANT
• Disconnect switch or circuit breakers, operat-
ing handle and operating mechanism are not
furnished with enclosure and must be ordered
separately from the disconnect manufacturer
• Operator adapter plates are required with the
modular flange disconnect enclosure only and
must be purchased separately. Modular non-
disconnect enclosures do not require a opera-
tor adapter plate. See page F61 to select the
proper operator adapter for the brand and
type of disconnect being used
• Disconnect ordering information is located on
page F44
• Review space occupied by disconnect draw-
ings on page F43 and disconnect tables on
pages F51-F60 to determine if the disconnect
device you are using will fit the enclosure size
you have selected
A modular enclosure system consists of:
• A disconnect (master) enclosure
• Any quantity of slave enclosures
• Gasket kits to be used between enclosures
• End plate
• An operator adapter plate or blank adapter
plate
• Disconnect device (order from disconnect
manufacturer)
Single and Two Door Enclosures
• Left side is open (see drawings on pages F41
and F42)
• Master door hinged on left
• Master door activates mechanical interlock
which prevents slave enclosures from being
opened first
• Doors may be closed in any order
Single and Two Door Slave Enclosures
• Both sides are open (see drawings on pages
F41 and F42)
• Door cannot be opened until master enclo-
sure is opened or the interlock is defeated
W M O D S E R I E S E N C L O S U R E S
N E M A 1 2 M O D U L A R F R E E S TA N D I N G D I S C O N N E C T
F E AT U R E S - S P E C I F I C AT I O N S
UL File E64791
CSA File LL66078
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
Applications
Modular single-door and double-door Modular
free-standing enclosures are designed to be
bolted together in a variety of lengths and com-
binations to meet the customer’s specific appli-
cation. Modular disconnects enclosures are
designed to house the following flange-mounted
disconnect switches and circuit breakers:
The Wiegmann universal cutout is used in large
freestand and floorstand enclosures. Operator
Adapter Kits are required in order to install the
various manufacturers’ hardware. Note that 400
A (or greater) disconnect switches and 600 A (or
greater) circuit breakers need to use the “Large”
or “High Amp” cutout, which is provided in the
WA21ABVA kit for Allen-Bradley variable-depth
disconnect switches or the WA21ITE kit for
Siemens ITE Max-Flex
™ (and select other manu-
facturers) flex-cable devices. The “Large” or
“High Amp” cutout accepts the larger operating
handle whose mounting hole centers are 6.500-
in. apart.
Allen-Bradley
• 1494V disconnect switches with flange-mount
variable depth operating mechanisms and
1494V flange-mounted variable depth operat-
ing mechanisms for circuit breakers
• 140U flexible cable operating mechanisms and
140U molded case circuit breakers
• 1494C cable-operated disconnect switches
with flange-mount handles
• 194RC cable-operated flange-mount handles
for use with the NFPA 79 compliant 194R IEC
rotary disconnect switches
Allen-Bradley 1494V-R1, -R2 and -W2 operating
handles and Allen-Bradley 1494F disconnect
devices or 1494D circuit breaker operators will
NOT fit these enclosures.
• ABB Controls flange-mounted variable
depth operating mechanisms for disconnect
switches and circuit breakers
• Eaton Cutler-Hammer Type C361 discon-
nect switches and operating mechanisms,
and Type C371 circuit breaker operating
mechanisms. Also Type SM safety handle
mechanisms and Flex Shaft ™ handle oper-
ators for circuit breakers
• General Electric Type STDA flange han-
dles and variable depth operating mecha-
nisms for disconnect switches and circuit
breakers. Also Spectra Flex
™ cable opera-
tors for circuit breakers
• Siemens ITE Max-Flex ™ flange-mounted
variable depth operating handles for dis-
connect switches and circuit breakers
• Schneider Square D ® disconnect switches
and circuit breakers used with Class 9422
flange-mounted variable depth operating
mechanisms or cable mechanisms
These enclosures will not receive
Schneider Square D
® Class 9422 bracket-
mounted disconnect devices or Class
9422TG1 or TG2 devices.
Construction
• Bodies and doors fabricated from 10 ga. steel
• Removable 10-gauge back panels are includ-
ed and mounted on collar studs
• Continuously welded seams ground smooth
• Body stiffeners are provided for extra rigidity
• Door and side openings are flanged to pro-
vide extra strength and smooth edges
• Heavy duty lifting eyes and provisions for fluo-
rescent lighting are provided
• Heavy gauge continuous hinges
• Grounding provisions provided
• 3-point padlocking handle on all doors
• Doors are supplied with a poured-in-place
polyurethane gasket
• Print pocket is provided
• Panel supports
• Mechanical interlocks come standard on each
enclosure. Parts required to connect interlock sys-
tem between adjacent enclosures are provided
Finish
• ANSI 61 gray polyester powder inside and out
over phosphatized surfaces
• Back panels are white polyester powder over
phosphatized surfaces

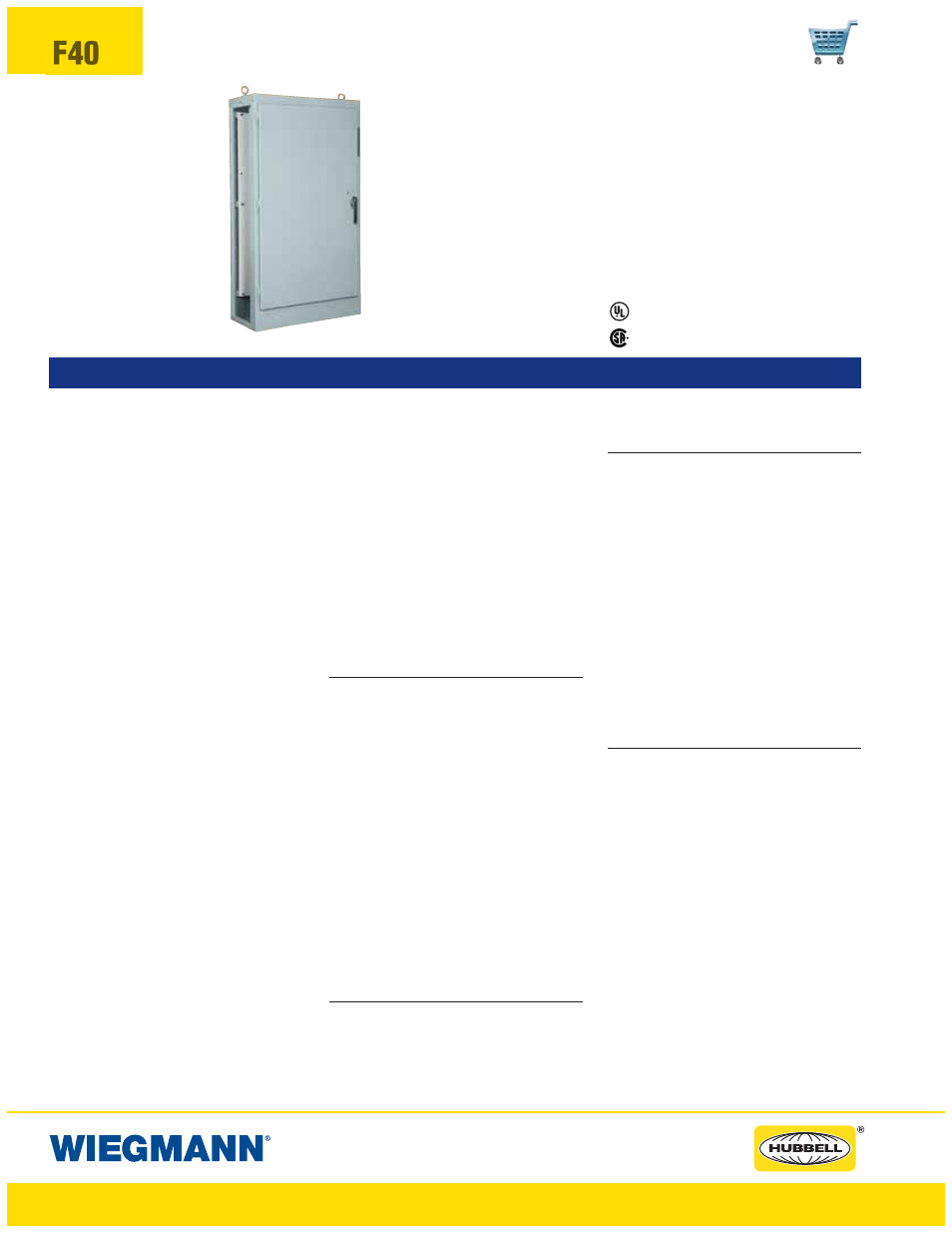

WMOD72X4018U
F40
Industry Standards
UL 508, Type 12
CSA Certified, Type 12
NEMA/EEMAC Type 12
