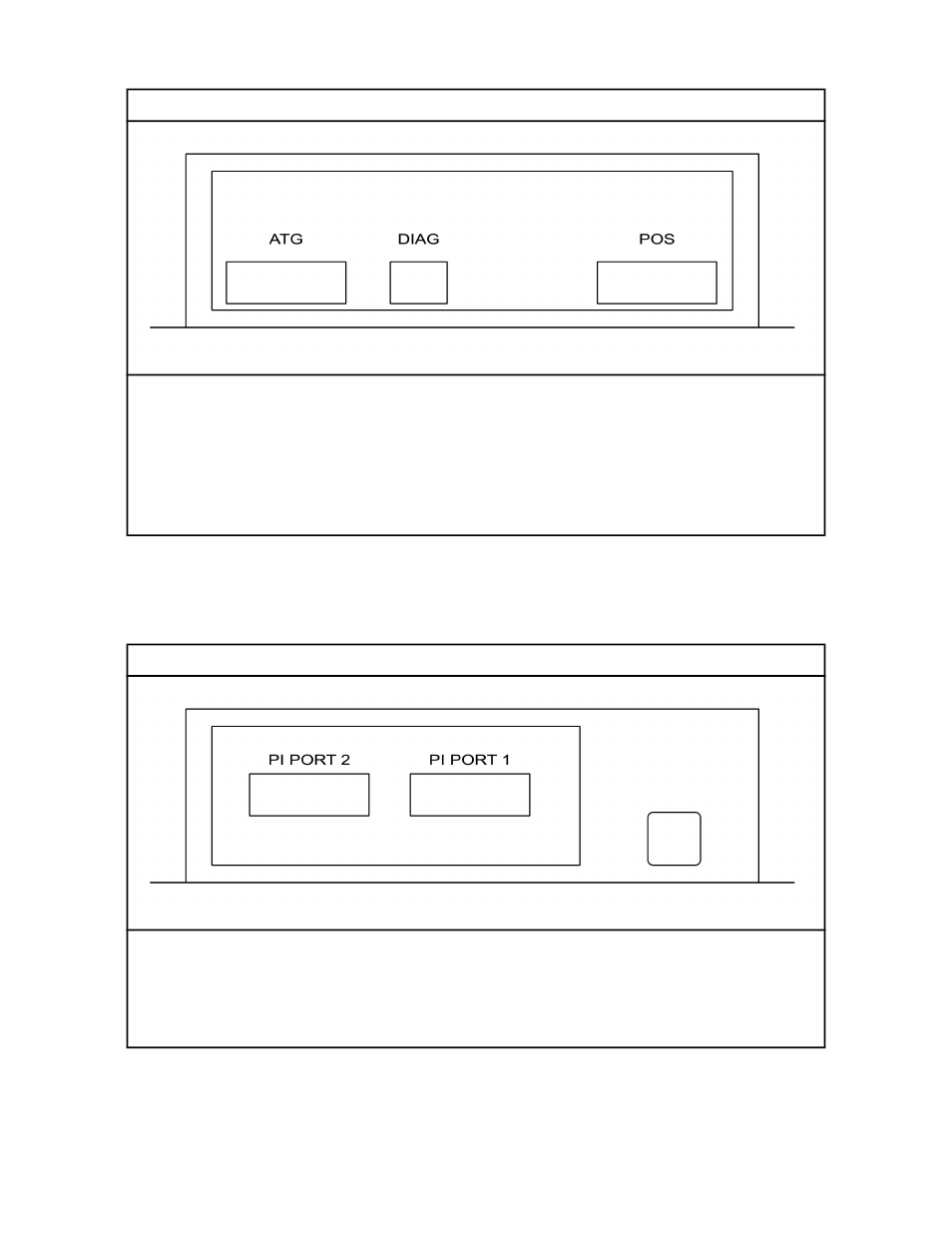

Diagram: Omega JR Front Panel View
POS 1
POS 2
The DIAG port uses a USB connection to access the built-in diagnostics section of
the Omega JR. For more information regarding the diagnostics, refer to the
Diagnostics section of this manual.
Diagram: Omega JR Rear Panel View
PI PORT 1 is used for fueling positions 1-16 which corresponds with Dispenser
Interface 1 (Channel 1) in the Omega JR software.
PI PORT 2 is used for fueling positions 17-32 which corresponds with Dispenser
Interface 2 (Channel 2) in the Omega JR software.
