Figure 3, Figure 2 – American Audio MCD-810 User Manual
Page 9
T AP
B O P
S G L
C T N
TIME
M
2
3
4
1
T A P
B O P
S G L
C TN
T IME
M
2
3
4
1
FOLDER
TRACK
M
TOTALREMAIN
S
F
PITCH
AUTO BPM
CD MP3
CUE
RELOOP
SINGLE
AUTO CUE
FOLDER
TRACK
M
TOTALREMAIN
S
F
PITCH
AUTOBPM
CD MP3
CUE
RELOOP
SINGLE
AUTO CUE
GENERAL FUNCTIONS AND CONTROLS

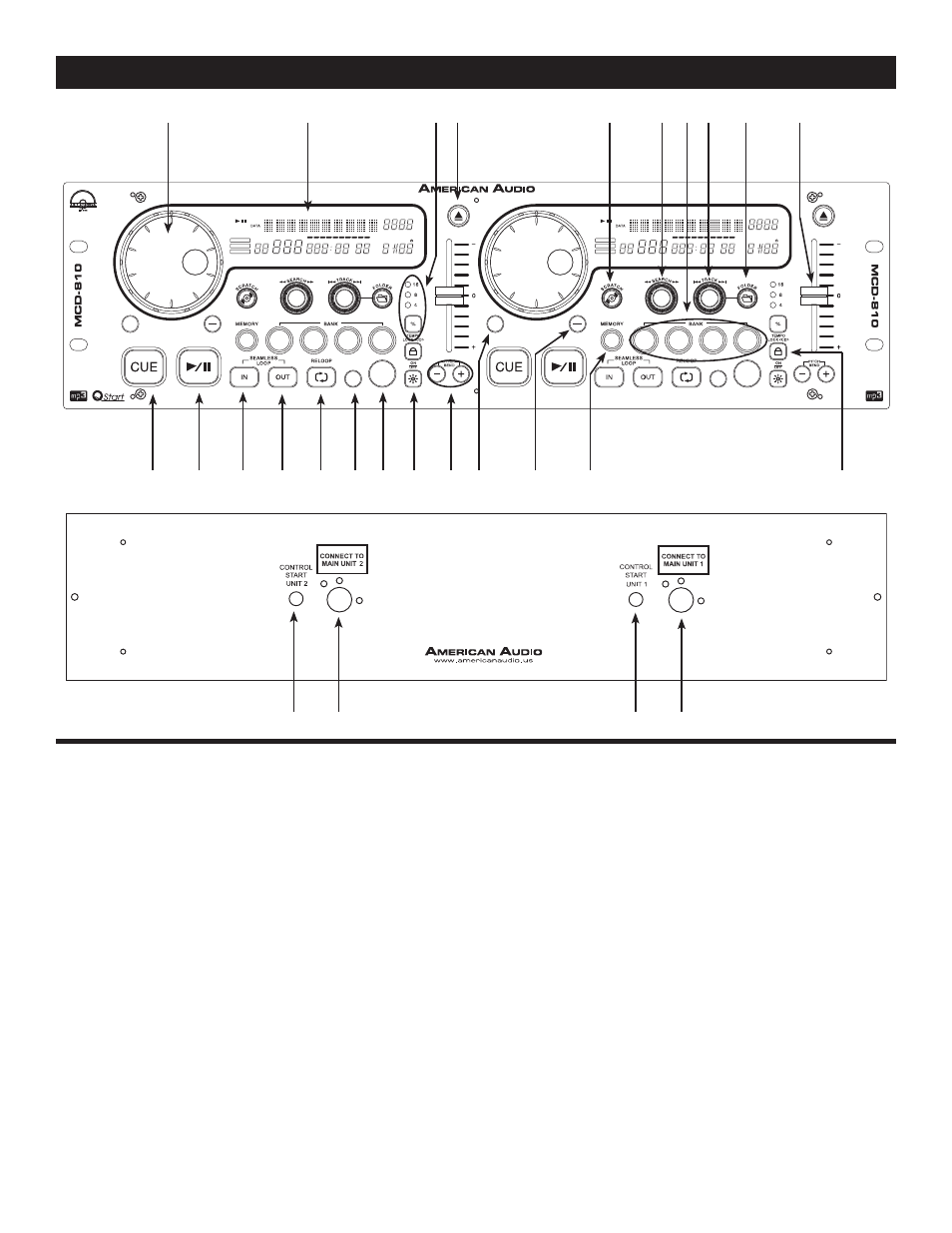

A. CONTROLLER UNIT (FIGURE 3)
1. JOG WHEEL - This wheel has three func-
tions;
A. The wheel works as a pitch bend during
Playback. Turning the wheel clockwise can
increase the pitch percentage up to 100%,
and turning the wheel in the counter-clockwise
direction can decrease the pitch percentage
down to -100%. The pitch bend will be deter-
mined on how long you turn the jog wheel
continuously.
B. The jog wheel will also control the scratch
effect, when the scratch effect is active.
C. The jog wheel is also used to edit your
seamless loop. See page 20 for more
details.
2. LCD DISPLAY - This high quality LCD display
indicates all the functions, as they are occurring.
This display is viewable at several comfortable
angles (see page 8). The display ICONS will be
explained on page 14.
3. PITCH PERCENTAGE SELECTOR- Choose
from pitch percentages of 4%, 8%, 16%, and
100%. See page 24 for more details.
4. EJECT FUNCTION - Pressing this will eject
the CD. The eject function will only when the unit
is in cue mode, this is to prevent accidentally
ejecting the disc when in play mode.
5. SCRATCH BUTTON - This button is used to
activate and deactivate the Scratch effect.
6. SEARCH KNOB - The search function has
four forward and four reverse speed positions
allowing you to quickly scan through tracks. The
©
American Audio
®
- www.americanaudio.us - MCD-810™ Instruction Manual Page 9
Figure 3
1
3
11
12
13
14
15
16
17
18
19
20
21
22
23
2
24
25
26
27
10
9
8
7
6
5
4
Figure 2
