• Model V3 Metallic Bolted
Performance
V3 - 3” Clamped Pump – Metallic Center
PTFE FITTED
Flow Rate
Adjustable to . . . . . . 0-180 gpm (681.4 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 3" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 3" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . 1" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .13' (5.2 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .31' (9.8 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 3/8" (9.5 mm)
Max Noise Level . . . . . . . . . . . . . 93 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . 115 lbs. (52.21 kg)
Cast Iron. . . . . . . . . . . . . 210 lbs. (95.34 kg)
Stainless Steel . . . . . . . . 210 lbs. (95.34 kg)
V3 - 3” Clamped Pump – Metallic Center
RUBBER FITTED
Flow Rate
Adjustable to . . . . . . 0-220 gpm (832.8 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 3" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 3" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . 1" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .16' (4.9 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .31' (9.4 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 3/8" (9.5 mm)
Max Noise Level . . . . . . . . . . . . . 94 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . 115 lbs. (52.21 kg)
Cast Iron. . . . . . . . . . . . . 210 lbs. (95.34 kg)
Stainless Steel . . . . . . . . 210 lbs. (95.34 kg)
NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient conditions. The use of other
materials and varying hydraulic conditions may result in deviations in excess of 5%.
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at ambient conditions. The use of
other materials and varying hydraulic conditions may result in deviations in excess of 5%.

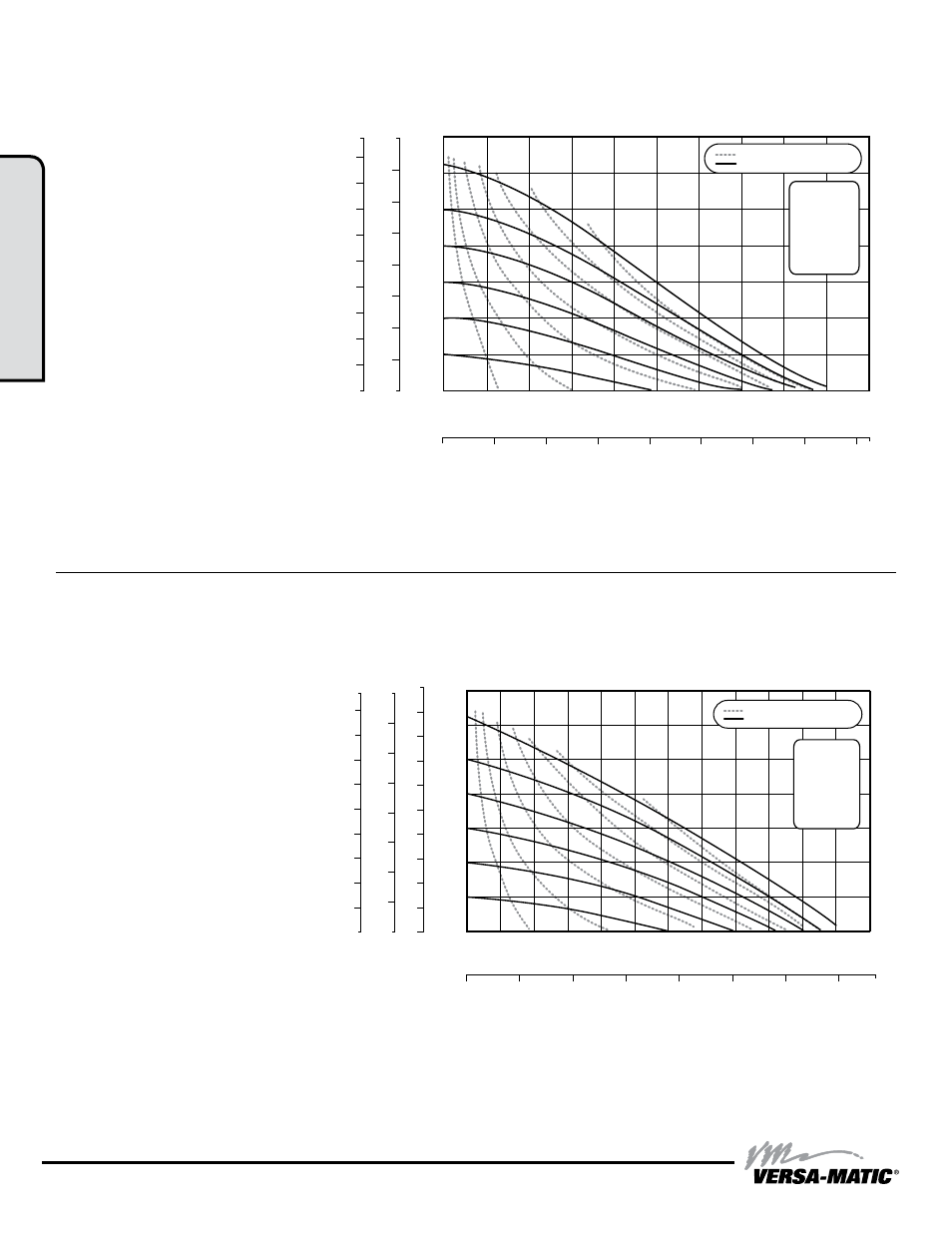

Discharge Head in PSI
0
270
180
90
360
450
540
630
720
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 0.96 Gal. (3.6 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
40
68
60
102
80
136
100
170
120
204
0
20
20
10 40 60
80
100
120
40
60
80
100
120
140
160
180
200
Meters Feet
0
0
40
80
120
160
200
240
280
10
20
30
40
50
60
80
90
70
Discharge Head in PSI
0
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 1.42 Gal. (5.4 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
40
68
60
102
80
136
100
170
120
204
0
20
20
10
40 60
80
100
120
40
60
80
100
120
140 160
180
200
220
240
120
240
360
480
600
720
840
Meters Feet
0
0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
1: PUMP
SPECS
