Dimensional drawings, V4 cast iron clamped, Pump specs – Versa-Matic 1 1/4 V Series Clamped Metallic (V4) User Manual
Page 9: Warren rupp inc, Model v4 metallic bolted, Dimensions in inches (mm dimensions in brackets), Versamatic
v4mdlAsm-rev0314
www
.
versamatic
.
com
Model V4 Metallic Bolted •
6
V4 Cast Iron Clamped

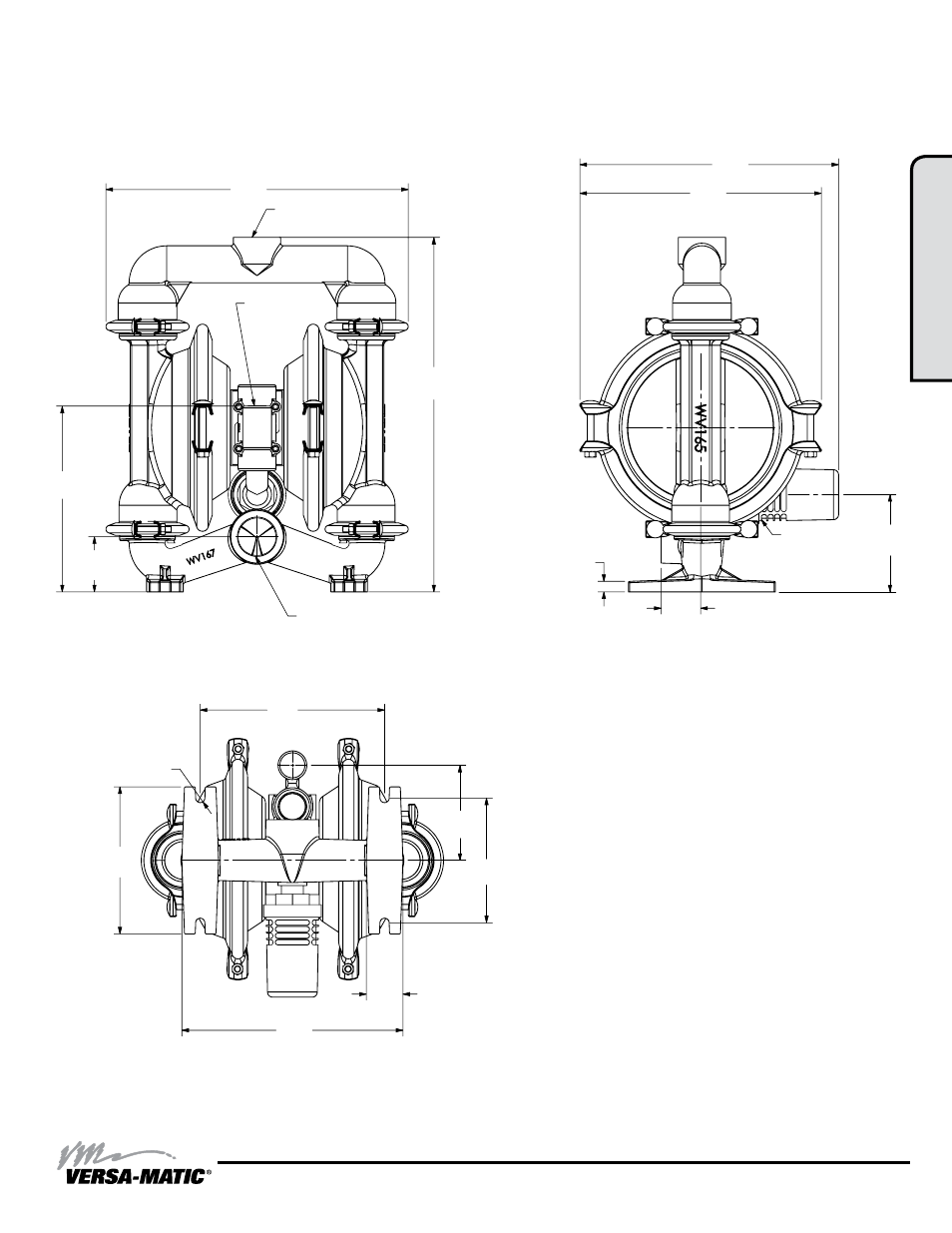

Dimensions in inches (mm dimensions in brackets)
The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed.
dimensional drawings
14.40
[365.76]
8.84
[224.53]
2.63
[66.8]
16.88
[428.75]
12.32
[312.93]
11.50
[292.10]
.50
[12.7]
1.88
[47.75]
4.63
[117.6]
8.78
[223.01]
7.00
[177.80]
4.53
[115.06]
5.94
[150.87]
1.74
[44.20]
10.52
[267.21]
1 1/4" NPT / BSP TAPERED
DISCHARGE PORT
1 1/2" NPT / BSP TAPERED
SUCTION PORT
1/2" NPT
AIR INLET
3/4" NPT
AIR EXHAUST
R.22
NOTES:
1. THE DIMENSIONS ON THIS DRAWING ARE FOR REFERENCE ONLY. A CERTIFIED DRAWING
CAN BE REQUESTED IF PHYSICAL DIMENSIONS ARE NEEDED.
BOTTOM VIEW
A
UPDATED TO CURRENT DESIGN
MAV
10/13/10
3309
REV
REVISION
CHG
DATE
ECN
THIS IS A PROPRIETARY DOCUMENT. DO NOT REPRODUCE OR DISCLOSE
WITHOUT THE EXPRESS WRITTEN PERMISSION OF WARREN RUPP INC.
MADE FROM
WETTED END MATERIAL:
PART NUMBER
DESCRIPTION
DRAWING NUMBER
WARREN RUPP INC.
REV
A
DO NOT SCALE
DRAWING
DIMENSIONS
ARE INCHES
SHEET
C
6
7
8
A
8
7
6
5
4
3
2
1
D
B
D
C
B
A
V4CAxxxx0
V4 CAST IRON CLAMPED PUMP
1 1
of
V4CAxxxx0
CAST IRON
SEE BOM
ALL DIAPHRAGM TYPES
ELASTOMERIC MATERIAL:
AIR END MATERIAL:
ALUMINUM / BRASS
14.40
[365.76]
8.84
[224.53]
2.63
[66.8]
16.88
[428.75]
12.32
[312.93]
11.50
[292.10]
.50
[12.7]
1.88
[47.75]
4.63
[117.6]
8.78
[223.01]
7.00
[177.80]
4.53
[115.06]
5.94
[150.87]
1.74
[44.20]
10.52
[267.21]
1 1/4" NPT / BSP TAPERED
DISCHARGE PORT
1 1/2" NPT / BSP TAPERED
SUCTION PORT
1/2" NPT
AIR INLET
3/4" NPT
AIR EXHAUST
R.22
NOTES:
1. THE DIMENSIONS ON THIS DRAWING ARE FOR REFERENCE ONLY. A CERTIFIED DRAWING
CAN BE REQUESTED IF PHYSICAL DIMENSIONS ARE NEEDED.
BOTTOM VIEW
A
UPDATED TO CURRENT DESIGN
MAV
10/13/10
3309
REV
REVISION
CHG
DATE
ECN
THIS IS A PROPRIETARY DOCUMENT. DO NOT REPRODUCE OR DISCLOSE
WITHOUT THE EXPRESS WRITTEN PERMISSION OF WARREN RUPP INC.
MADE FROM
WETTED END MATERIAL:
PART NUMBER
DESCRIPTION
DRAWING NUMBER
WARREN RUPP INC.
REV
A
DO NOT SCALE
DRAWING
DIMENSIONS
ARE INCHES
SHEET
C
6
7
8
A
8
7
6
5
4
3
2
1
D
B
D
C
B
A
V4CAxxxx0
V4 CAST IRON CLAMPED PUMP
1 1
of
V4CAxxxx0
CAST IRON
SEE BOM
ALL DIAPHRAGM TYPES
ELASTOMERIC MATERIAL:
AIR END MATERIAL:
ALUMINUM / BRASS
1: PUMP
SPECS
