Versa-Matic N25 AIR OPERATED AIR OPERATED DOUBLE DIAPHRAGM PUMP User Manual
Page 10
HG-CF-998 Rev. D - 03/27/03
Page 9
TECHNICAL NOTES :-
NOTES :-

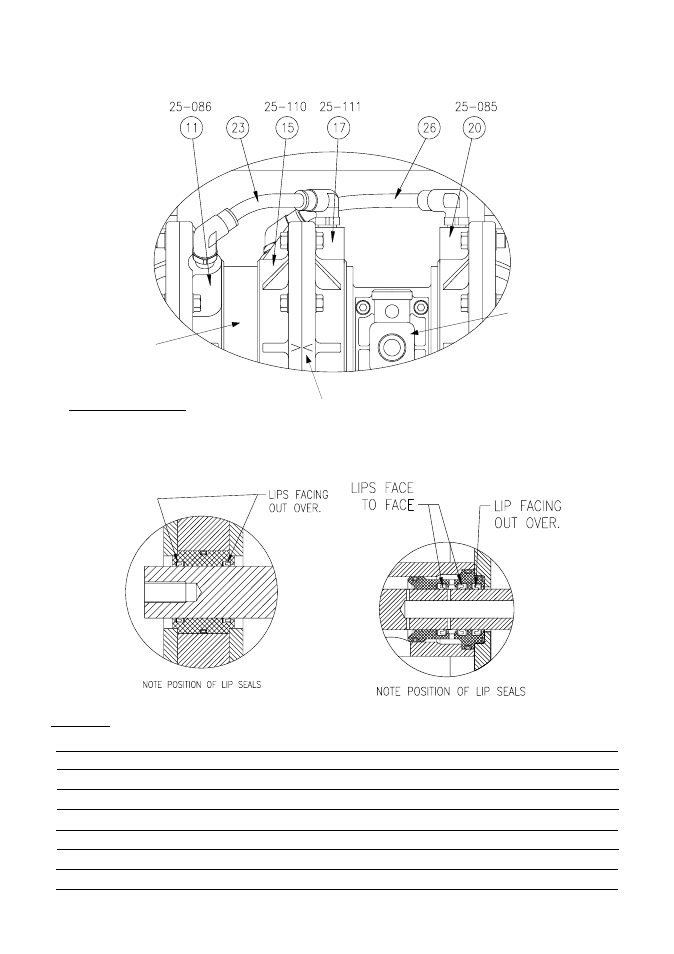

Air Hose connections :- On assembly, ensure these arrows are in-line on items 15 & 17. Air Hoses
(items 23 & 26) are connected as shown, air chamber inner cover L.H. (11)
connects to fluid chamber inner cover L.H. (17) and air chamber inner cover
(15) connects to fluid chamber inner cover (20) when looking from the Valve
Block side of pump.
Valve Block on right
Spacer Cover on
left.
