• Model RE3 Metallic Bolted
airVantage Troubleshooting Guide
airVantage RESETS aNd ENTERS lEaRN mOdE
TOO fREQuENTly
What to Check:
• Check for excessive varying environmental pumping
conditions
(changing head or suction)
• Check ice buildup in exhaust area
• Inspect sleeve and spool for damage
• Make sure patch cable plug is connected and locked
Corrective Action:
• Consult Factory After Sales Support Team
PumP STallS, RESETS, lEaRNS, SEEKS aNd
REPEaTS
What to Check:
• Make sure patch cable plug is connected and locked
• Check ice buildup in exhaust area
Corrective Action:
• Consult Factory After Sales Support Team
PumP mOVES OuT Of STEady STaTE aNd NEVER
aTTEmPTS TO RElEaRN (lEd ON)
What to Check:
• Make sure patch cable plug is connected and locked
• Cycle the power off/on to the control module
Corrective Action:
• Consult Factory After Sales Support Team
• Cycle the power switch on the control module off/on
wHaT TO dO IN THE EVENT Of a dIaPHRaGm
faIluRE
If a diaphragm failure has been detected in pumps fitted
with AirVantage,
see page 5 for shut-down procedure.
What to Check:
• Has product migrated to the sensor?
Corrective Action:
• If the sensor has been submerged in product, the sensor
will need to be replaced. Consult the AirVantage servicing
section of the manual for detailed instructions.
What to Check:
• Has product contaminated the check valve cartridge?
Correct Action:
• If a significant amount of product has made it into the
check valve assembly, then the unit will need to be
disassembled for inspection. If the check valve assembly is
damaged, then it will need to be replaced. Consult parts list
for information.

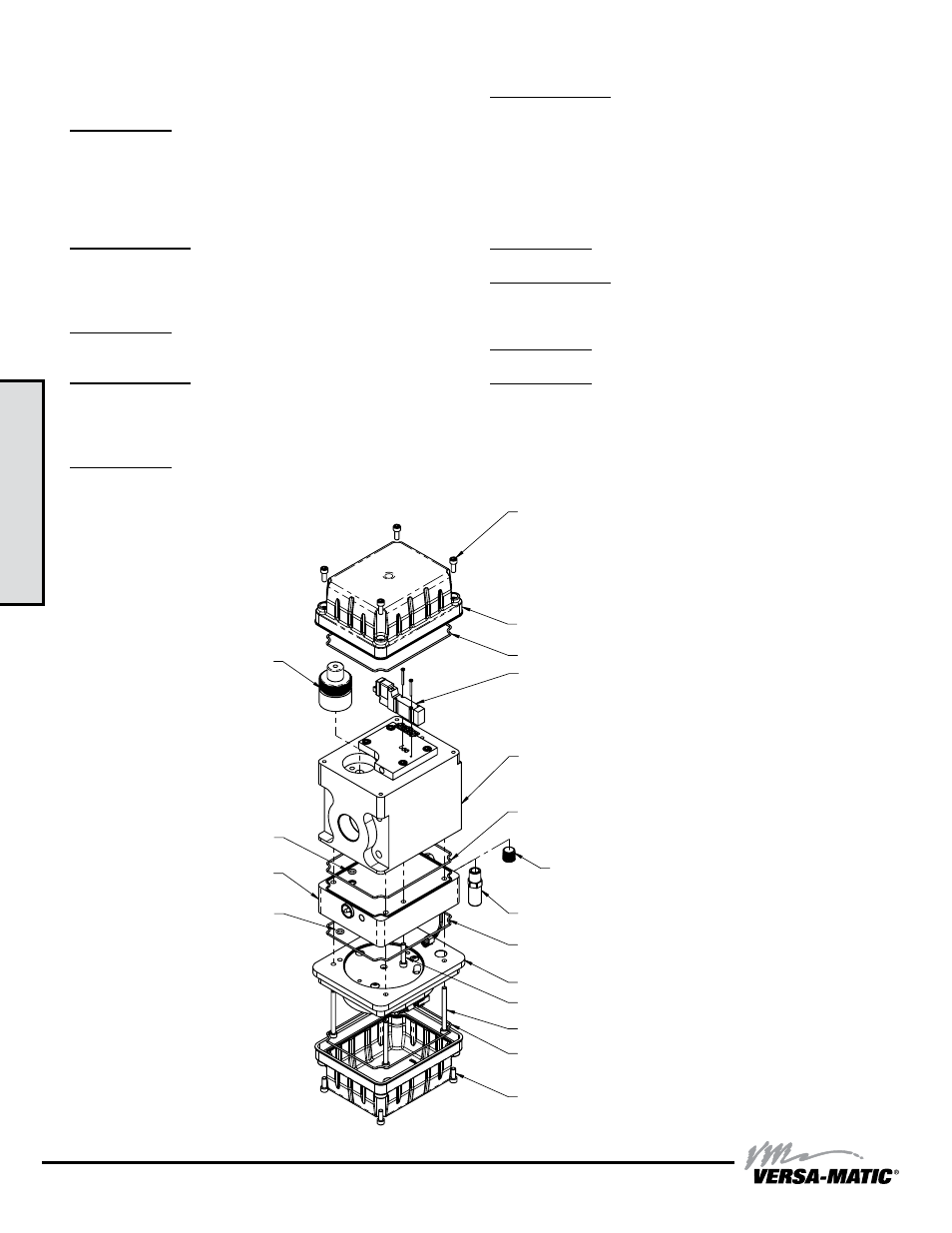

VALVE, POPPET
VALVE, SOLENOID
CAPSCREW, HEX SOC HD, 10-32 X .50
COVER
SEAL, O-RING
SEAL, O-RING
MUFFLER
SEAL, O-RING
ASSEMBLY, POWER GENERATOR
CAPSCREW, HEX SOC HD, 10-32 X 2.25
SEAL, O-RING
CAPSCREW, HEX SOC HD, 10-32 X 1.00
CAPSCREW, HEX SOC HD, 10-32 X .50
O-RING
O-RING
CONTROL MODULE
REGULATOR
Optional 1/4" NPT Pipe Plug (P/N 618.011.330)
Must be installed if performing direct spray
wash-down of pump (Purchased Separately)
