• Model E2 Metallic Flap Valve
Performance
E2 - 2” Bolted Aluminum Pump – Metallic Center
ELASTOMERIC AND TPE FITTED - DOMED
Flow Rate
Adjustable to . . . . . . . 0-194 gpm (734 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 2" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 2" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . 1" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .14' (4.3 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .28' (8.5 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . .1 1/8" (28.6 mm)
Max Noise Level . . . . . . . . . . . . . 95 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . .84 lbs (38.1 kg)
E2 - 2” Flap Valve Clamped Pump – Metallic Center
ELASTOMERIC AND TPE FITTED - RUGGED
Flow Rate
Adjustable to . . . . . . . 0-219 gpm (829 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 2" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 2" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . 1" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .11' (3.4 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .26' (7.9 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . .1 1/8" (28.6 mm)
Max Noise Level . . . . . . . . . . . . . 95 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . .84 lbs (38.1 kg)

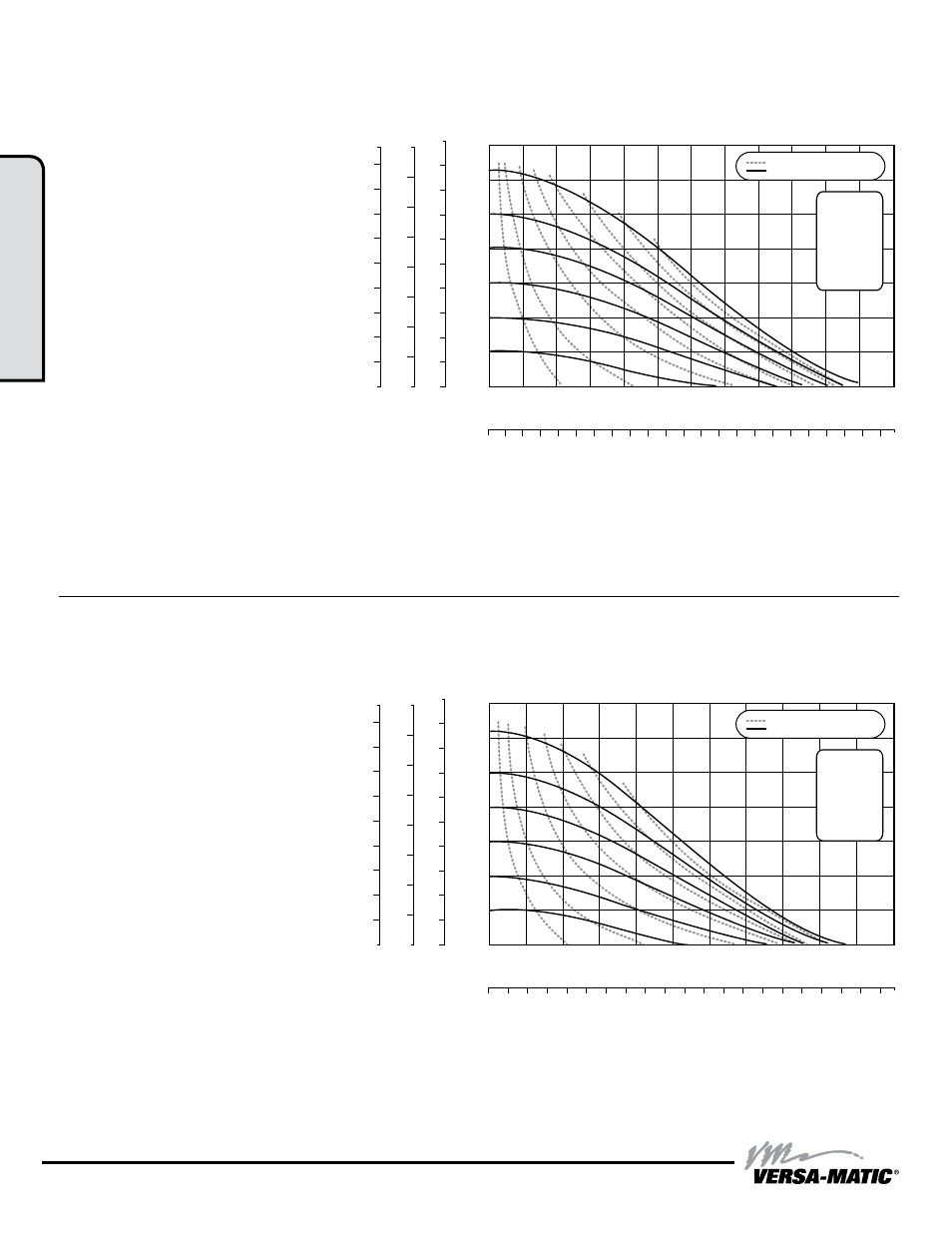

Discharge Head in PSI
0
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, 0.63 Gal. (2.4 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
40
51
60
102
80
136
100
170
120
204
140 240
0
20
80
160
240
320
400
480
560
640
720
800
880
1020 40 60
80
100
120
140
40
60
80
100
120
140
160
180
200
220
240
Meters Feet
0
0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
Discharge Head in PSI
0
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 0.63 Gal. (2.4 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
40
51
60
102
80
136
100
170
120
204
0
20
80
160
240
320
400
480
560
640
720
800
10 20
40 60
80
100
120
40
60
80
100
120
140
160
180
200
220
Meters Feet
0
0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient
conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at ambi-
ent conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
