Performance
E4 1 1/2" Bolted Non-Metallic Pump
PTFE Fitted
Flow Rate
Adjustable to . . . . . . . 0-72 gpm (272.5 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . .1 1/2" ANSI
Discharge. . . . . . . . . . . . . . . . . .1 1/2" ANSI
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 3/4" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .10' (3.0 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .20' (6.1 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . 3/16" (4.76 mm)
Max Noise Level . . . . . . . . . . . 67.1 dB(A)
Shipping Weights
Polypropylene . . . . . . . . . . . . 55 lbs (25 kg)
Kynar . . . . . . . . . . . . . . . . . . . 55 lbs (25 kg)
NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient
conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
E4 1 1/2" Bolted Non-Metallic Pump
ELASTOMERIC AND TPE FITTED
Flow Rate
Adjustable to . . . . . . . . 0-75 gpm (284 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . .1 1/2" ANSI
Discharge. . . . . . . . . . . . . . . . . .1 1/2" ANSI
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 3/4" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . .15' (4.57 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .25' (7.6 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . 3/16" (4.76 mm)
Max Noise Level . . . . . . . . . . . . 101 dB(A)
Shipping Weights
Polypropylene . . . . . . . . . . . . 55 lbs (25 kg)
Kynar . . . . . . . . . . . . . . . . . . . 55 lbs (25 kg)
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at
ambient conditions. The use of other materials and varying hydraulic conditions may result in
deviations in excess of 5%.

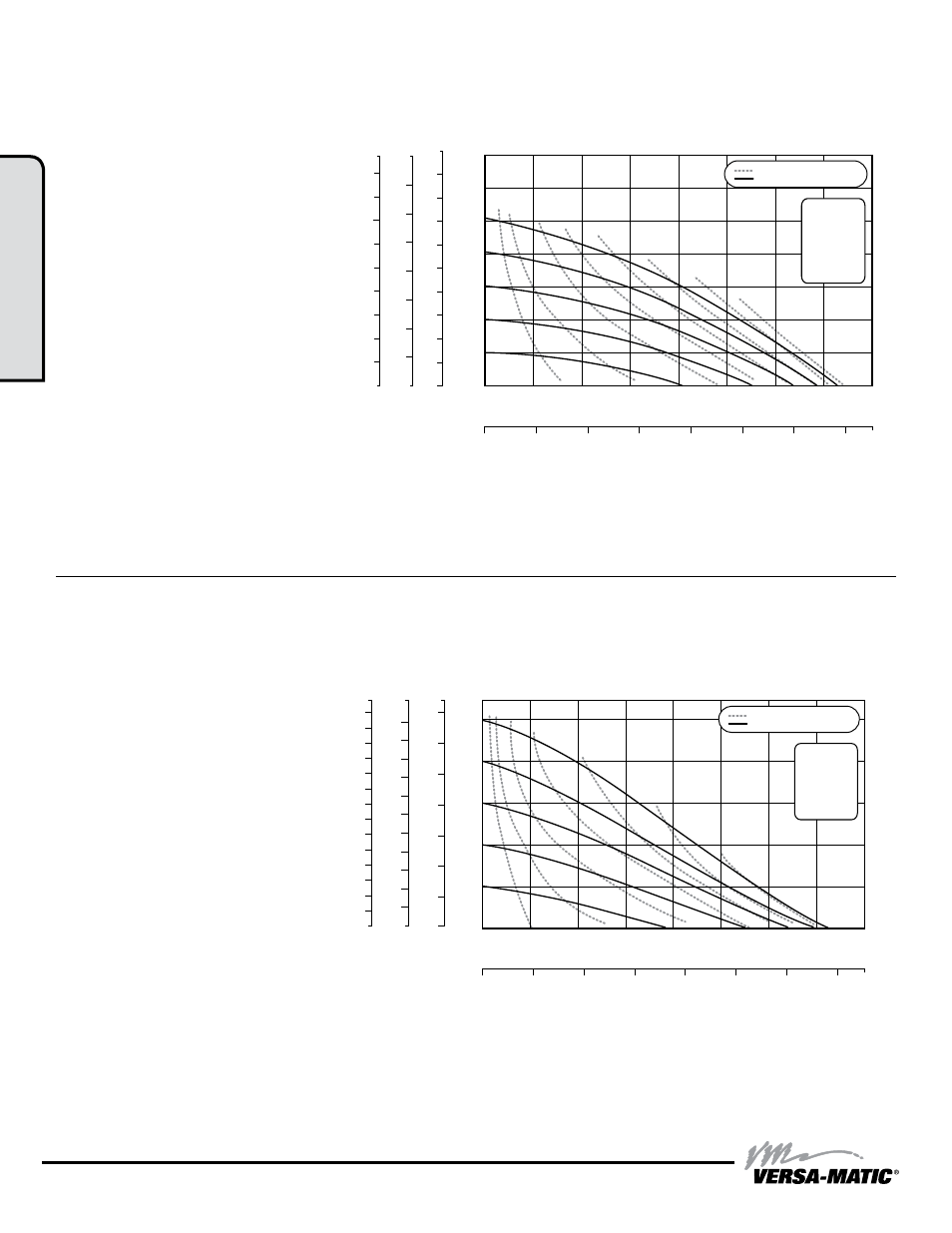

Discharge Head in PSI
0
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 0.24 Gal. (0.91 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
30
51
40
68
50
85
60
101.9
70
118.9
0
10
40
80
120
160
200
240
280
Meters Feet
0
0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
10
5
30
20
40
50
60
70
20
30
40
50
60
70
80
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 0.16 Gal. (0.60 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
30
51
40
68
50
85
60
101.9
0
10
40
80
120
160
200
240
280
10
5
30
20
40
50
60
20
30
40
50
60
70
80
Discharge Head in PSI
Meters Feet
220
200
180
160
140
120
100
80
60
40
20
0
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
0
1
2
3
4
5
6
7
BAR
0
20
40
60
80
100
