• Model E1 Metallic Bolted
Performance
E1 1" Bolted Metal
Rubber and TPE Fitted
Flow Rate
Adjustable to . . . . . . . 0-49 gpm (181.7 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 1" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 1" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 3/8" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 1/2" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .15' (4.6 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .31' (9.4 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 1/8" (3.2 mm)
Max Noise Level . . . . . . . . . . . . . 91 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . . . . 27 lbs (5 kg)
Stainless Steel . . . . . . . . . . . .40 lbs (7.7 kg)
Alloy-C . . . . . . . . . . . . . . . . . .40 lbs (7.7 kg)
E1 1" Bolted Metal
PTFE Fitted
Flow Rate
Adjustable to . . . . . . . 0-38 gpm (143.8 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 1" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 1" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 3/8" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 1/2" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . . .8' (2.4 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .31' (9.4 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 1/8" (3.2 mm)
Max Noise Level . . . . . . . . . . . . . 95 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . . . . 27 lbs (5 kg)
Stainless Steel . . . . . . . . . . . .40 lbs (7.7 kg)
Alloy-C . . . . . . . . . . . . . . . . . .40 lbs (7.7 kg)
100
80
60
40
20
0
0 5 10 15 20 25 30 35 40 45 50
0 20 40 60 80 100 120 140 160 180
20
30
40
10 5

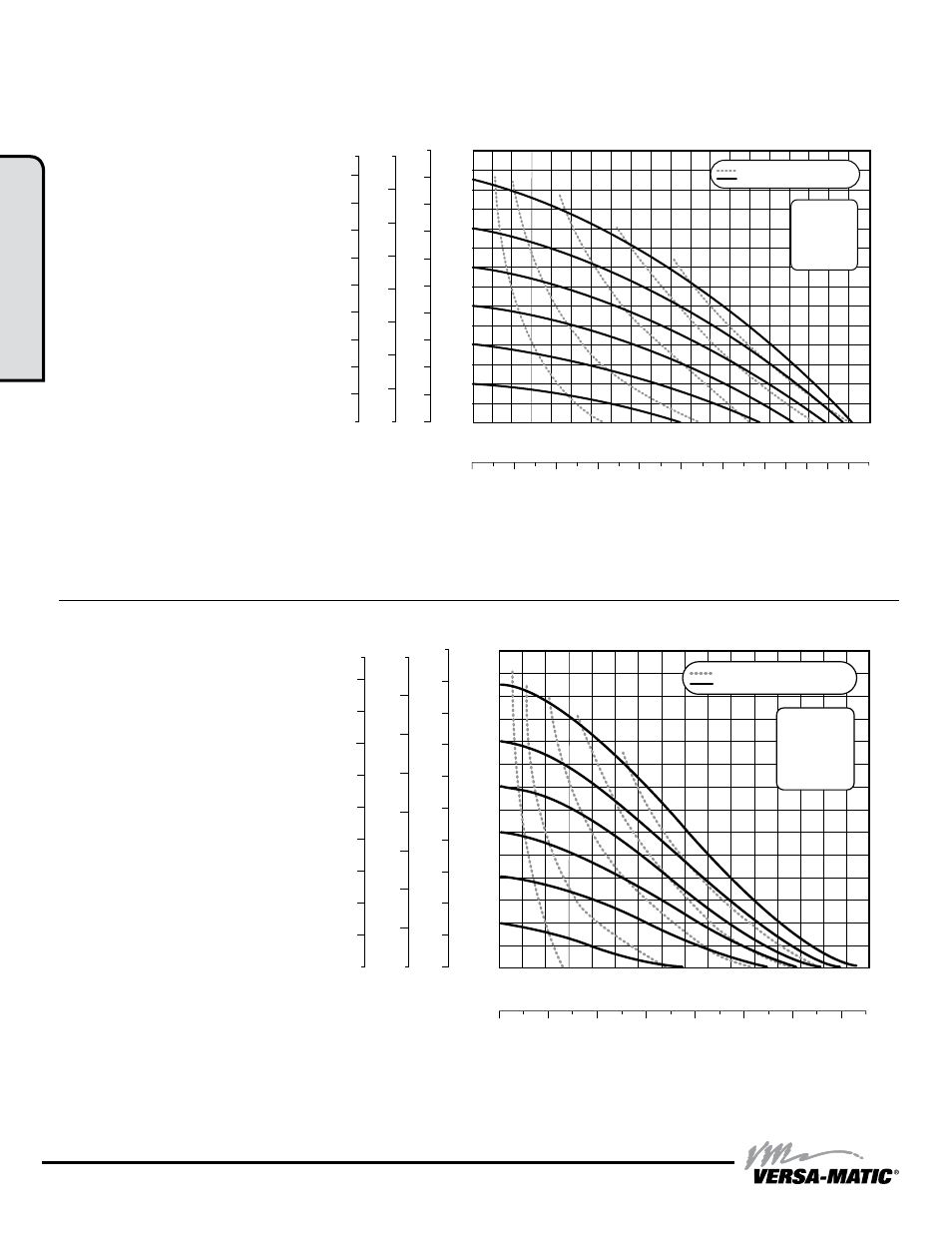

Discharge Head in PSI
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, .10 Gal. (0.38 L)
140
120
Meters Feet
0 0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
5 8.5
10 17
20 34
30 51
40 68
0 20 40 60 80 100 120 140
100
80
60
40
20
0
0 5 10 15 20 25 30 35 40
20
30
40
10
5
Discharge Head in PSI
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, .05 Gal. (0.19 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
5 8.5
10 17
20 34
30 51
40 68
Meters Feet
0 0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient
conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at ambi-
ent conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
1: PUMP
SPECS
