Versa-Matic 2 Ultra-Matic Metallic Flap Valve - Manual (Page 12)

u2msmFV-rev0314
9
• Model U2 Metallic Flap Valve www
.
versamatic
.
com

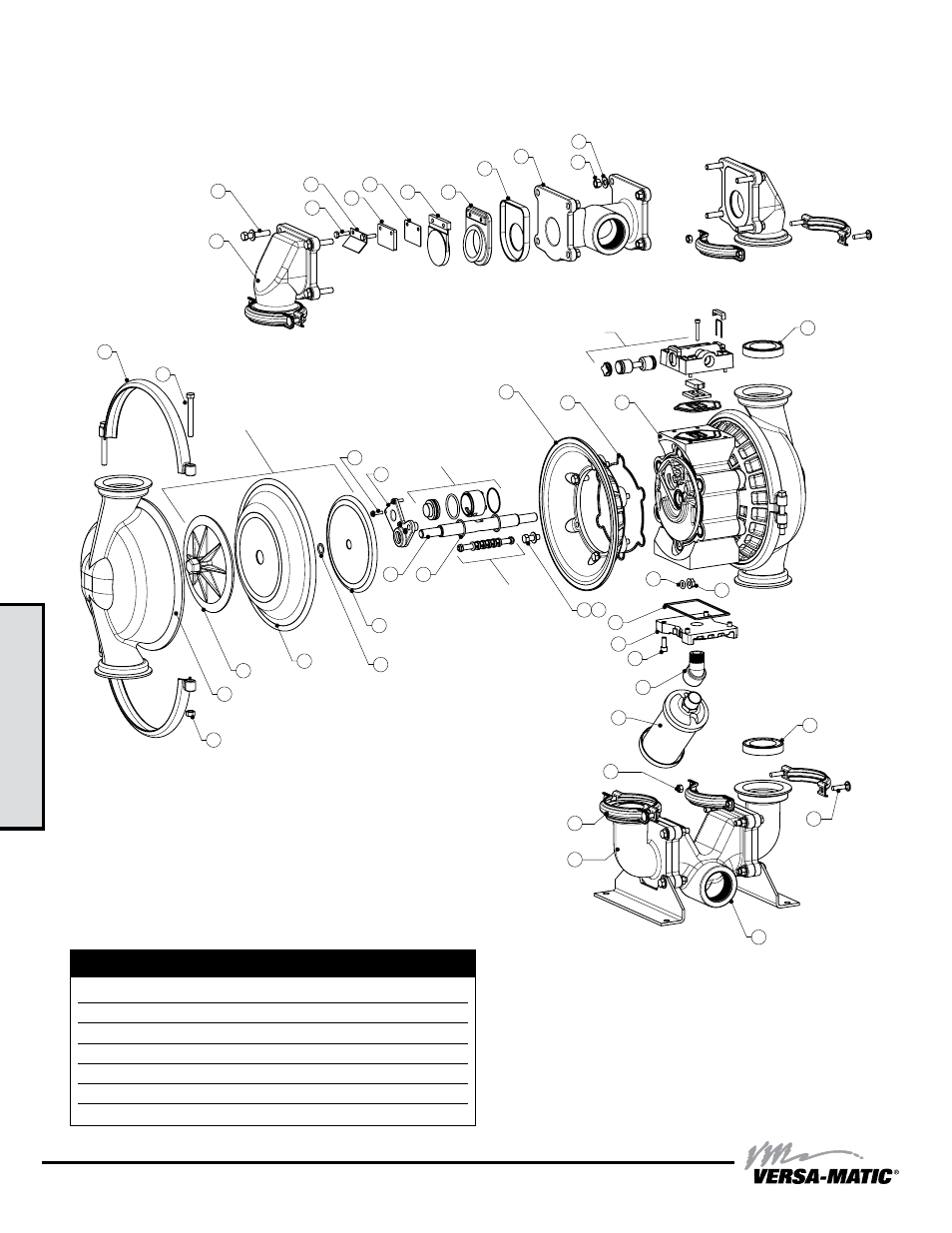

Composite repair Parts drawing - Exploded View
See Detail C:
Exhaust Valves
See Detail B:
Pilot Shaft
Shown with Versa-Rugged Diaphragms
See Detail D for Versa-Dome Diaphragms
See Detail E for PTFE Bonded Diaphragms
See Detail F for PTFE 2-Piece Diaphragms
See Detail A:
Air Valve
51
53
56
64
72
70
42
44
18
45
65
52
43
50
40 32
29
26
17
71
62
61 59
58
60
57
63
16 15
34
20
33
35
36
37
66
69
67
68
54
54
38
19
Small Clamp Bolts 50 in-lbs (5.6 N-m)
Large Clamp Bolts 20ft-lbs (27 N-m)
Diaphragm Plates — Rubber 65 ft-lbs (88 N-m)
Diaphragm Plates — PTFE 65 ft-lbs (88 N-m)
Air Valve Cap Screws 25 in-lbs (2.8 N-m)
Muffler Plate Cap Screws 30 in-lbs (3.4 N-m)
Air Chamber Bolts 20 ft-lbs (27 N-m)
Torque Settings
General Model Specific
3: EXP
VIEW
