U2 Non-Metallic Bolted - End Ported
Dimensions in inches (mm dimensions in brackets)
The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed.

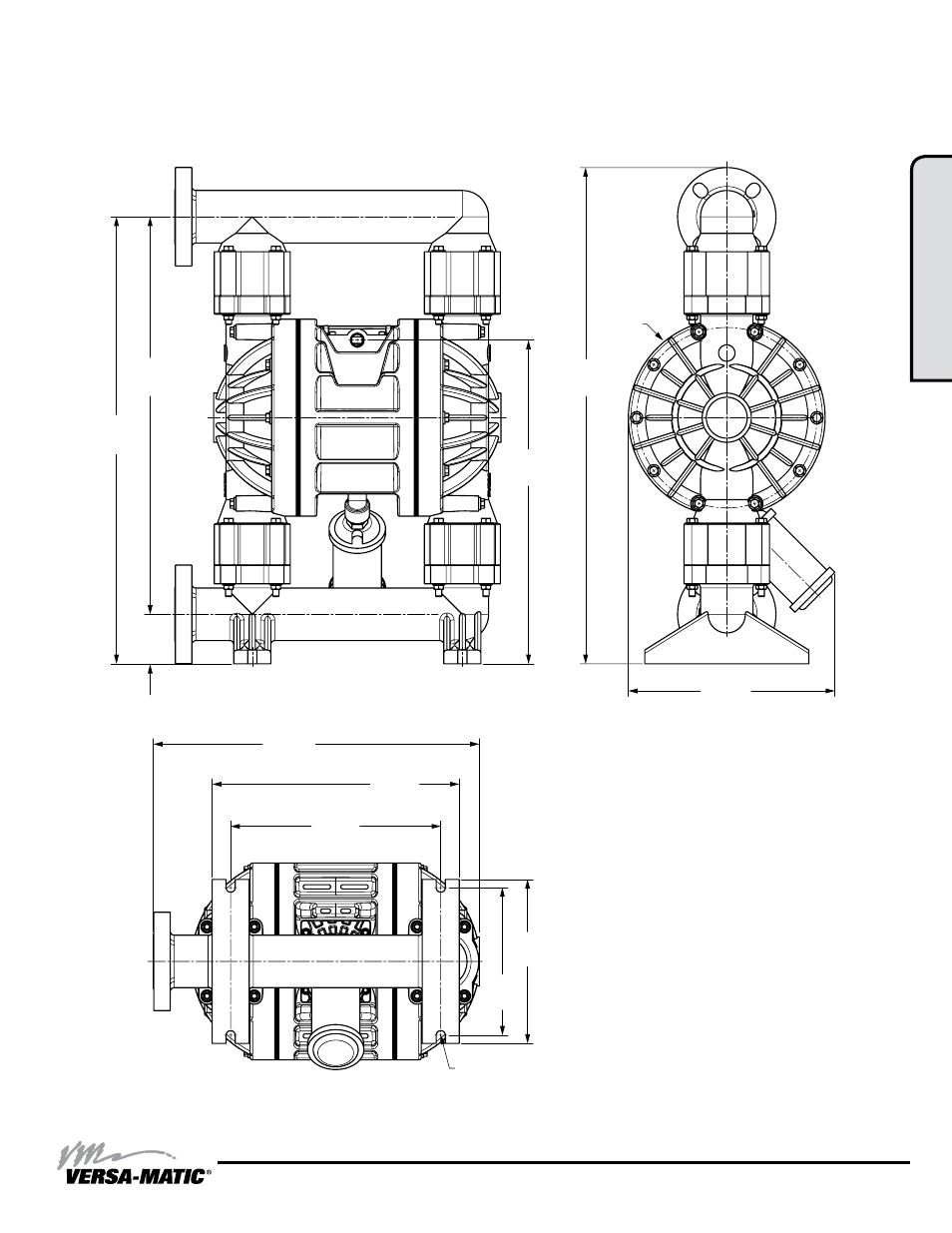

dimensional drawings
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
24.25
616
27.25
692
19.75
502
12.81
325
15.06
383
19.88
505
9.00
229
10.00
254
Ш.56
14
Ш12.00
305
30.25
768
12.56
319
3.00
76
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
24.25
616
27.25
692
19.75
502
12.81
325
15.06
383
19.88
505
9.00
229
10.00
254
Ш.56
14
Ш12.00
305
30.25
768
12.56
319
3.00
76
Model Specific
1: PUMP
SPECS
