• Model U2 Metallic Clamped
Performance
U2 - 2” Metallic Clamped Pump
Flow Rate
Adjustable to . . . . . . . 0-182 gpm (689 lpm)
Port Size
Suction . . . . . . . . . . . .2" Female NPT (BSP)
Discharge. . . . . . . . . .2" Female NPT (BSP)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 3/4" NPT
Suction Lift (Dry)
Rubber . . . . . . . . . . . . . . . . . . . .20' (6.10 m)
PTFE . . . . . . . . . . . . . . . . . . . . .10' (3.05 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . . .1/2" (6 mm)
Shipping Weights
Aluminum . . . . . . . . . . . . . . . . 69 lbs (31 kg)
Cast Iron. . . . . . . . . . . . . . . . 114 lbs (52 kg)
Hastelloy C. . . . . . . . . . . . . . 124 lbs (56 kg)
Stainless Steel . . . . . . . . . . . 114 lbs (52 kg)
NoTE:For U2 pumps fitted with PTFE diaphragms, reduce water discharge figures
by 20%.Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
CAUTIoN: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.

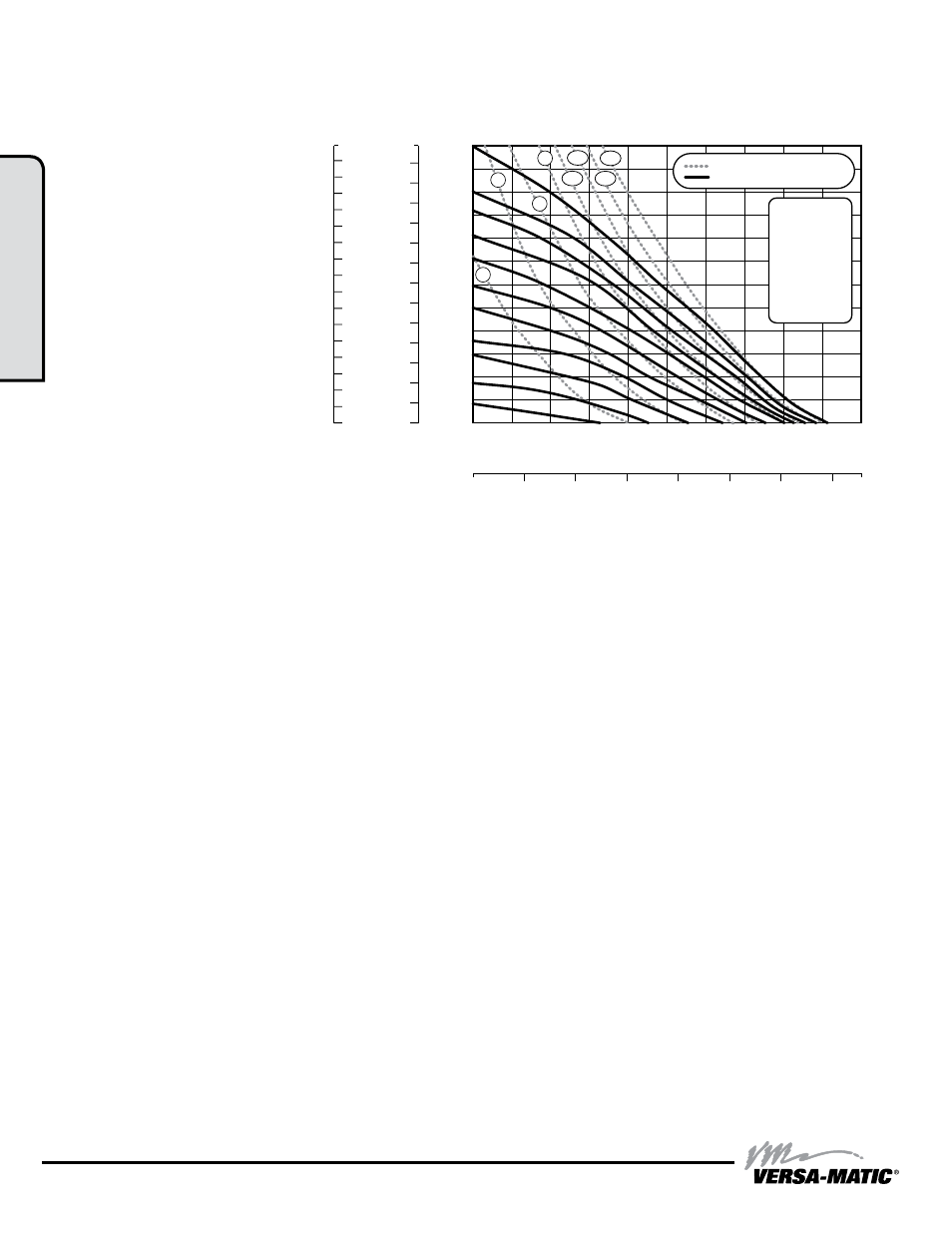

AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
20 34
40 68
60 102
80 136
100 170
120 204
140 238
160 272
140
160 120
100
80
60
40
20
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Meters Feet
Discharge Head in PSI
0
0
20
40
60
80
100
120
20 40 60 80 100 120 140 160 180 200
100 0 200 300 400 500 600 700
Displacement Per Stroke, 0.49 Gal. (1.85L)
75
70
65
80
60
55
50
45
40
35
30
25
20
15
10
5
0
240
220
260
200
180
160
140
120
100
80
60
40
20
0
