Val-Matic 3-24 Butterfly Valve With LSA Actuator and External Stops - Manual (Page 3)

3
ITEM DESCRIPTION MATERIAL
1
Body Gray or Ductile Iron
2 Body Seat Stainless Steel
3 Disc Ductile Iron
4 Shaft Stainless Steel
5 Sleeve Bearing* Nylatron
6 Resilient Seat* Buna-N
7 Seat Retaining Ring Stainless Steel
8 Ret. Ring Screws* Stainless Steel
9 Taper Pin Stainless Steel
10 Taper Pin O-Ring* Buna-N
11 Taper Pin Nut Stainless Steel
12 Taper Pin Washer Stainless Steel
13 Packing* Buna-N
14 Key Carbon Steel
15 Thrust Bearing Cap Ductile Iron
16 Cap Screws Carbon Steel, Plated
18 Thrust Plate Bronze
24 Body O-Ring Buna-N
*Recommended
Spare Part
VALVE CONSTRUCTION
The standard Series 2000 Butterfly Valve is
constructed of rugged cast iron with a stainless steel
shaft and resilient disc edge. See the specific
Materials List submitted for the order if other than
standard cast iron construction. The details of
construction are illustrated in Figure 2.
The body (1) is available with flanged or mechanical
joint ends for connection to the pipeline. The body is
equipped with a stainless steel seat (2). The 1/4
turn disc (3) is guided by a stainless steel shaft (4)
which rotates in non-metallic bearings (5) fixed in the
body. Leak-tight closure is made when the resilient
seat (6) is rotated into the stainless steel seat on the
"SEAT END" of the body.
TABLE 1. STANDARD VALVE PARTS LIST

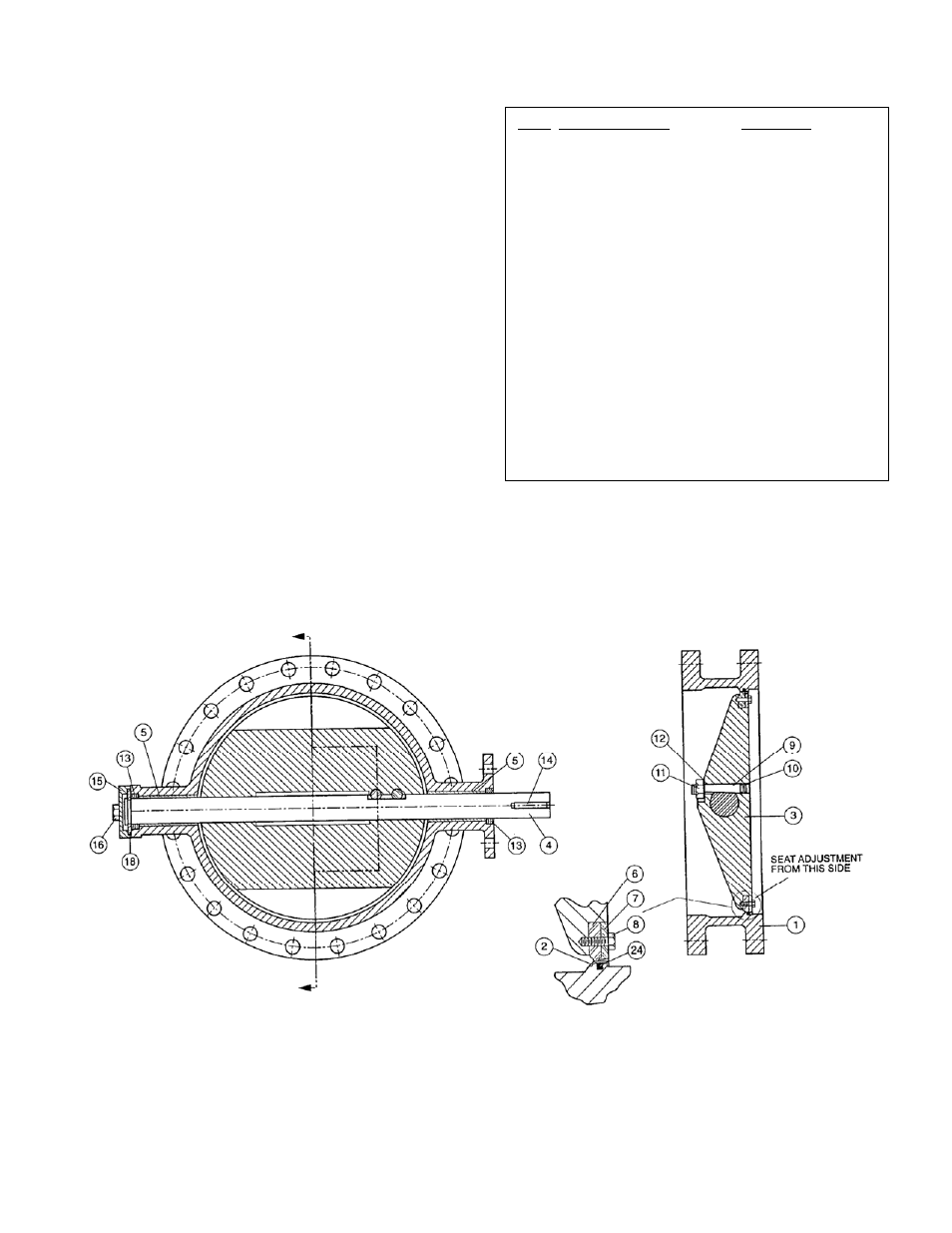

FIGURE 2. STANDARD BUTTERFLY VALVE CONSTRUCTION
