Val-Matic 6-8 Combination Air Valve (Single Housing Type) User Manual
Page 4
3

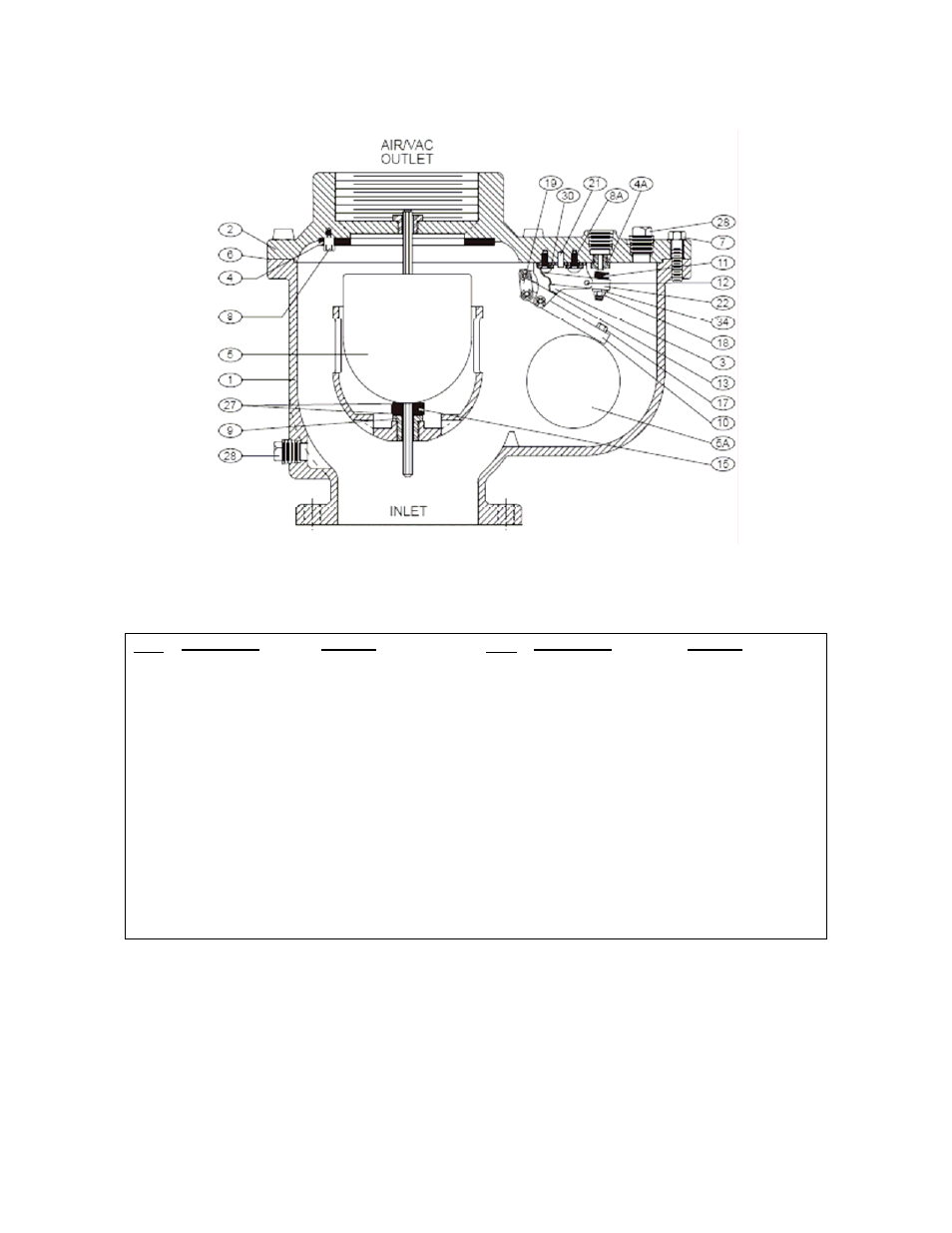

Figure 2. 6”-8” Combination Air Valve
Item Description Material
Item Description Material
1
Body
Cast Iron
11
Orifice Button*
Buna-N
2
Cover
Cast Iron
12
Pivot Pin*
Stainless Steel
3
Leverage Frame* Stainless Steel
13
Retaining Ring*
Stainless Steel
4 Seat*
Buna-N
15 Cushion*
Buna-N
4A Seat*
Stainless
Steel
17 Float Retainer*
Stainless Steel
5
Float*
Stainless Steel
18
Lock Nut*
Stainless Steel
5A Float*
Stainless
Steel
19 Link*
Stainless
Steel
6
Gasket*
Non-Asbestos
21
Locating Pin*
Stainless Steel
7
Cover Bolt
Alloy Steel
22
Orifice Button Arm* Stainless Steel
8
Retaining Screw* Stainless Steel
23
Hood Assembly
Steel
8A
Retaining Screw* Stainless Steel
28
Pipe Plug
Steel
9
Guide Bushing*
Stainless Steel
30
Washer*
Stainless Steel
10
Float Arm*
Stainless Steel
34
Lock Washer*
Stainless Steel
*Recommended Repair Part Kit
Table 1. Combination Air Valve Parts List
