Connecting DVD/VCR/AV equipment

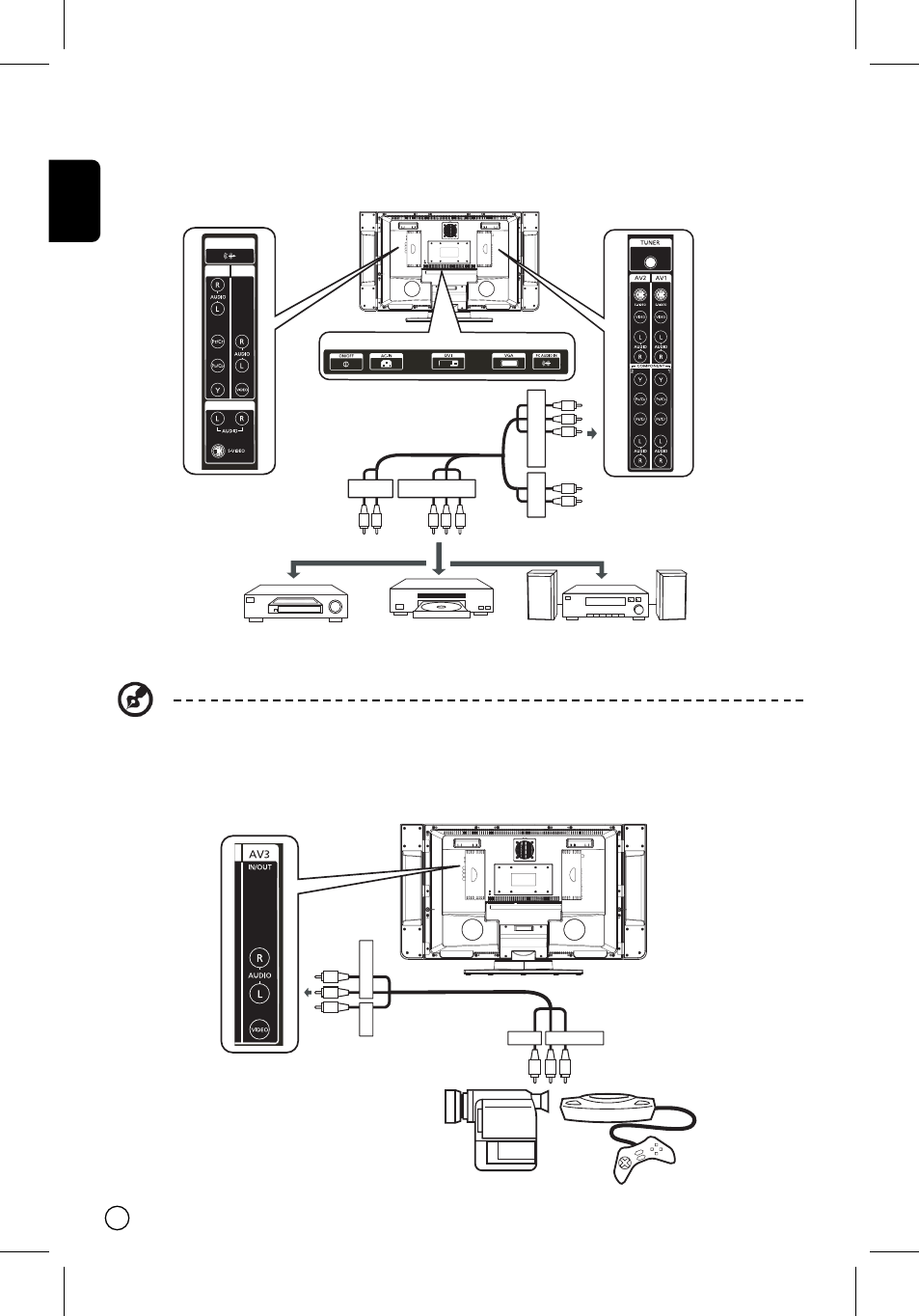

Connect your external device to the Componet/Audio ports on the TV set as shown below.
Alternatively you can use other connectors such as DVI, S-Video, Video and Audio R/L for appro-
priate equipment
Connecting a camera, camcorder or video game
Connect your camera or camcorder to the Video/Audio ports on the bottom of the TV set as shown below.
W
R
Y
W R
Y
Audio
Video
Audio
Video
G
R B
W
R
Audio
Component
G
R
B
W
R
Audio
Component
or
or
VCR
DVD
AV
AUDIO OUT
COMPO-
NENT3
AV3
IN/OUT
AV4
