Finalizing the Installation
(for qualified installers only)
2 3
Travis Industries 9 3 5 0 8 1 1 5 4 0 5 0 1 1 3
Glass Frame Removal and Installation (continued)
The spring pin can come loose from the latch assembly. This occurs when it is turned 1/4 turn when it is
disengaged. Follow the directions below to re-install the spring pin if it becomes loose.

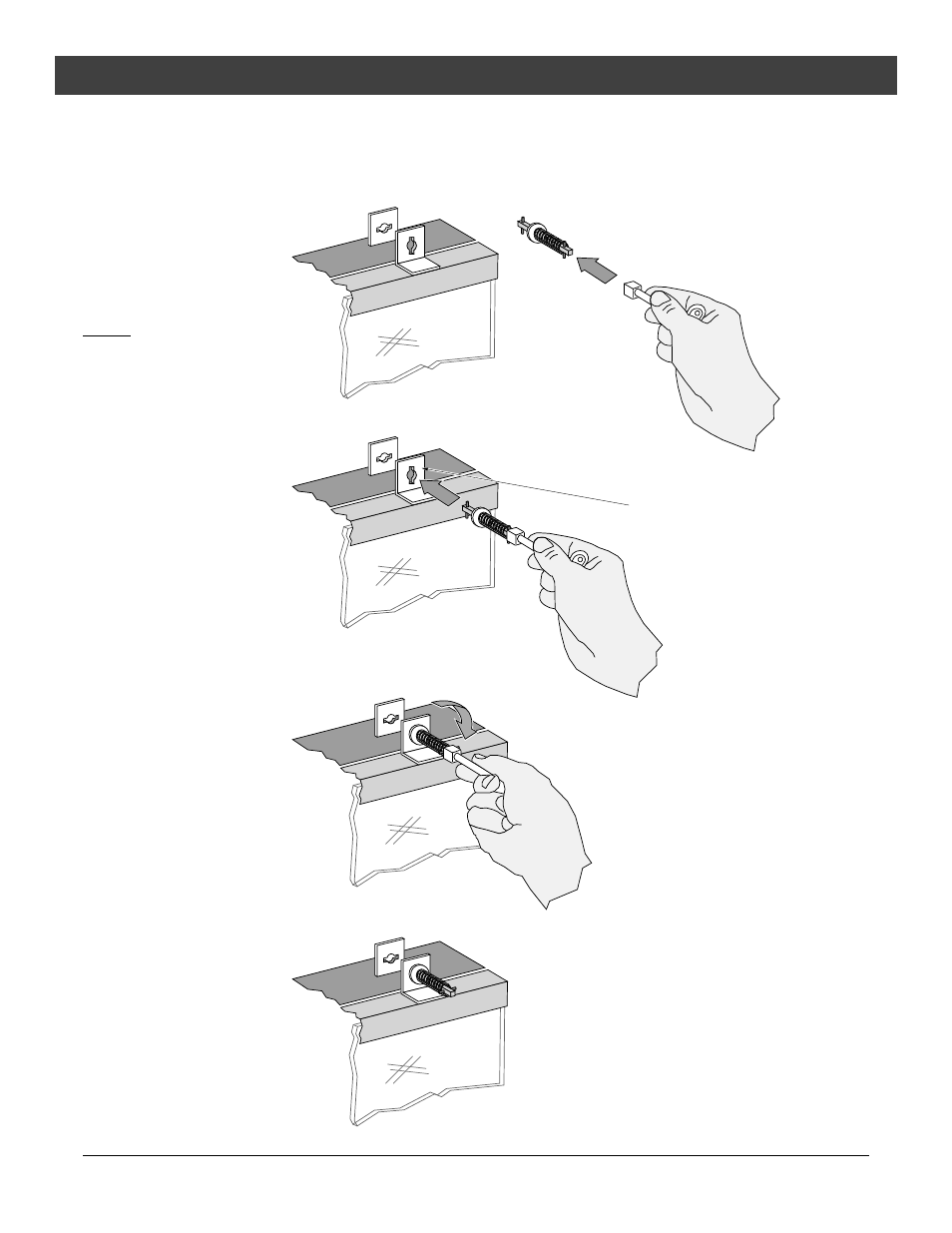

To re-install the spring pin, first
insert this end into a 1/4” key.
Insert the spring pin into
this bracket with the pins
aligned vertically.
Push in slightly and
twist 1/4 turn.
With this pin horizontal, the
spring pin will remain in place.
NOTE: The spring pins
can be installed with the
glass frame in place or
removed.
