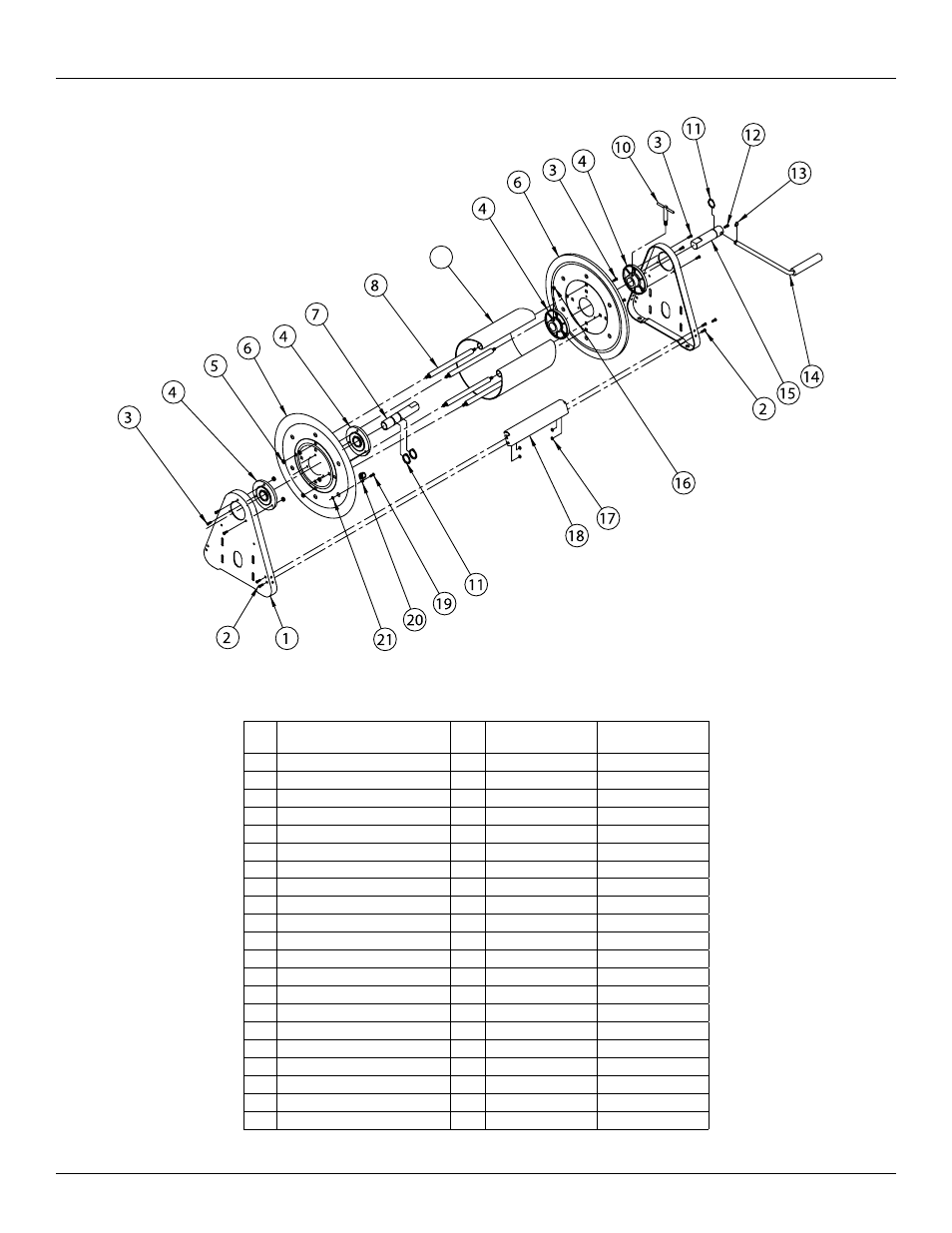

Series 30000-CS Hand Crank Cord Reels
Page 2
www.reelcraft.com
Item
#
Description
Qty.
CA30106-CS
CA30112-CS
1 Side Frame
2
260403
260403
2 5/16-18 x 1/2” Screw
8
S2-51
S2-51
3 Self Tapping Screw
9
S317-31
S317-31
4 Hub & Bushing Assembly
4
S600640
S600640
5 Nyloc Nut
8
S85-7
S85-7
6 Spool Flange
2
S260399-3
S260399-3
7 Support Shaft
1
261283
261283
8 Tie Rod
4
260402-100
260402-200
9 Spool Spacer
1
260401-1
260401-2
10 Lock Handle Assembly
1
S280109
S280109
11 Snap Ring
3
300007
300007
12 Set Screw
1
300089
300089
13 Snap Ring
1
S137-4
S137-4
14 Crank Handle Assembly
1
S600102
S600102
15 Support Shaft
1
602242
602242
16 Set Screw
1
300006
300006
17 Lock Nut
8
300107
300107
18 Cross Brace
2
261501-1
261501-2
19 Machine Screw
1
300001
300001
20 Cable Clamp
1
261541-1
261541-1
21 Flange Nut
1
S79-3
S79-3
