The main control unit
is located behind the
pushbutton cover.

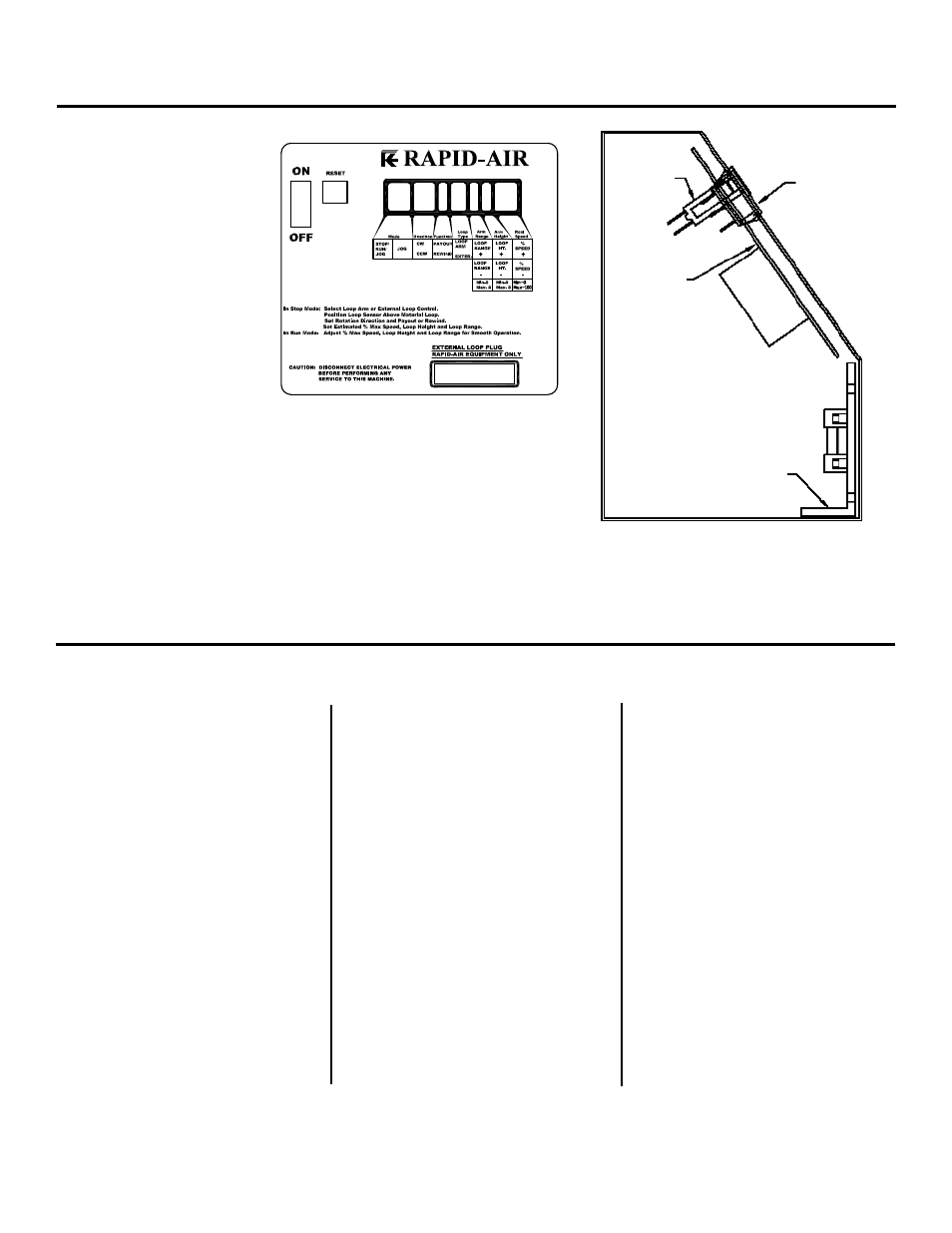

Here is an illustration of
the layout of the control
panel. This diagram lists
all the components and
the approximate location
of each that could be
used for troubleshooting
the machine if a problem
should occur. The reel
is shipped with—120 VAC
(1 phase) input. Visually
check all electrics before
starting the reel.
puShbutton control
The straightener that you just
received is fully assembled and tested
and ready to be put into position.
CAUTION: Due to shipment vibration,
the straightener should be checked to
be sure that all screws and bolts are
secure and all electrical components
are in place inside the cabinet. Visu-
ally inspect the complete machine for
physical damage due to shipment and
handling. If the straightener was dam-
aged in shipment, contact the carrier
first and then Rapid-Air.
Install the straightener on a level
surface with sufficient clearance for
loading the material and adjusting
the roller pressure for straightening.
Align and center the straightener to
inStallation
Operating Instructions For SBX Series Powered Straightener
be a minimum 12 gauge wire to keep
the voltage losses down and also for
electrical safety reasons.
Please check your local safety codes.
The medium and high speed
straighteners require 230 VAC, 60 HZ,
1PH as the supply voltage. Please
refer to the schematics in the manual
for required fuse sizes.
Please check your local safety codes.
Turn on the main power button and
run a test cycle checking the jog
(using the jog button) and run
(using the dancer arm to test that the
speed varies if using the proportional
control). Test all electrical features
before continuing.
the device that it will be supplying the
straightened stock. The straightener
should then be bolted to the floor
especially when used to pull stock
from a non-powered reel.
CAUTION: Before bolting the
straightener down, check for the
longest feed length to be run. The
straightener should be set so that
there will be about two or three feed
lengths in storage in the loop without
re-inducing coil set in the material.
The standard speed straightener
is completely self contained and
only needs to be plugged into a
20 amp, 120 VAC, 60 HZ outlet. If an
extension cord is used as a source
to the straightener power, it should
MAIN
BREAkER
69100578
ROCkER
SW.
69100315
CONTROL
BOARD
69100804
MOTOR
BOARD
69100014
