The MS-Series servo has many
features found in the more expensive
models. Some of its features are:
Input:
120 VAC, 50/60 Hz
Amperage.required.at.input:
10 amps maximum
Accuracy:.
. .0025 per feed length at the rolls
Maximum.feed.length.input:
999.999 inches
Job.storage:
99 jobs
Display:
4 rows by 80 characters, backlit
inTrodUCTion
Rapid-Air.Introduction.to.MS-Series
Fault.type:
Displayed on the drive if a fault
occurs otherwise an “8.” is
displayed.
Rolls:.
. Hardened and ground.
Drive.roll.parallelism.adjustment:
Used to tune the rolls to the
material if needed.
The Rapid-Air MS-Series feed uses
the same type of programming
procedures as it has in its more ex-
pensive models. Input a feed length,
strokes per minute, and a feed arc
and the program will adjust the servo
acceleration/deceleration and maxi-
mum servo speed parameters to the
requirement needed to keep up to the
press strokes per minute.
The precision mechanical roll feed has
been designed for compactness, ease
of setup and installation. A 120 VAC
receptacle is all that is required of the
customer. Two cables are supplied with
the control and need to be connected to
the proper locations of the motor. The
electrical controls are housed in a small
box that can be mounted on the press
or if purchased, on a post that can be
positioned close to the press.

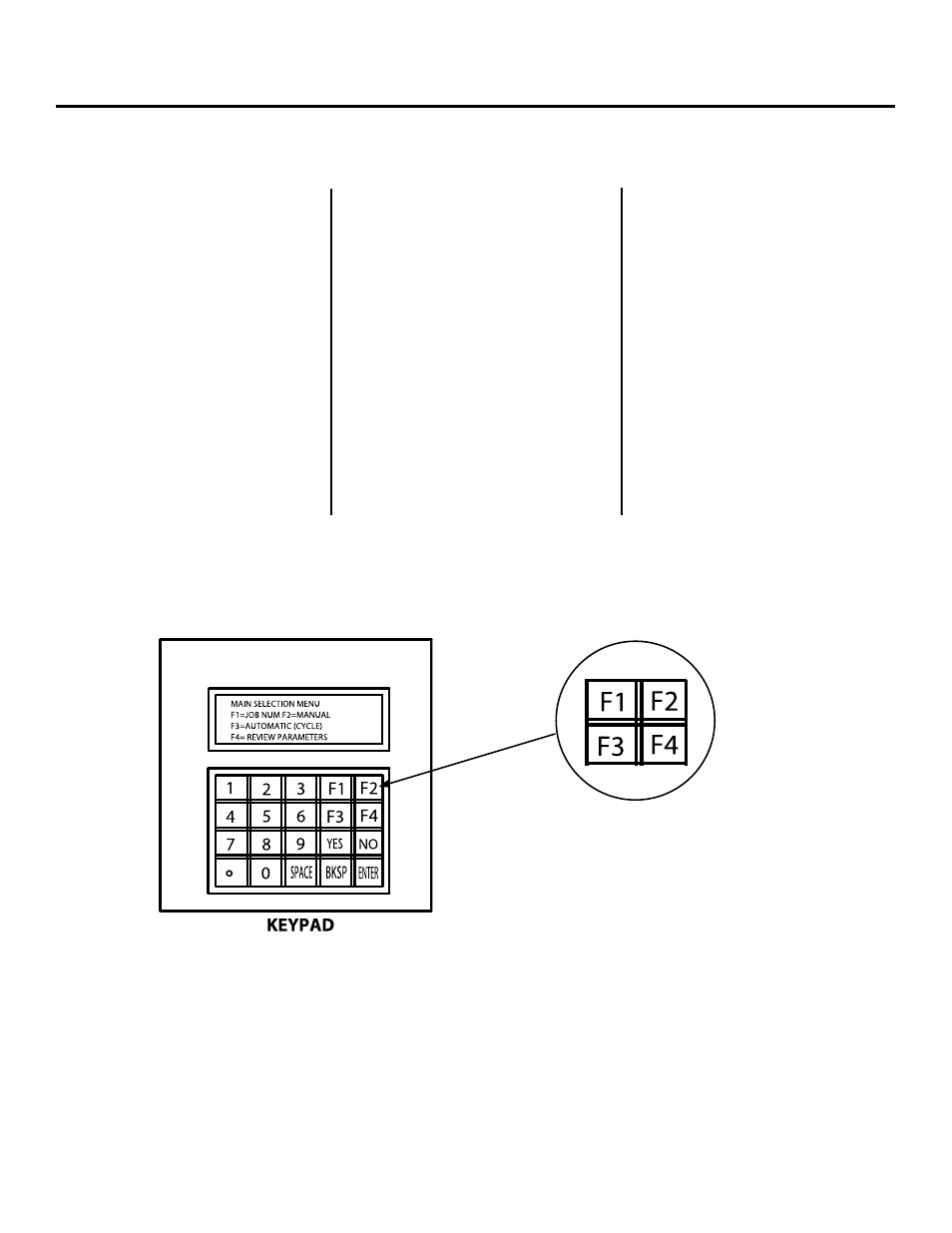

Note:
4 keys were chosen to have a double meaning,
arrows and “F” keys. The arrows were brought out
as the primary instead of the “F” keys. If you would
bear with us, we are looking at a correction.
