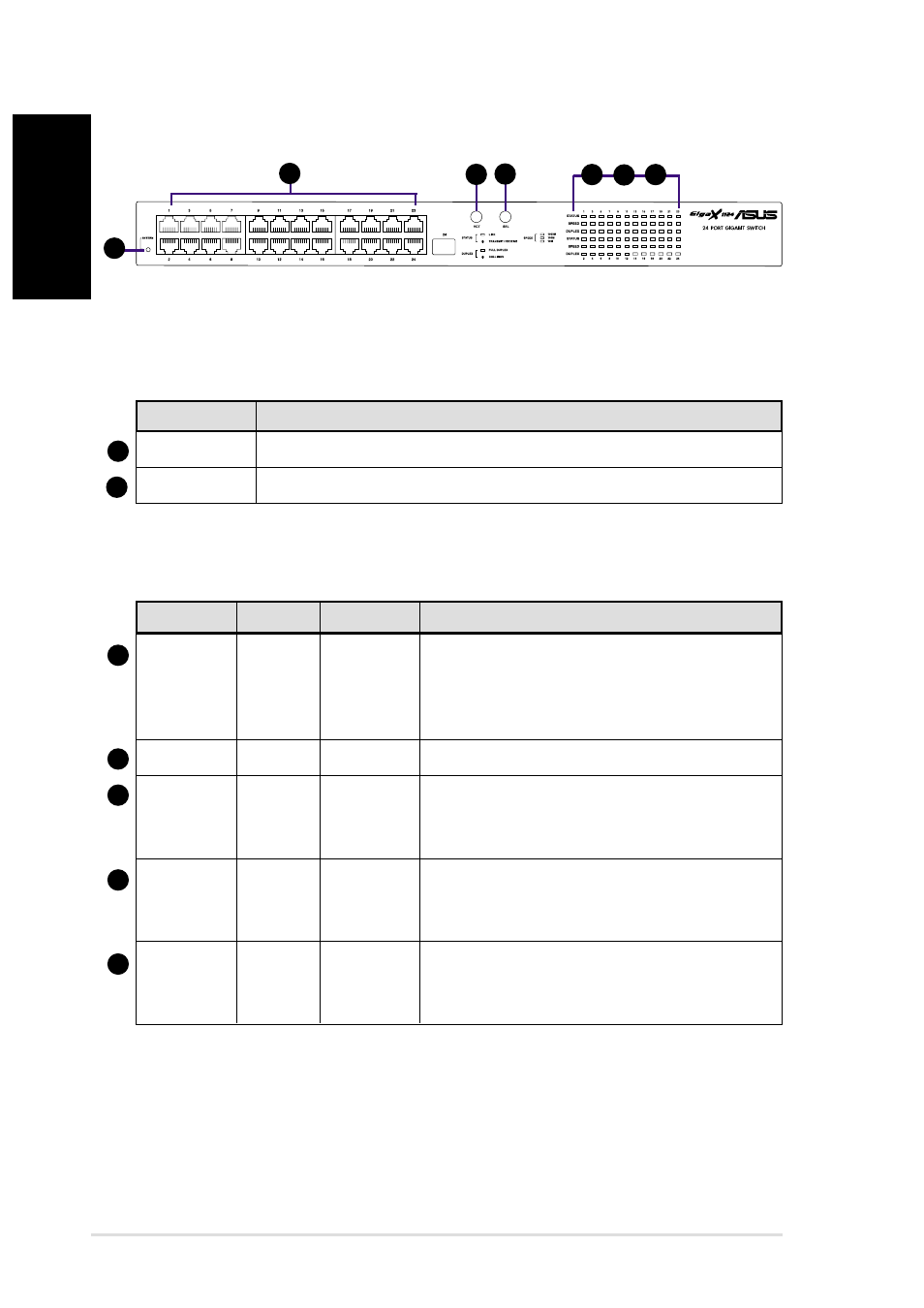

Page 4
4
ASUS GigaX 1124
English
Front Panel
Table 2
LED indications during normal operation
LED
Color
Status
Description
SYSTEM
Green
On
The switch is on and in normal operation.
Red
On
The switch is initializing or VCT is in
progress.
Off
The switch is off.
1 – 24
Port numbers
STATUS
Green
On
Ethernet link is established.
Blinking
Receiving or transmitting data
Off
No Ethernet link
SPEED
Green
On
1000 Mbps
Amber
On
100 Mbps
Off
10 Mbps or no Ethernet link
DUPLEX
Green
On
The switch is operating in full-duplex mode.
Amber
On
The switch is operating in half-duplex mode.
Off
No Ethernet link
Table 1
Buttons
BUTTON
Function
VCT
Start, execute, or exit VCT
SEL
Select the port to execute VCT
1 2
3
5
6
7
4
1
2
4
3
5
7
6
