1
A
LTEC
L
ANSING
AHP612 W
IRELESS
S
TEREO
H
EADPHONES
Box Contents
• Wireless stereo headphones
• Transmitter/charging base
• RCA cable
• 3.5 mm Y-adapter cable
• 3 AAA NiMH rechargeable batteries
• AC power adapter
• User’s manual and quick connect card
Introduction
The AHP612 headphones expand and enhance your enjoyment of
music or TV sound. Like FM radio, the 900MHz signal travels with ease
through walls, floors, ceilings and other obstacles, delivering high
quality stereo sound to virtually anywhere inside the house or out.
Delivering drift- and static-free reception along with outstanding
range — up to 150 feet (Range may vary according to environment) —
the possibilities for enjoying your AHP612 headphones are nearly
unlimited.
The AHP612 headphones are compatible with most audio sources, such
as TVs, DVD players, VCRs, A/V receivers/amps, stereos, computers, and
portable devices (CD players, cassette players, MP3s etc.).

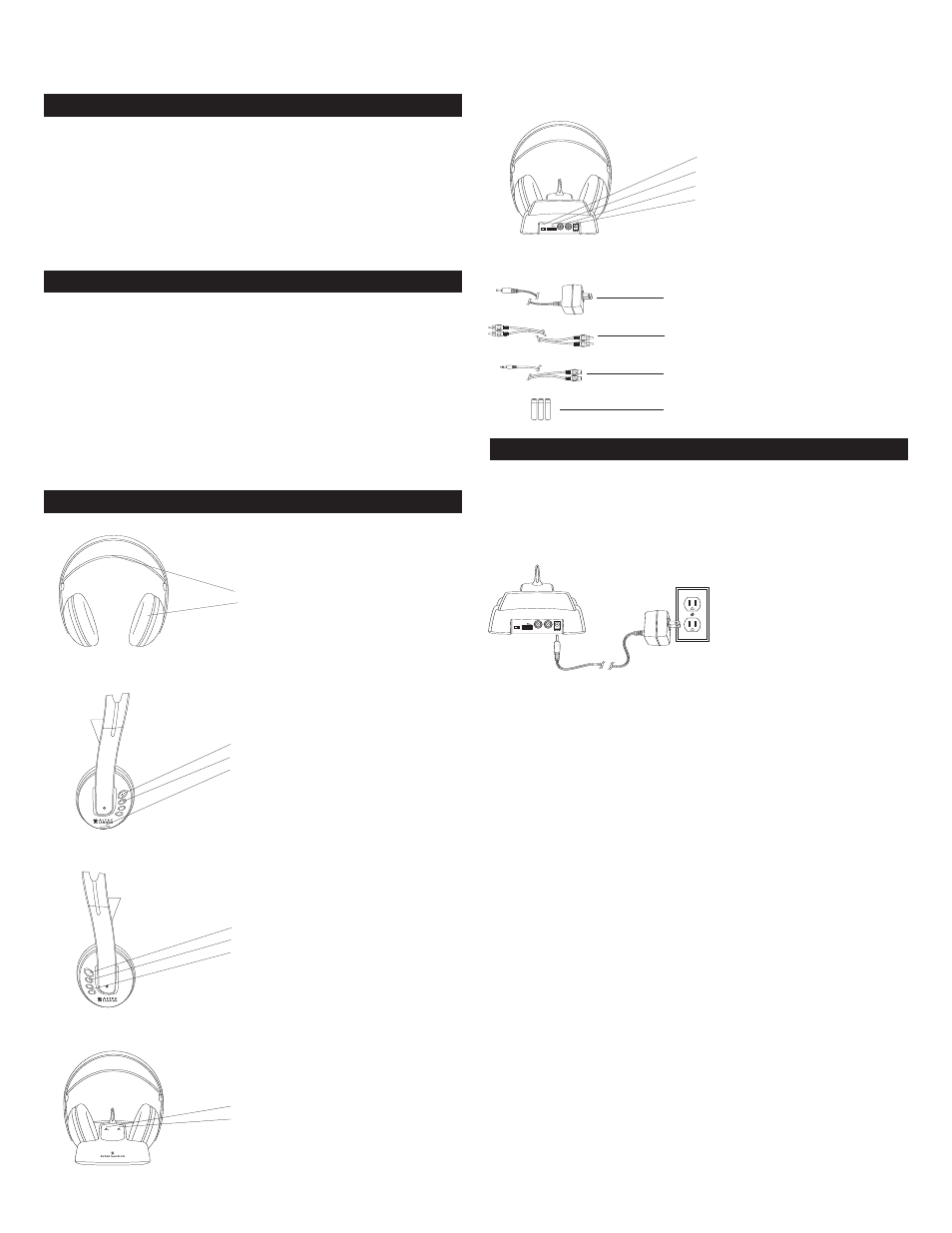

Location of Functions
Headphones (left ear cup)
Headphones (right ear cup)
Transmitter Front View:
Transmitter Back View:
Accessories:
Connecting the Headphone System
Powering the Transmitter
Connect the small, round plug from the transmitter AC power adapter
(O) to the transmitter power input jack (N) and plug the other end
of the transmitter AC power adapter (O) into any standard 120V AC
wall outlet.
Note: There is no transmitter ON/OFF switch. The transmitter is
designed to be left plugged in and powered at all times. If you do not
intend to use the AHP612 headphones for an extended period of time,
you may wish to unplug the transmitter AC power adapter.
Connecting to an AV receiver or television
• Locate the included red and white RCA cable (P).
• Connect one end of the RCA cable (P) to the matching red and white
RCA audio input jacks (M) located on the back of the transmitter,
and the other end to the back of your AV receiver.
Connecting to a computer:
• Locate the included red and white RCA cable (P) and 3.5mm
Y-adapter cable (Q).
• Connect the Y-adapter cable’s 3.5mm plug (Q) to the audio output
jack on your computer.
• Connect one end of the RCA cable (P) to the matching red and white
RCA jacks on the Y-adapter cable (Q), and the other end to the
matching red and white RCA jacks located on the back of the
transmitter (M).
Warning: This product is designed to work with line level outputs or
headphone outputs only. DO NOT connect it directly to speaker
outputs as it will permanently damage the transmitter.
(A) Self-adjusting headband
(B) Battery compartment cover
ON/OFF SCAN
LINK
(C) On/off/scan button
(D) LINK indicator light
(E) Charging contacts
+
– VOLUME
MUTE
(F) MUTE button
(G) MUTE indicator light
(H) Volume control
(I) Charge indicator light
(J) Audio level indicator light
CHANNEL
1 2 3
LEVEL
L INPUT R DC 12V
CHANNEL
1 2 3
LEVEL
L INPUT R DC 12V
CHANNEL
1 2 3
LEVEL
L INPUT R DC 12V
(K) Channel select switch
(L) Input level control
(M) RCA audio input jacks
(N) Transmitter power input jack
(O) Transmitter AC power adapter
(P) RCA cable
(Q) 3.5mm Y adapter cable
(R) 3 NiMH AAA batteries
CHANNEL
1 2 3
LEVEL
L INPUT R DC 12V
CHANNEL
1 2 3
LEVEL
L INPUT R DC 12V
CHANNEL
1 2 3
LEVEL
L INPUT R DC 12V
