4 Version 022013
Pumptec Operating Instructions and Parts Manual 110 GALLON FRESH WATER TANK

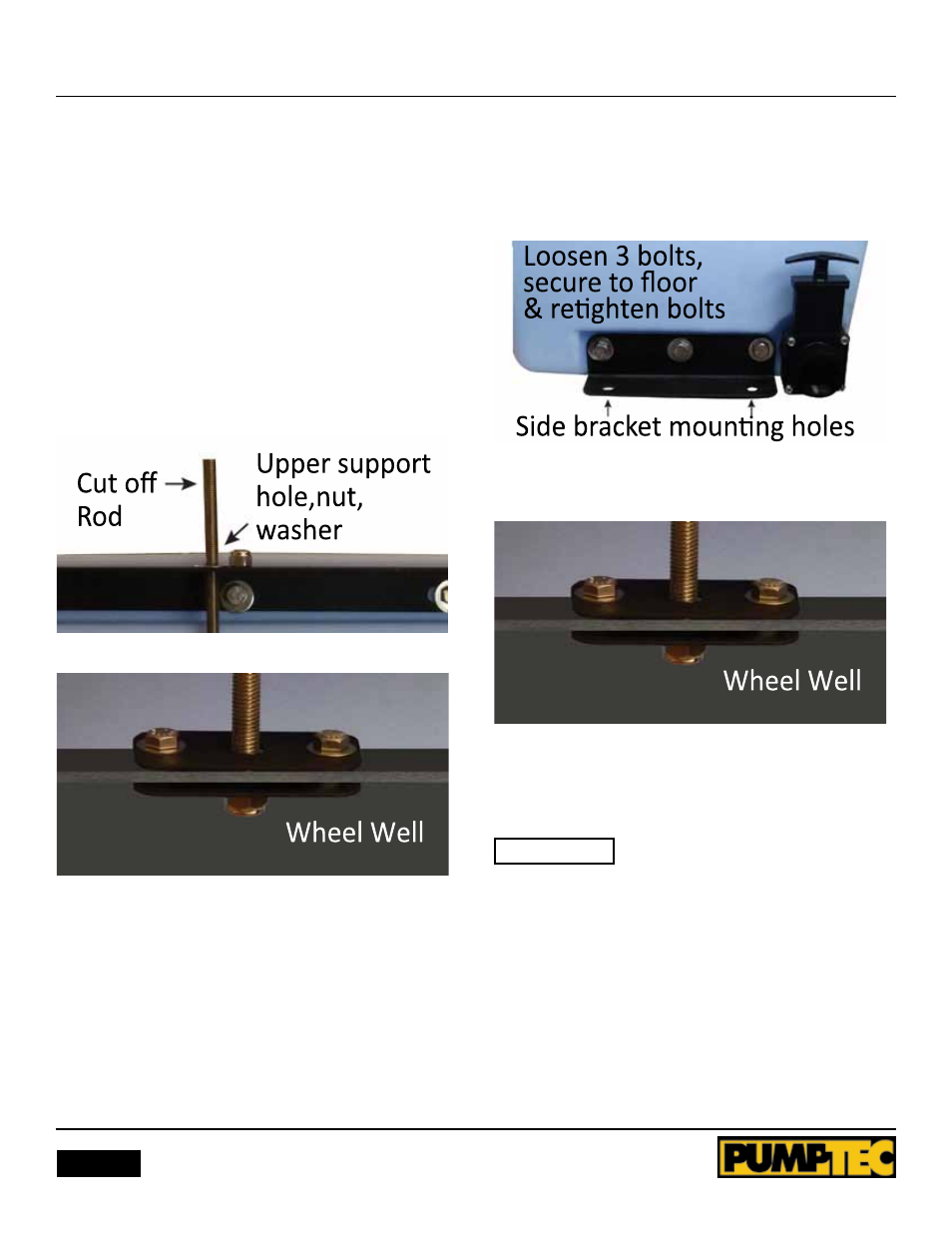

INSTALLING THE TANK INTO VEHICLE
Move the tank into the vehicle and place it onto the installed
Lower Support Assembly. There is a single hole on top of the
Upper Support Bracket attached to the top of the tank as seen
in Figure 5. Insert the threaded Rod through the hole and
thread it into the Lower Support Assembly. Align the holes on
the Upper and Lower Supports to keep rod vertical. Thread
Rod into the Lower Support as far as possible for strength
and stability. Thread the ½” X 13 hex nut and washer onto the
threaded rod and tighten until the water tank can no longer
move up and down. Turn the nut 3 more times. Cut off the
extra threaded rod to avoid possible injury. PUMPTEC INC
assumes NO liability or warranty for installation and improper
installation could void any warranty on the tank.
Figure 6
Figure 7
SECURING WATER TANK TO THE VEHICLE FLOOR
you will need to purchase four (4) ½” high grade bolts along
with 8 washers and 4 lock nuts that are long and adequate
enough in length to go through the bottom of vehicle floor.
High grade bolts can withstand the vibration and movement of
the vehicle better than lower grade/ quality bolts.
Loosen 3 bolts attaching side brackets to tank. Using bottom
holes of brackets as templates drill 4 holes through the floor
of the vehicle. Using the bolts, nuts, and washers you acquired,
bolt the tank to the floor of the vehicle. Retighten the 3 bolts
attaching side brackets to the tank. PUMPTEC INC assumes NO
liability or warranty for installation and improper installation
could void any warranty on the tank.
Figure 8
Tighten threaded rod and wheel well plate bolts.
Figure 9
If you purchased the pump system with the tank, see the
instructions enclosed with the pump for installation.
WArNINg!
THIS TANK WILL EXCEED 800 POUNDS
WHEN FULL OF WATER. IT IS IMPORTANT TO EVENLy
DISTRIBUTE WEIGHT OF ALL EQUIPMENT WITHIN VEHICLE FOR
STABILITy AND SAFETy. PUMPTEC INC assumes NO liability or
warranty for installation and improper installation along with
exceeding liquid weight stated above could void any warranty
on the tank.
Pumptec, Inc. is not responsible for losses, injury, or death
resulting from a failure to observe these safety precautions,
misuse or abuse of pumps or equipment.
