8 Version 012313
Pumptec Operating Instructions and Parts Manual PUMP SERIES 114T
9. Place manifold on top of plunger and head assembly. It may
be necessary to move heads on plunger to have valves align
with valve pockets on manifold. be careful to not lose the
o-rings or valves in the manifold during re-assembly. You may
hear a click when everything is aligned.
10. Place nut in to hex cavity behind head while inserting
shorter bolts and washer assembly into manifold. Tighten to
close gap between manifold and head, but DO nOT tighten
completely at this time.

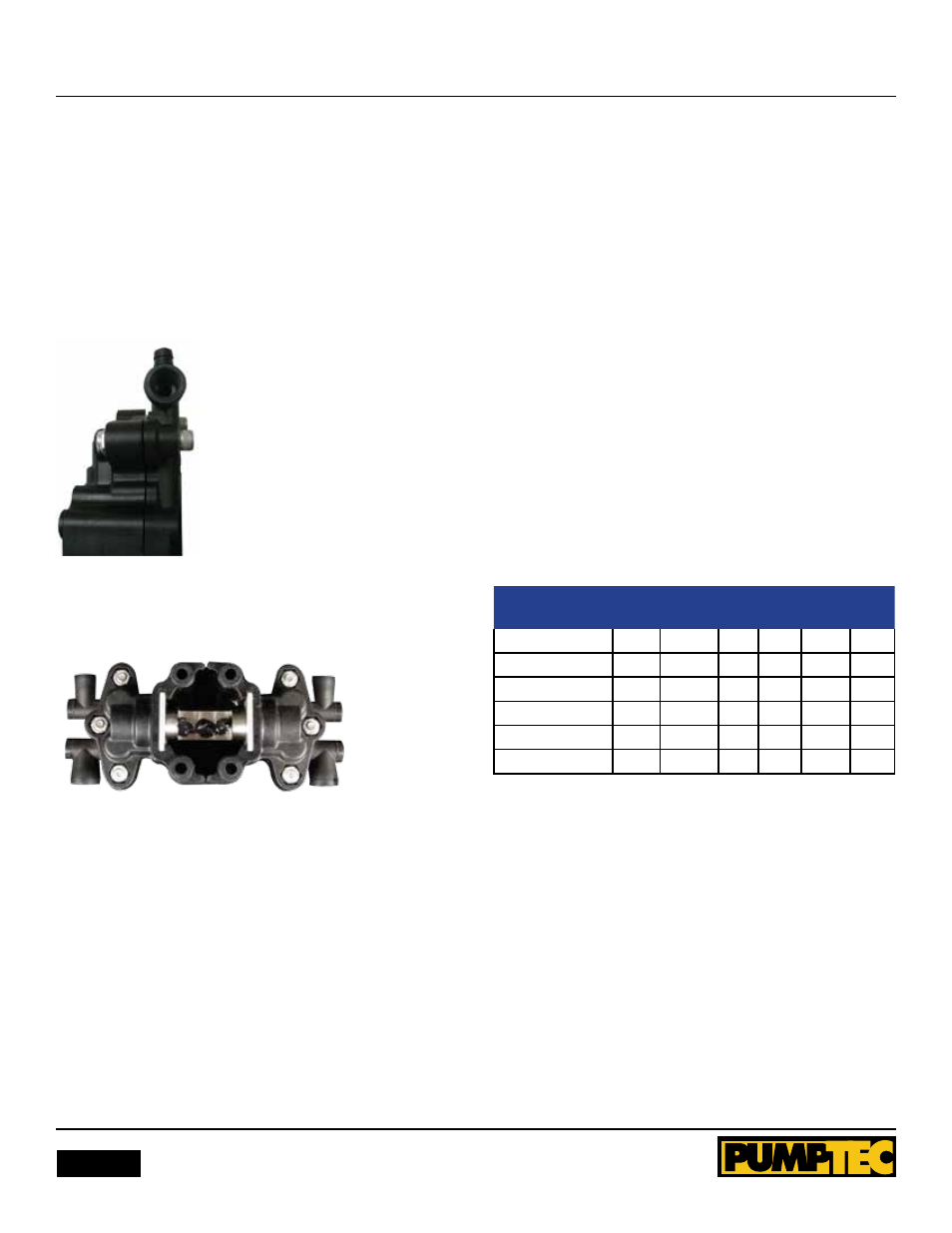

Figure 7
11. Install black grease from included packet into corners and
center of plunger slot as shown.
Figure 8
11. Mount pump back onto motor and tighten mounting bolts
to 14 in/lbs of torque. Tighten head bolts to 14 in/lbs of torque.
LuBriCAtiON
Apply 1.5 oz of suppliers black grease to the corners and center
of plunger slot at the time of service.
StorINg
For extended storing, or between use in cold climates, drain all
pumped liquids from pump and flush with antifreeze solution
to prevent freezing and damage to the pump. DO nOT RUn
PUMP WITH FROZEn lIQUID.
Note: Each system’s maintenance cycle will be unique. If
system performance decreases, check immediately. If no wear
at 500 hours, check again at 1000 hours and each 500 hours
until wear is observed. Valves typically require changing every
seal change. Duty cycle, temperature, quality of pumped liquid
and inlet feed conditions all effect the life of a pump’s wear
parts and service cycle.
Note:
Remember to service the regulator/uploader at each
seal servicing and check all system accessories and connections
before resuming operation.
PrEVENtiVE MAiNtENANCE CHECkLiSt
Check daily weekly 50
Hrs.
500
Hrs.
1500
Hrs.
3000
Hrs.
Clean Filters X
Water leaks X
Descale Pump X X
Cam & bearing X X
Seal Change X X
Valve Change X X
