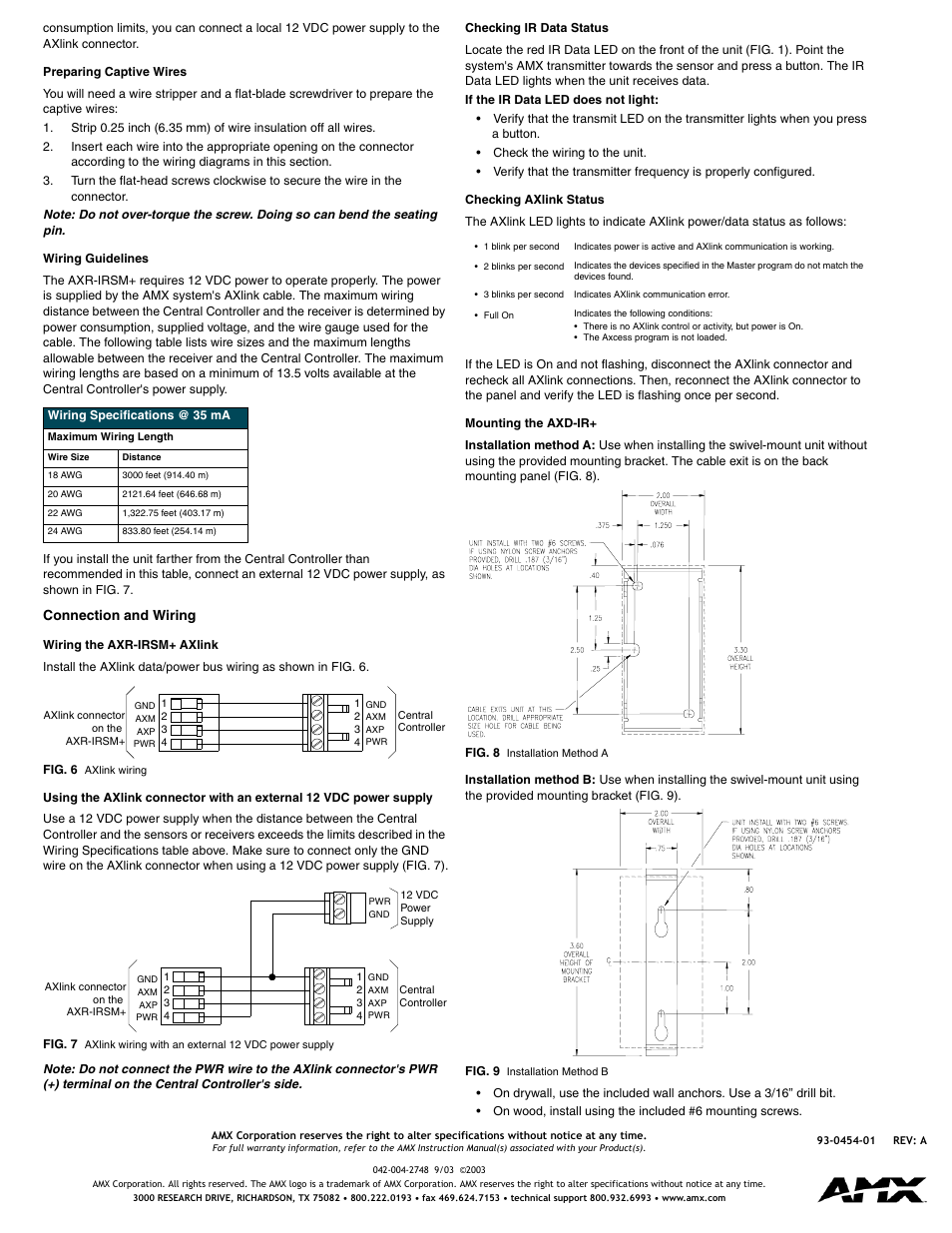

Preparing captive wires, Wiring guidelines, Connection and wiring – AMX AXR-IRSM+ User Manual
Page 2: Wiring the axr-irsm+ axlink, Checking ir data status, Checking axlink status, Mounting the axd-ir
