Amplifier 1ch100 User manual
1PA100
October 10, 2004 Release: 1.30 2002 by Pacific Laser Equipment
1.2 Labels.
Rear panel label displays the power requirements and the unit serial number.

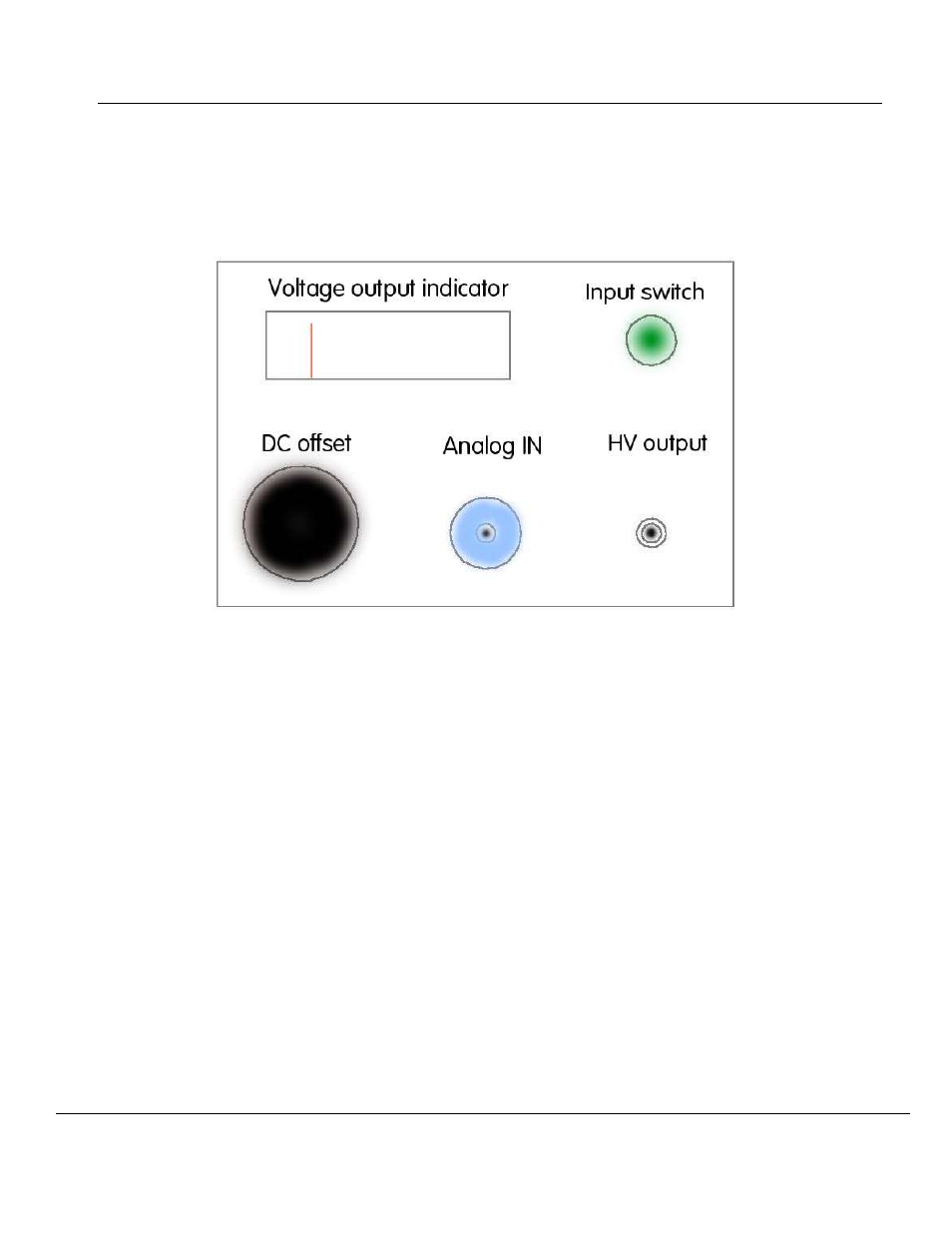

Top cover the label shown bellow displays a “map” of the front panel controls and connectors.
1.3 Operation.
Two operating modes can be selected from the front panel.
Remote Controlled (RC) and Manually Controlled (MC).
Remote Controlled Operation (RC-Mode)
The nominal input voltage range is 0 to +5 V for 0 to +150 V output voltage range.
For bipolar operation set the output with the external DC-Level potentiometer to an appropriate
level (+75 V) and drive the input with 0 to +5 V to get full voltage output swing.
In RC mode an analog input signal of 0 to +5 V causes the output to swing from 0 to 150V.
Most dynamic applications require the power amplifier to deliver a short peak current higher
than the average value.
The operating voltage for the piezo actuator may change in the range from 0 to +150 V. Our
standard calibration procedure assures that that the output reaches its nominal value when the
input control signal is +5 Volt.
PLEquipment, 3941 S. Bristol St. Unit E, # 122, Santa Ana, CA. 92704,  800 984-3482, Fax: 509-355-5155, [email protected]
Page 4 of 9
