35
34
HP-1/8 Red Plastic Hose
A-1/8 Braided Air Hose

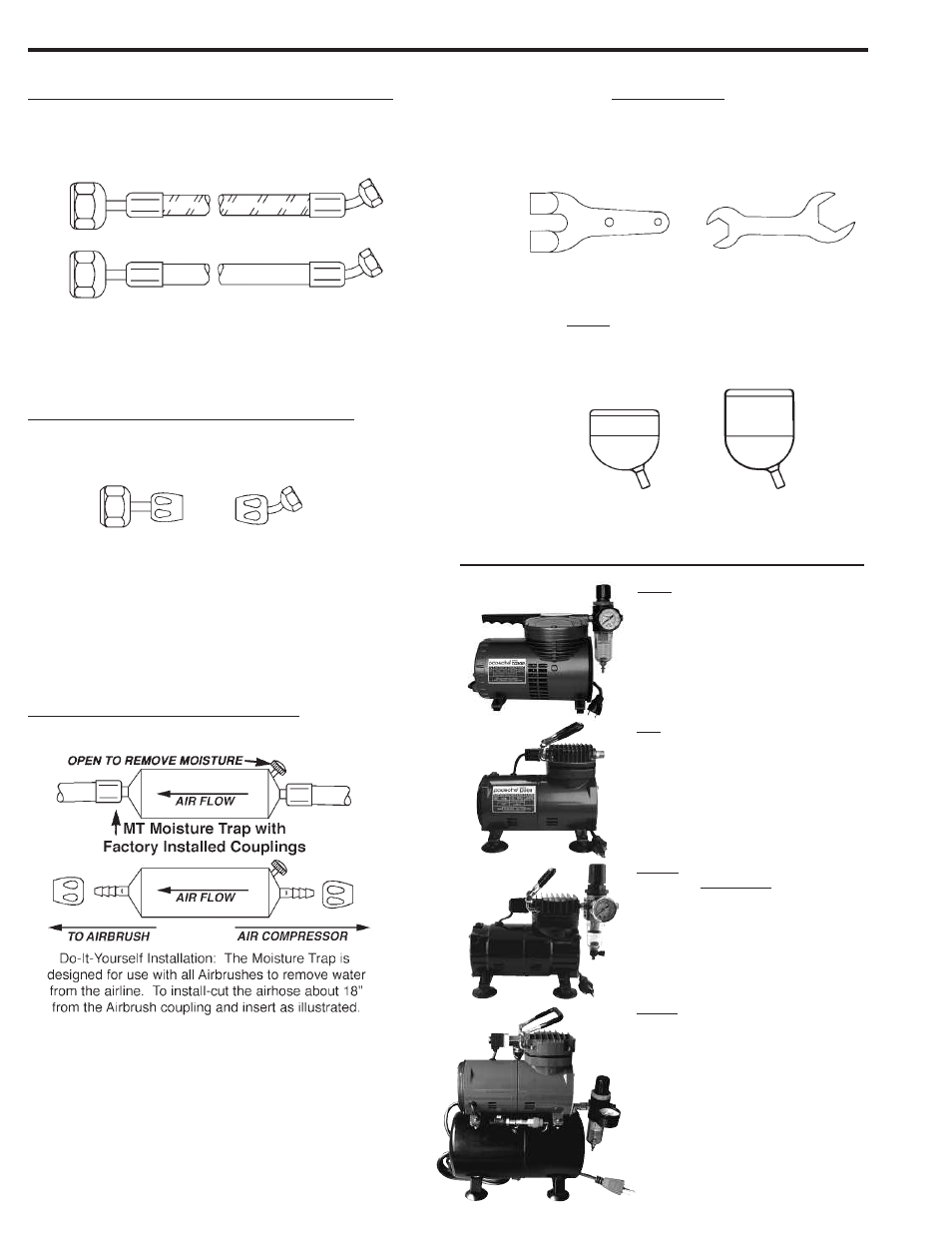

Paasche® VSR90#1 Gravity Feed, Double Action Airbrush Page 4
AIRHOSES W/FACTORY INSTALLED COUPLINGS
34. A-1/8 Braided Airhose W/Couplings
35. HP-1/8 Red-Plastic Airhose W/Couplings
Recommended Compressors and Accessories
ACCESSORIES
36. A-34 Hanger
37. V-62 Wrench
36 37
CUPS
40. VSR-1 1/8 oz. (3.5cc) Cup
41. VSR-2 3/16 oz. (5.25cc) Cup
40 41
COUPLINGS - OLD STYLE REPLACEMENTS
38. AC-1/8 Coupling (To Compressor)
39. AC-20 Coupling (To Airbrush)
38 39
MT MOISTURE TRAP INSTALLATION
D220R AIR COMPRESSOR (1/6 H.P.), with
Switch & R-75 Regulator
Economical and suitable for all airbrushes
spraying properly thinned fluids. It is capable of
delivering 30 - 45 P.S.I. operating pressure
depending on airbrush being used. The
Paasche D220R is an oilless diaphragm unit
and comes with the R-75 Regulator/Filter with
gauge. It operates on 110-120 Volt, 1 phase,
60Hz, and delivers .7 C.F.M. @ 20 P.S.I.
Shipping Weight: 11 lbs. (5kg)
D500 AIR COMPRESSOR (1/8 H.P.) (ETL Listed)
Economical and suitable for all airbrushes spraying
properly thinned fluids. It is capable of delivering up to
35 P.S.I. operating pressure depending on airbrush
being used. The Paasche D500 is an oilless piston
compressor. It operates on 110-120 Volt, 1 phase,
60Hz, and delivers .4 C.F.M. @ 20 P.S.I.
Shipping Weight: 8 lbs. (3.6kg)
DA300R AIR COMPRESSOR (1/6 H.P.)
with Switch CSA approved & R-75 Regulator
1/8 H.P. Piston Compressor with Auto shutoff.
Compressor shuts off when airbrush is not in
use. Operating pressure is 20 - 30 P.S.I.
depending on airbrush being used, delivers up
to 35 psi. 120 VAC, 1 Ph, 60 Hz, 1.4 A, 20L/Min.
(0.7CFM), Noise 53dB, 1720 rpm.
Shipping Weight: 9.14 lbs. (4.6 kgs)
D3000R AIR COMPRESSOR (1/8 HP)
(ETL Listed)
This piston compressor is a tank mounted unit,
designed for compactness and portability. The
sturdy air tank stores reserve air volume and
reduces pulsation. Air pressure in the tank is
regulated with an automatic on/off limit switch to
a maximum of 40 P.S.I. Unit maintains 30 P.S.I.
for extended periods. The unit has a five foot
grounded 3 wire cord. The compressor features
a 1/8 HP motor which operates on 115 Volts, 1
Phase, 60Hz and draws .9 AMPS.
Shipping Weight: 14 lbs. (6.33kg)
