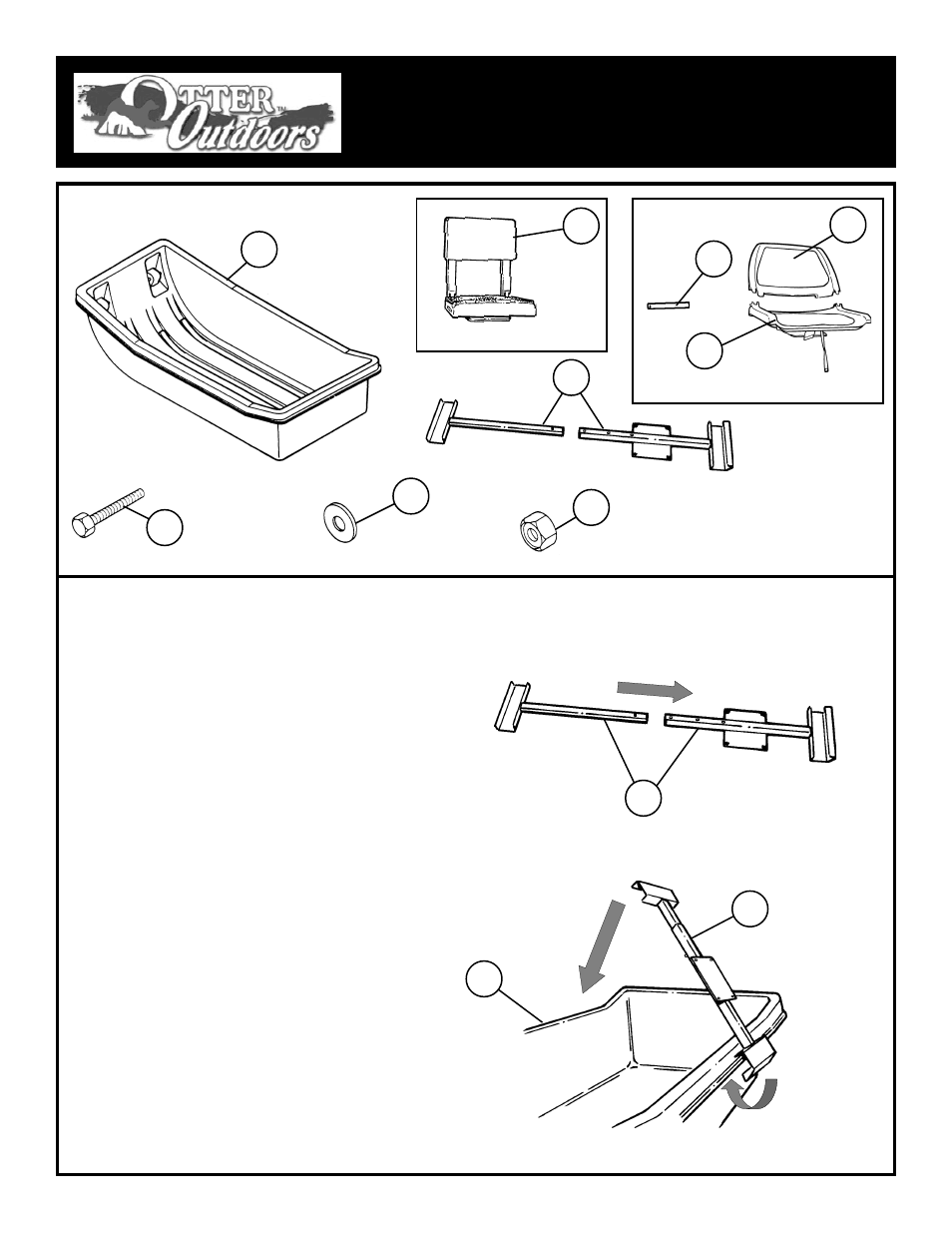

Otter Outdoors Cushion Bracket Seat - Manual

Otter II Fish House Seat
Installation and Set-Up Instructions
Sled
(Sold Separately)
1
2
Seat Brace (Qty 1)
3
Parts Identification:
Tools Required:
7/16 Box End Wrench
7/16 Socket and Rachet
Hammer
Installation:
1.
Layout all parts.
2. Slide the two pieces of the seat brace (Item
2) together. Hold pin in and slide to desired
position. See Diagram 1.
3. Attach seat brace (Item 2) under the front
edge of the sled (Item 1) as shown in
Diagram 2. Than lower the seat brace and
let it rest on the opposite sled edge.
Diagram 1
Diagram 2
2
2
1
7
8
9
1/4 x 1 Hex Bolt
(Qty 4)
5/16 Washer
(Qty 8)
1/4 Nylon
Hex Lock Nut
(Qty 4)
5
Pin
(Qty 2)
6 Seat
Backrest 4
Deluxe
Economy
Seat
