3. Wiring Instructions
Introduction
The crossover is encapsulated in a chamber in the bottom of the speaker
cabinet, minimizing the effect of vibration on the components. The
Ascendant is equipped with a high-quality binding post for connecting the
speaker cables. Spade lugs designed for #10 screws are recommended for
cable termination.
Connecting the Speaker to the Amplifier
1. Place the speaker in its approximate location.
2. Connect the speaker wires to the binding post on the speaker back
(see Figure 3.1).Check to insure the correct polarity (positive lead
connected to the (+) post and negative lead connected to the (-) post.
WARNING: Do NOT over-tighten the screws.
3. Begin listening.

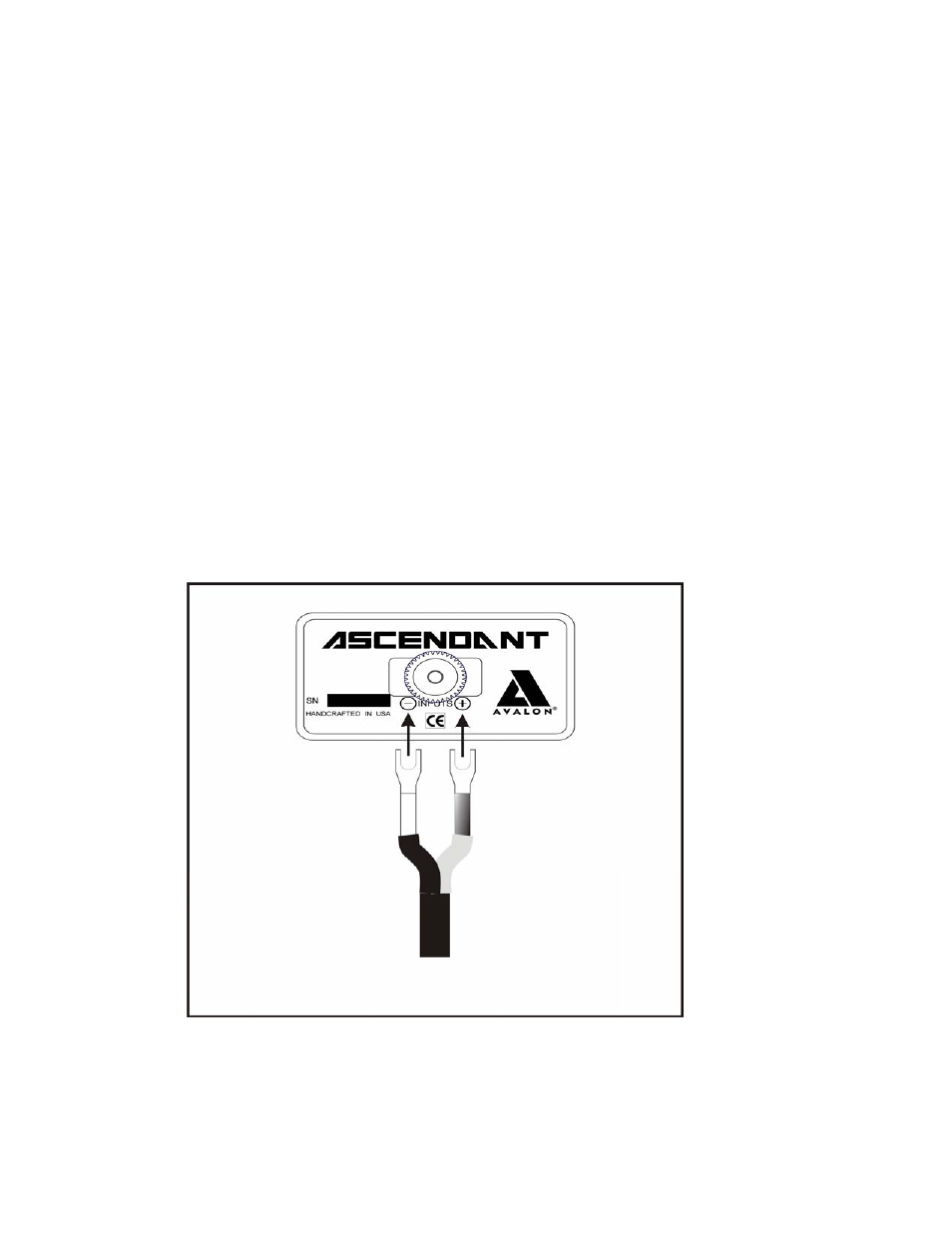

Figure 3.1 - Bottom view of the speakers showing the connections from the
amplifier to the loudspeaker. Check to insure the correct polarity (positive lead
connected to the (+) post and negative lead connected to the (-) post.
