2.7.2 Expansion card installation

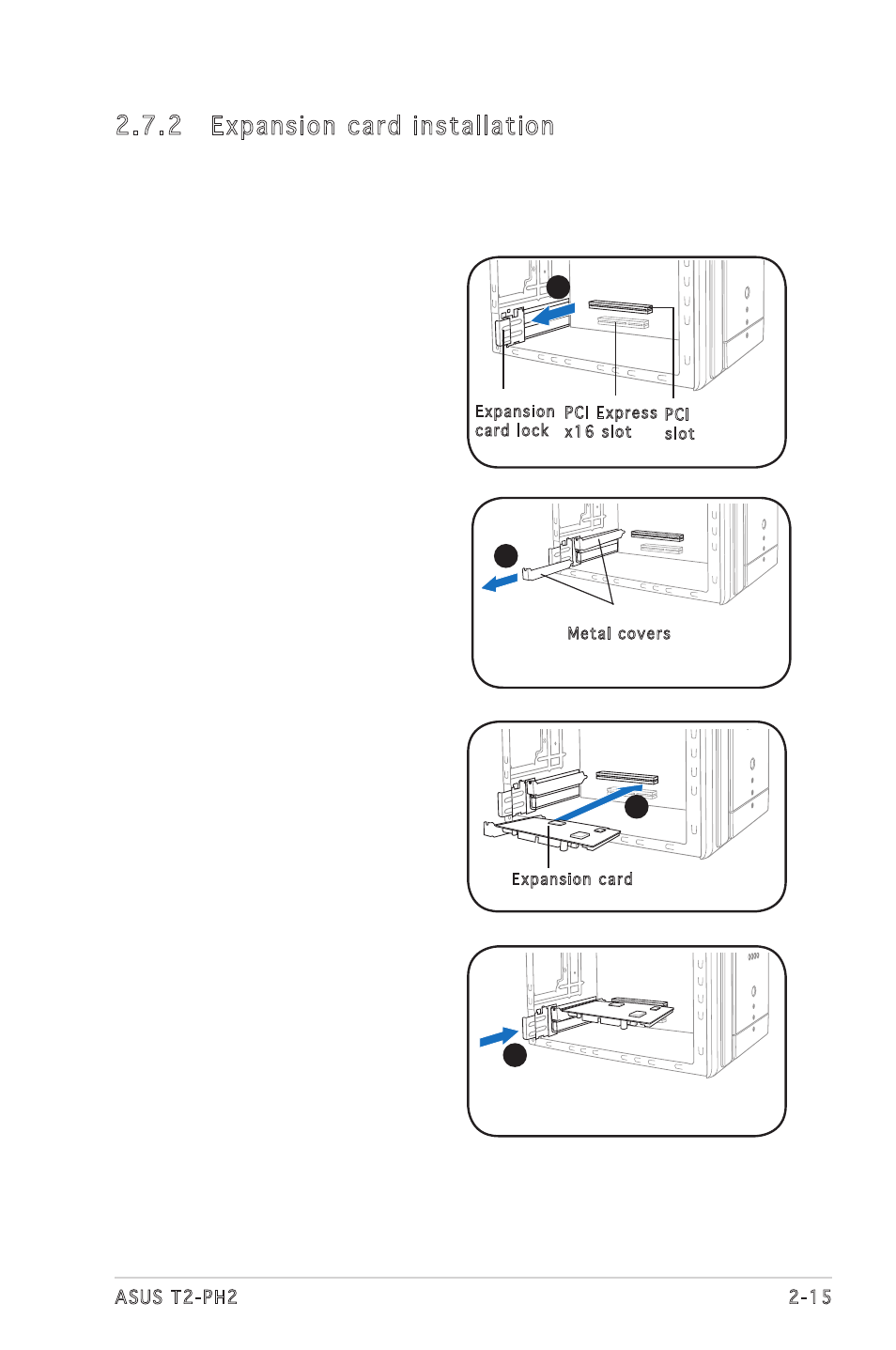

To install an expansion card.
1. Before installing the expansion card, read the documentation that
came with it and make the necessary hardware settings for the card.
2. Pull the expansion card lock to
the direction of the arrow.
3. Remove the metal cover
opposite the slot that you intend
to use.
5. Replace the expansion card
lock to secure the card to the
chassis.
4. Align the card connector with
the slot and press firmly until
the card is completely seated
on the slot.
Expansion
card lock
PCI
slot
PCI Express
x16 slot
2
Expansion card
4
5
Metal covers
3
