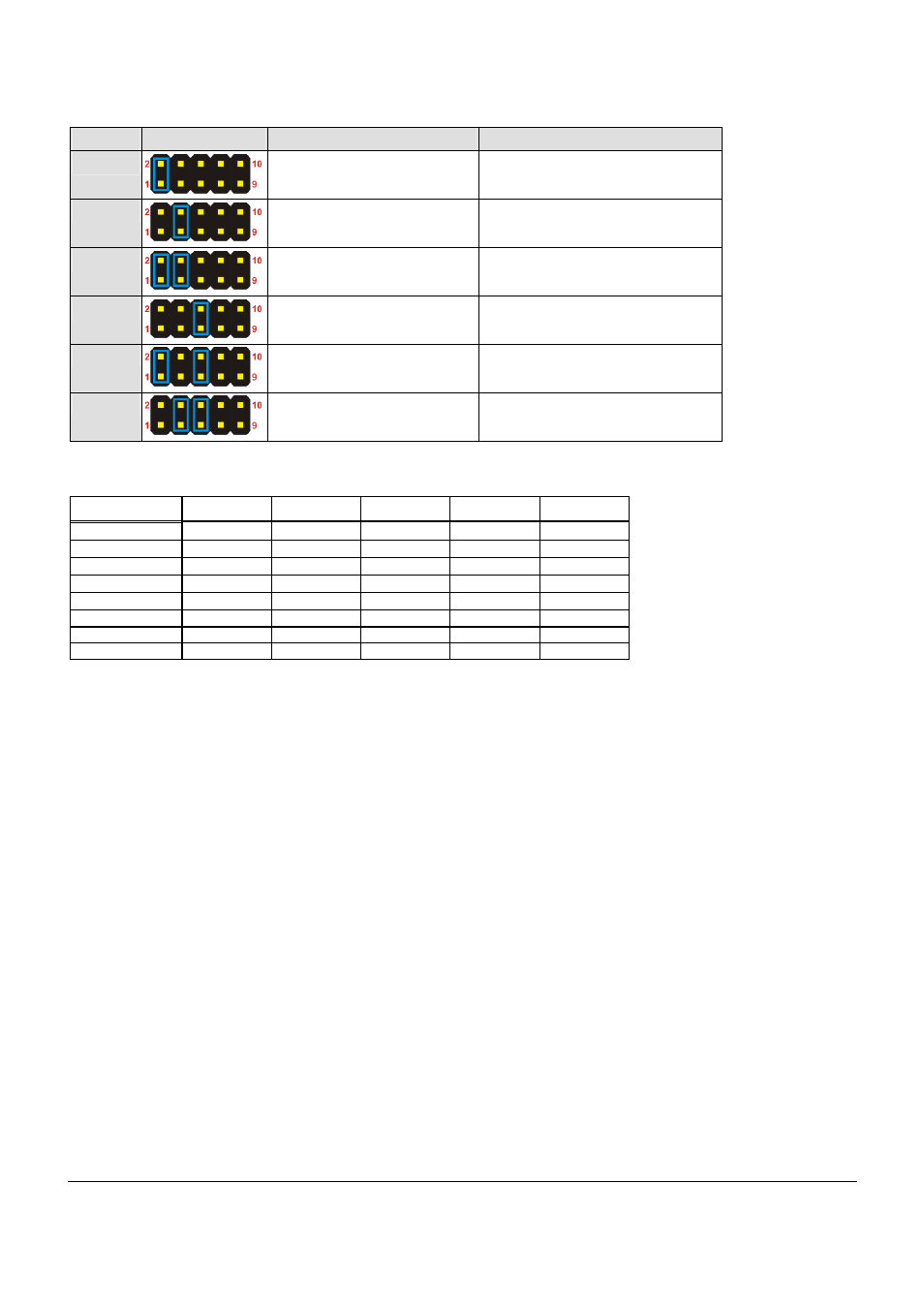

OPERATION MODE SELECT JUMPER (CN18)
Jumper Soft Off Delay Hard Off Delay
Case 1 After 10 seconds, shut down
motherboard.
After 10 seconds, shut down motherboard
and cut off 5VSB rail.
Case 2 After 15 seconds, shut down
motherboard. After 45 seconds, cut off 5VSB rail.
Case 3 After 15 seconds, shut down
motherboard. After 1 hour, cut off 5VSB rail.
Case 4 After 15 seconds, shut down
motherboard. Never deactivate 5VSB.
(Still monitor batter status)
Case 5 After 40 seconds, shut down
motherboard. After 1 hour, cut off 5VSB rail.
Case 6 After 30 minutes, shut down
motherboard. Never deactivate 5VSB.
(Still monitor batter status)
Table 10: Operation Modes
FUNCTION Pin 1-2 Pin 3-4 Pin 5-6 Pin 7-8 Pin 9-10
Case 1 short open open open
Case 2 open short open open
Case 3 short short open open
Case 4 open open short open
Case 5 short open short open
Case 6 open short short open
Auto_On short
Manual_On open
Table 0-11: Operation Mode Select Jumper Pinouts
