3.8.2 Headset Jack
The headset jack on the side panel enables the ICECARE-07 to be connected to the
supplied headset.
3.8.3 Mini USB Client Connector
The ICECARE-07 is equipped with a Mini USB client connector that allows connection to a
computer. To connect the ICECARE-07 to a computer, please follow the instructions
below.
Step 1: Locate the Mini USB client connector. The location of the Mini USB client
connector is shown in
44
Figure 1-5 .
Step 2: Connect the Mini USB plug of the supplied USB Type A to Mini-B cable to the
Mini USB connector on the ICECARE-07 (Figure 3-17).

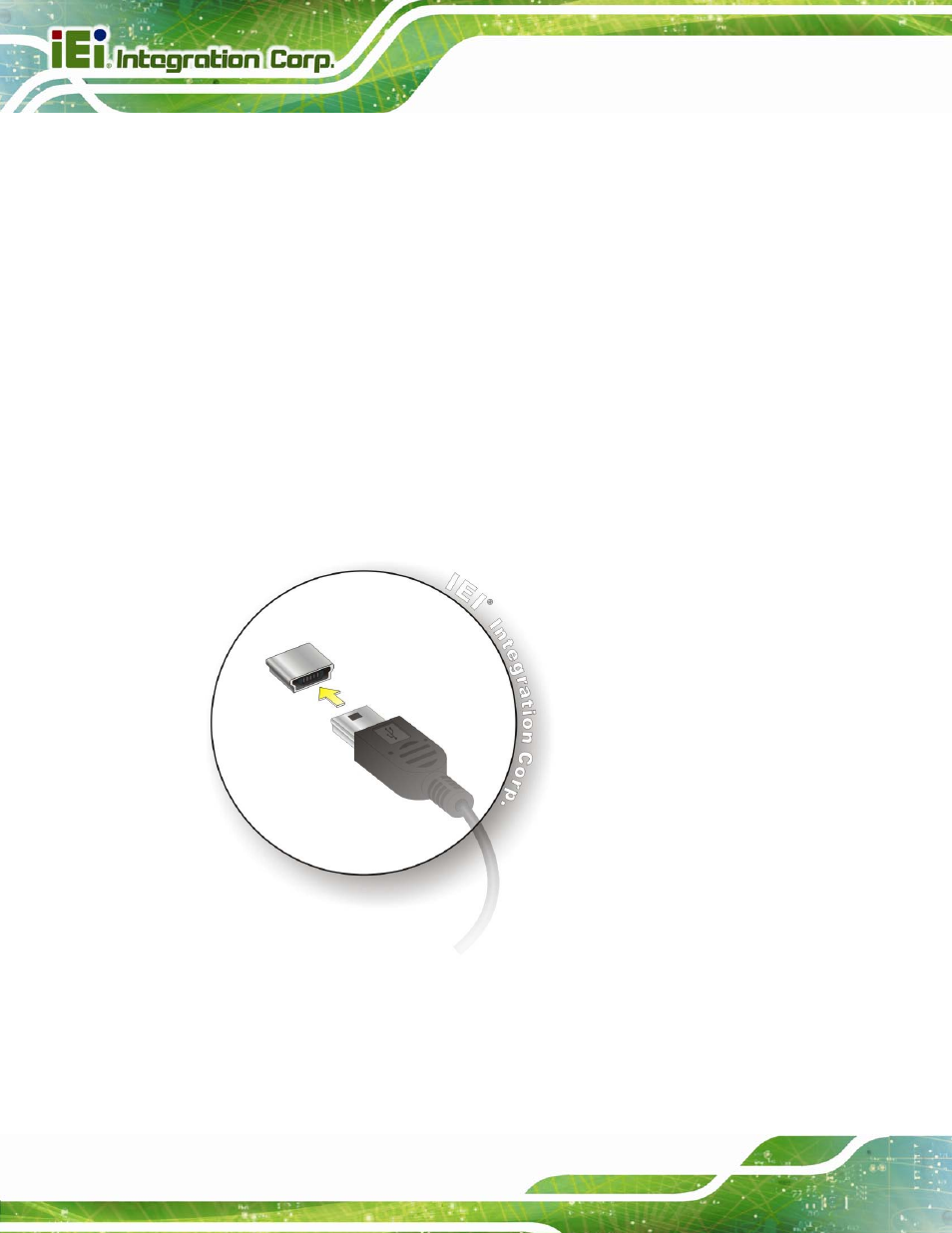

Figure 3-17: Mini USB Connection
Step 3: Connect the other of the cable to the USB connector of a computer.
