ICELOG-07 Mobile Elite Manager
Page 15
To start using the ICELOG-07, the user must charge the ICELOG-07 by the power adapter.
To charge the ICELOG-07, please follow the steps below.
Step 1: Open the protective cover on the bottom panel to expose the Micro USB port.

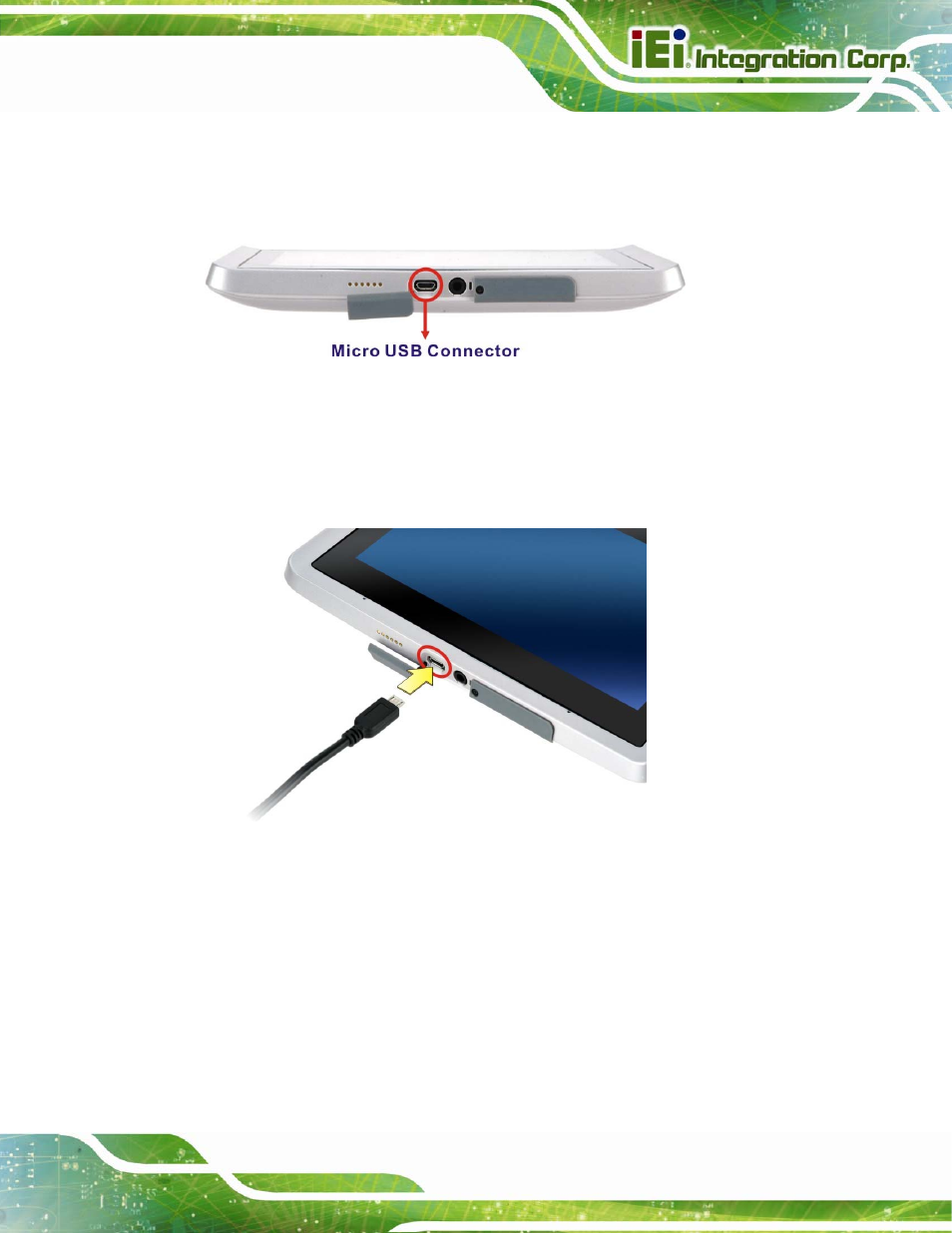

Figure 3-1: ICELOG-07 Micro USB Port
Step 2: Connect the Micro USB plug of the Micro USB cable to the Micro USB connector
of the ICELOG-07 (Figure 3-2).
Figure 3-2: Connecting the Micro USB Cable to the ICELOG-07
Step 3: Connect the other end of the Micro USB cable to the USB connector of the
power adapter (Figure 3-3).
Then plug the power adapter to a power source.
OR connect the Micro USB cable directly to a computer.
