EP-308A POS
Page 15

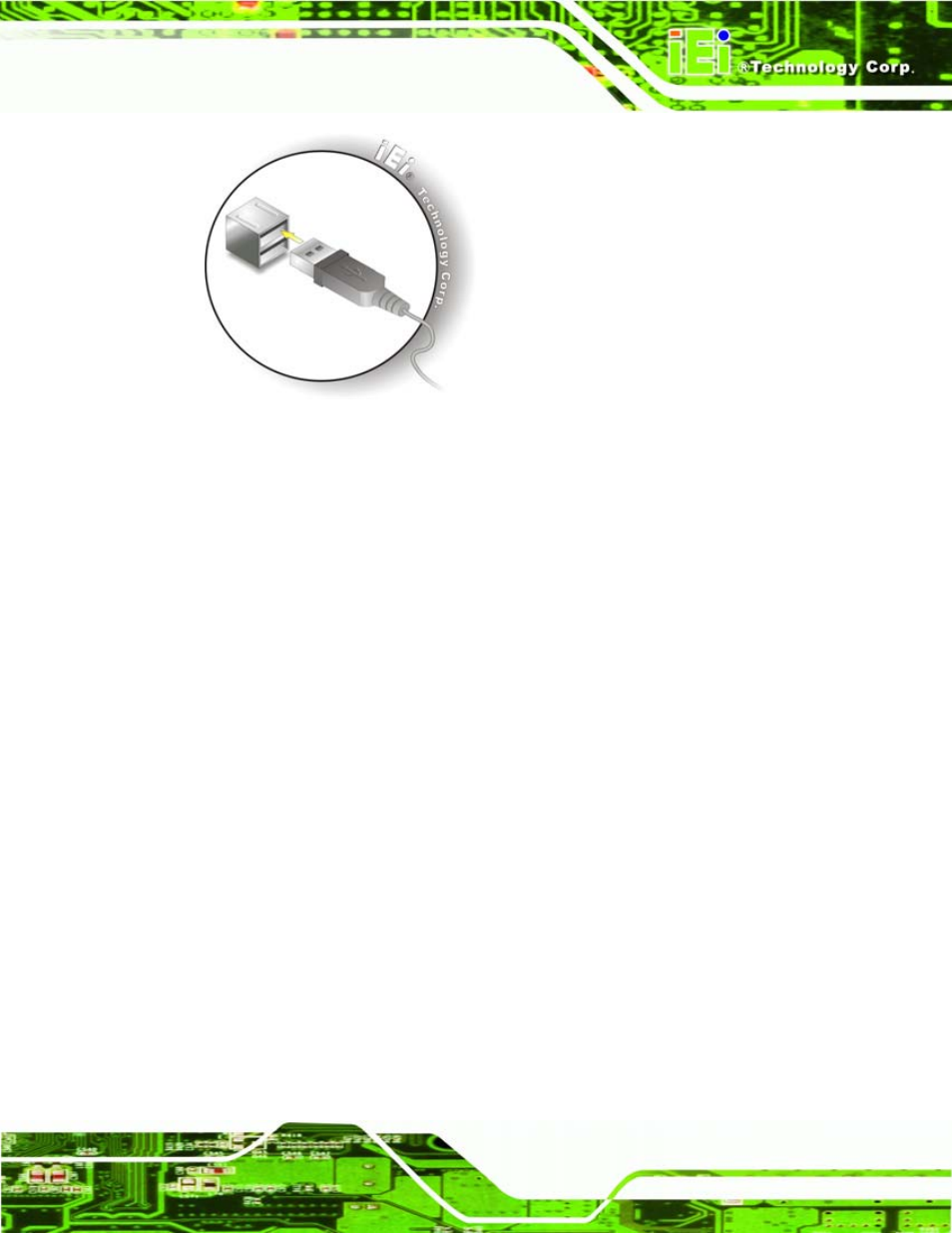

Figure 2-7: USB Device Connection
Step 3: Insert the device connector. Once aligned, gently insert the USB device
connector into the onboard connector. Step 0:
2.5.4 VGA Monitor Connection
The EP-308A has a single female DB-15 connector on the external peripheral interface
panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor
to the EP-308A, please follow the instructions below.
Step 1: Locate the female DB-15 connector . The location of the female DB-15
connector is shown in Chapter 3.
Step 2: Align the VGA connector . Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector . Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
EP-308A. See Figure 2-8.
