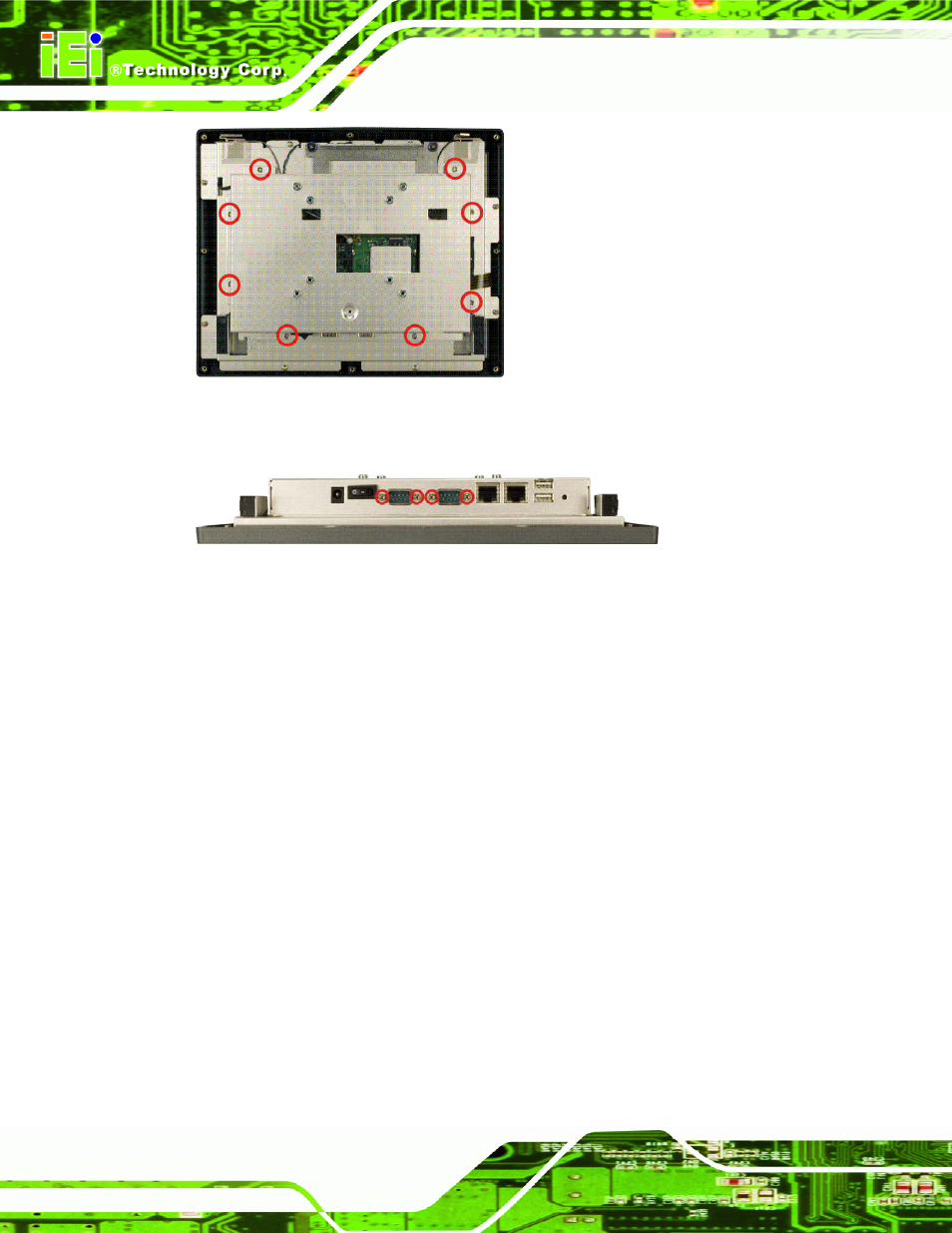

Figure 4-10: AFL-12A-LX Aluminum Back Cover Retention Screws
Step 2: Remove the four hexagonal pillars on the bottom panel (
4
Figure 4-11 ).
Figure 4-11: Four Hexagonal Pillars on the Bottom Panel (AFL-12A-LX)
Step 3: Push the external interface connector apart from the aluminum cover and lift the
aluminum cover off the AFL-12A-LX.
Step 4: Disconnect the power switch cable from the motherboard and remove the
aluminum cover. Step 0:
4.4 Memory Module Replacement
The flat panel PC is preinstalled with a 256MB/512MB DDR memory module. If the
memory module is fail, follow the instructions below to replace the memory module.
Step 1: Remove the back cover. See Section
4
3.5 above.
Step 2: Remove the internal aluminum back cover. See Section
4
4.3 above.
Step 3: Locate the DDR memory module on the motherboard of the flat panel PC
(
4
Figure 4-12 ).
