Step 7:

Tighten the screws that pass through the wall mounting screw holes until the

screws are firmly secured to the wall.

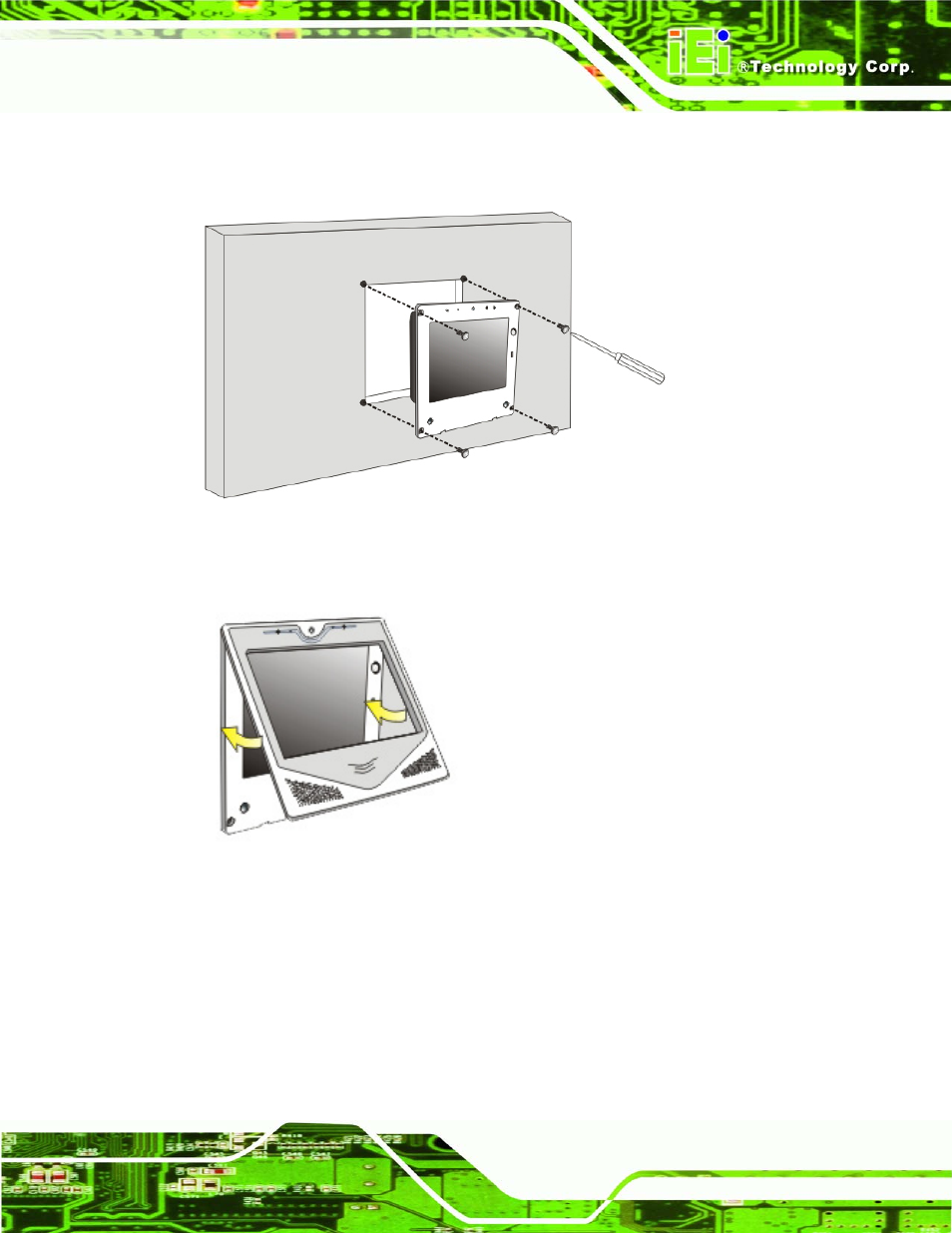

Figure 2-11: Tighten the In-wall Mounting Screws

Step 8:

Install the faceplate. Snap faceplate onto the ACT-457A frame.

Figure 2-12: Faceplate Installation

2.7.3 Arm Mounting

The ACT-457A can be mounted on a VESA compliant 75 mm x 75 mm connector.

Step 1:

The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation

that came with the mounting arm.
