4

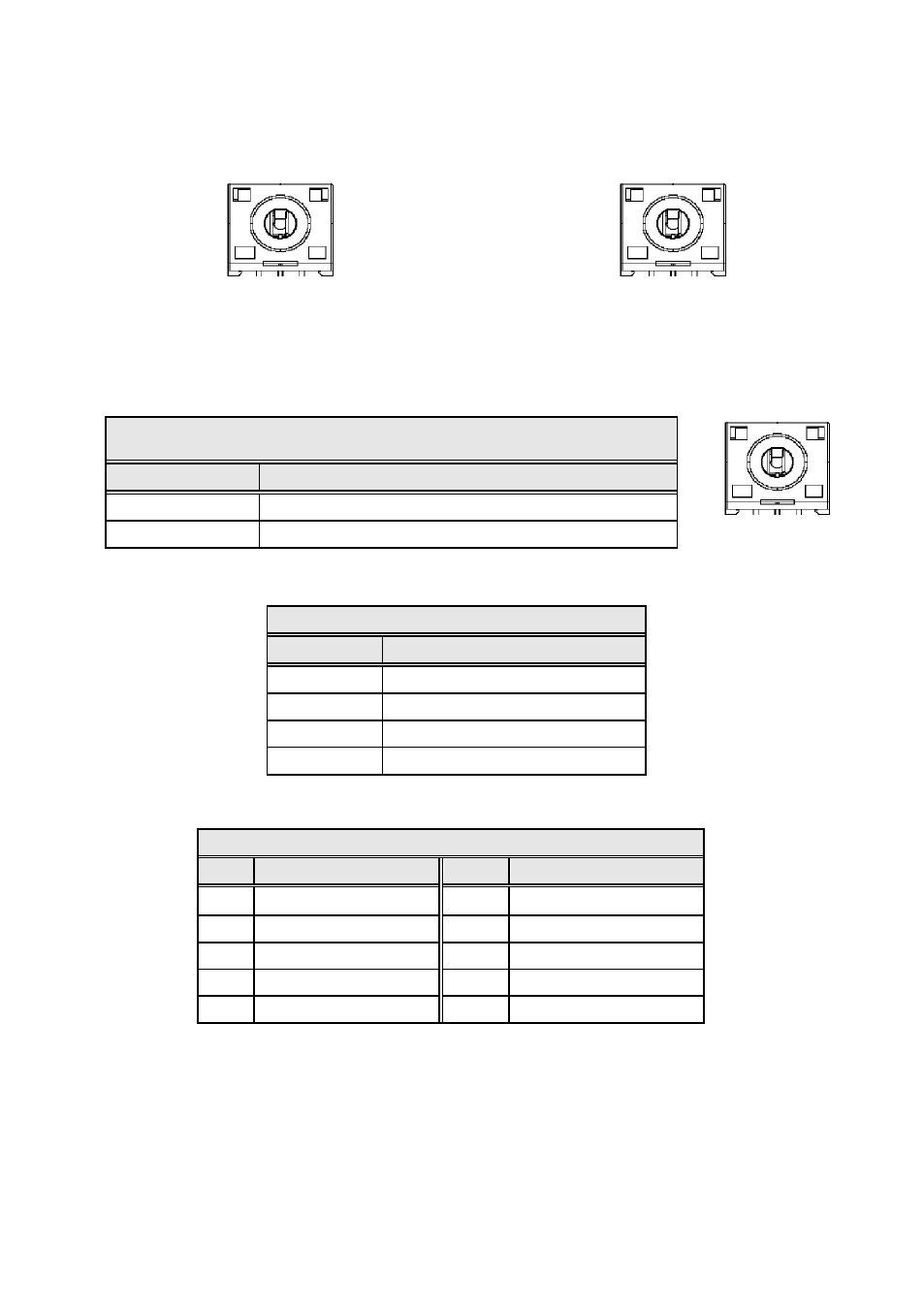

 OUT: Front out Connector
Color : Green
 REAR: Rear out Connector
Color : Black
C-SUB : Center / Subwoofer Connector
CHANNEL DESCRIPTION
LEFT Center OUT
RIGHT Subwoofer OUT Color : Orange
CDIN1 : 4-pin Header Connector
PIN NO. DESCRIPTION
1 CD IN LEFT
2 CD-GND
3 CD-GND
4 CD IN RIGHT
FRONT-PANEL: FRONT-PANEL Connector
PIN DESCRIPTION PIN DESCRIPTION
1 MIC2_LEFT 2 GND
3 MIC2_RIGHT 4 Presence#
5 LINE 2_RIGHT 6 MIC2-JD
7 Sense 8 Key
9 LINE2_LEFT 10 LINE2-JD
